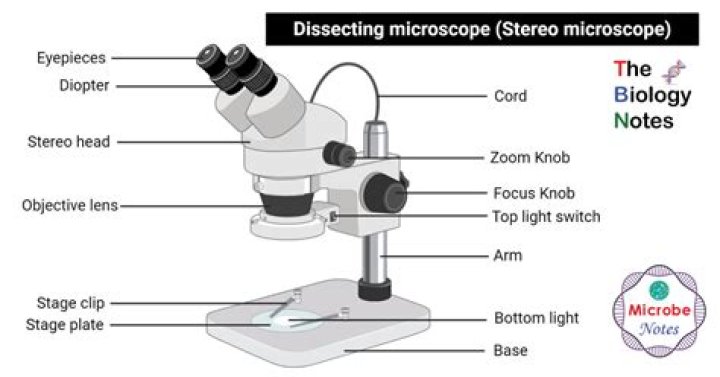

A dissecting microscope is used to view three-dimensional objects and larger specimens, with a maximum magnification of 100x. This type of microscope might be used to study external features on an object or to examine structures not easily mounted onto flat slides. Both microscopes have similar features.

Which is better dissecting or compound microscope?

Both dissecting and compound light microscopes work by capturing and redirecting light reflected and refracted from a specimen. Compound microscopes also capture light that is transmitted through a specimen. ... Microscopes with a smaller working distance have greater magnifying power than those with a longer one.

In which case would a scientist choose to use a dissecting microscope?

Further, the dissecting microscope is more useful when viewing objects with low magnification like organ tissues, whereas, the compound light microscope is used for viewing objects not visible with the naked eye like cells, or objects that need to be viewed in finer detail like blood samples.

What is the best use of the dissecting stereo microscope?

As mentioned, a dissecting (stereo or inspection microscope) is a low power microscope that is commonly used for the purposes of inspecting larger sized specimen/objects like fossils, rocks, insects, and parts of a plant, etc. Here, however, specimen mounted on slides can also be viewed using this type of microscope.

What's the function of dissecting microscope?

A dissecting microscope, also known as a stereo microscope, is used to perform dissection of a specimen or sample. It simply gives the person doing the dissection a magnified, 3-dimensional view of the specimen or sample so more fine details can be visualized.

How to use the dissecting microscope

How does a dissecting microscope work?

A stereo or a dissecting microscope uses reflected light from the object. It magnifies at a low power hence ideal for amplifying opaque objects. Since it uses light that naturally reflects from the specimen, it is helpful to examine solid or thick samples.

Why would a scientist use a dissecting microscope rather than a compound microscope?

The dissecting microscope provides a lower magnification than the compound microscope, but produces a three-dimensional image. This makes the dissecting microscope good for viewing objects that are larger than a few cells but too small to see in detail with the human eye.

What is one advantage of a dissecting microscope over a compound microscope?

The dissecting microscope is configured to allow low magnification of three-dimensional objects- objects larger or thicker than the compound microscope can accommodate. Furthermore, the two separate lenses of the binocular dissecting microscope allow one to see objects in three dimensions, i.e., in stereo.

Does a dissecting microscope invert images?

Compound microscopes invert images! ... Quite a few microscopes, including electron microscopes and digital microscopes, will not show you inverted images. Binocular and dissecting microscopes will also not show an inverted image because of their increased level of magnification.

What are three advantages of dissecting scopes compared to compound microscopes?

• Features. Dissecting microscopes have 2 eyepieces that provide binocular vision. ...
• Effects. Binocular vision allows the user to see objects in 3D. ...
• Field of view. ...
• Considerations. ...
• Lighting.

Are dissecting microscopes more powerful than compound light microscope?

Dissecting microscopes are more powerful than compound light microscopes. ... Compound light microscopes pass a beam of light through a specimen and focus the beam of light on a screen to produce an image. D.

When would you use a compound microscope?

Compound Microscopes

Typically, a compound microscope is used for viewing samples at high magnification (40 - 1000x), which is achieved by the combined effect of two sets of lenses: the ocular lens (in the eyepiece) and the objective lenses (close to the sample).

How does a dissecting microscope increase contrast?

To improve contrast (= light-dark diversity of adjacent parts), adjust the substage diaphragm. Proceed as follows to obtain optimal (Koehler) illumination and minimal damage to objectives and/or slides: Inspect the objective ring of the microscope and familiarize yourself with the various objectives.

How does the image through a dissecting microscope move?

The image moves in the opposite direction. If the slide moves to the left, the image is moved to the right. If the slide is moved to the right, the image is moved to the left. ... How does the image move when the slide is moved to the left or right in a dissecting microscope?

Is a dissecting microscope 2d or 3D?

A dissection microscope is light illuminated. The image that appears is three dimensional. It is used for dissection to get a better look at the larger specimen.

What are the disadvantages of a dissecting microscope?

They have a low magnification power hence they are not able to view images of high magnification, above 100x hence they cant be used to view tissue structures and other structures.

When would it be more appropriate to use a dissecting scope rather than a compound microscope?

When to Choose

A scientist dissecting a small insect, animal, or plant could use a dissecting microscope to get a much better understanding of the details. The working area is much larger than a compound microscope and can give you up to 150 millimeters (about 6 inches).

What is the advantage of using a compound microscope?

The advantages of using compound microscope over a simple microscope are: (i) High magnification is achieved, since it uses two lenses instead of one. (ii) It comes with its own light source. (iii) It is relatively small in size; easy to use and simple to handle.

Which statement describes the main difference between the dissecting microscope and the compound microscope?

The compound microscope uses only transmitted light, whereas the dissecting microscope uses transmitted and reflected light so there won't be shadows on the 3D subjects.

Why are stereo microscopes often referred to as dissecting microscopes quizlet?

why is a stereomicroscope also called a binocular dissecting microscope? The field of view is smaller with higher-power objectives than with low-power objectives. The smaller field of view makes it more difficult to locate objects.

Which of the following type of microscope is considered the most used microscope in the laboratory?

The light microscope.

The common light microscope used in the laboratory is called a compound microscope because it contains two types of lenses that function to magnify an object.

Does a dissecting microscope use transmitted light?

The stereo, stereoscopic or dissecting microscope is an optical microscope variant designed for low magnification observation of a sample, typically using light reflected from the surface of an object rather than transmitted through it.

What are some useful applications of a dissecting microscope quizlet?

What are some useful applications of a dissecting microscope? A dissecting microscope can view larger specimen and dissections and have a greater depth of field.

What part of the dissecting microscope is used to adjust the magnification?

Barlow lens

In addition to the objective lenses, some dissecting microscopes can accept accessories like Barlow lenses. Essentially, Barlow lenses are auxiliary lenses that can be used to increase or decrease the total magnification.
