The purpose of a toroid inductor is to achieve energy efficiency mainly when low frequencies require inductance. The insulated coil comprises wire wound on ring-shaped magnetic material providing more inductance per turn.

What is the purpose of toroid?

A toroid is a coil of insulated or enameled wire wound on a donut-shaped form made of powdered iron. A toroid is used as an inductor in electronic circuits, especially at low frequencies where comparatively large inductances are necessary.

How does a toroid inductor work?

A toroid works as an inductor, which boosts the frequency to appropriate levels. Inductors are electronic components that are passive, so that they can store energy in the form of magnetic fields. A toroid turns, and with those turns induces a higher frequency. ... A toroid coil is harder to wind than solenoids.

What is an advantage of using a ferrite core toroidal inductor?

Toroids have become popular because the amount of magnetic flux that leaks outside of the core itself is low, which makes it more efficient and it radiates less electromagnetic interference.

What is the advantage of toroidal transformers?

Low Electromagnetic Field Radiation

Typically, toroid transformers produce significantly less stray magnetic energy, which means less risk of the transformer's magnetic field interfering with other components within the system.

Inductors Explained - The basics how inductors work working principle

What are the advantages of toroid over commercial transformer?

Cost Effective: Smaller size will result in less material used which will reduce the overall cost of the transformer. Quiet: Very low mechanical hum makes toroidal transformers perfect for the low noise application.

Do toroidal transformers sound better?

toroidal beyond noise is efficiency. Since toroidal transformers are more efficient, you get higher current capability. You can use that extra current for something useful like, oh, making sound.

What is the purpose of a toroidal ferrite core?

Sizes of toroidal ferrite core

They help in transferring electric energy from one circuit to another without the use of any moving parts. The energy is transferred through a shared magnetic field that results in changes in the flow of current from one circuit to the other.

Why do radios use ferrite cores?

In the coil, a low-loss, high-magnetic-permeability ferrite core is used that is stable against thermal fluctuation. The system can receive weak radio waves and can be used for several years without battery replacement because a small but high-performance ferrite core is used.

What is the purpose of ferrite cores on cables?

Ferrite beads and cores are used in equipment design to suppress and dissipate high frequency noise levels caused by electromagnetic devices. Ferrite components are used to attenuate EMI and can be extremely effective. Of course, using properly installed and grounded shielded cables helps suppress EMIs.

What are the uses of inductor?

• Choking, blocking, attenuating, or filtering/smoothing high frequency noise in electrical circuits.
• Storing and transferring energy in power converters (dc-dc or ac-dc)

Does toroid have polarity?

At each head, there's also a tail, so no point is more N-like or S-like. Therefore a toroidal magnet has no poles. ... Toroidal electromagnets are used to make transformers, and also used as inductors in electronic circuits.

Where is solenoid used?

The main use of solenoid is as a switch for power. They are used in inductors, valves, antennas, etc. Its application is in varied fields like medical, industrial use, locking systems, automotive, etc. It is used to control a valve electrically.

What is toroid explain in detail?

1 : a surface generated by a closed plane curve rotated about a line that lies in the same plane as the curve but does not intersect it. 2 : a body whose surface has the form of a toroid.

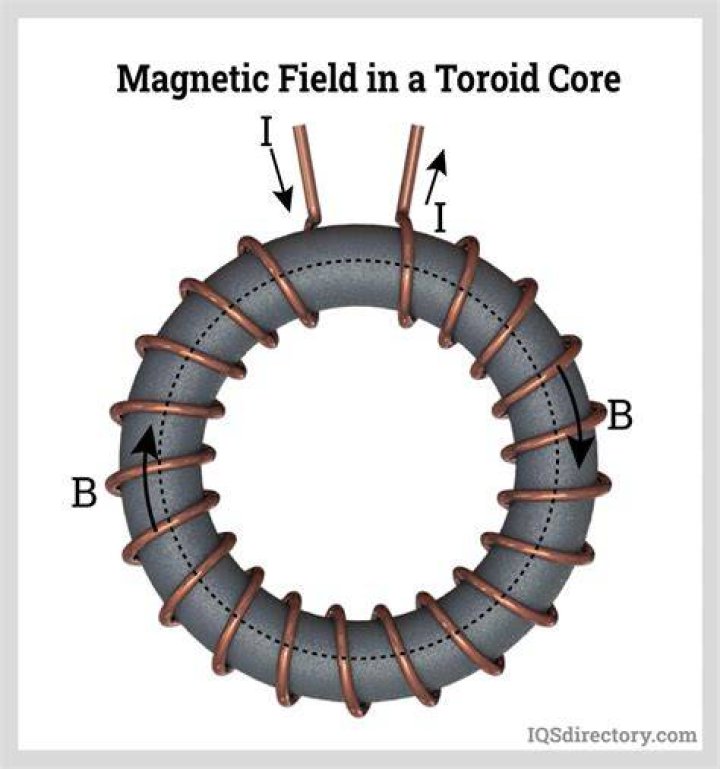

What is special about toroid magnetic field?

All of the loops of wire which make up a toroid contribute magnetic field in the same direction inside the toroid. The sense of the magnetic field is that given by the right hand rule, and a more detailed visualization of the field of each loop can be obtained by examining the field of a single current loop.

Why fried core is used in radio receivers?

In electronics, a ferrite core is a type of magnetic core made of ferrite on which the windings of electric transformers and other wound components such as inductors are formed. It is used for its properties of high magnetic permeability coupled with low electrical conductivity (which helps prevent eddy currents).

Where are ferrite core inductors?

Ferrite core inductors are used in a range of electric circuit applications including power conversion, broadband, and interference suppression.

Why ferrite is suitable for high-frequency?

The ferrites are crystals having small electric conductivity compared to ferromagnetic materials. Thus they are useful in high-frequency devices because of the absence of significant eddy current losses.

What is toroidal core inductor?

Toroidal Core Inductor is an insulated coil that is wire wound on a ring-shaped form which is made of powdered iron, ferrite or another material.

Why ferrites are advantageous for use as transformer cores?

A major advantage to a ferrite core is its high resistance to high current. It also provides low eddy current losses over many frequencies. ... In fact, the high magnetic permeability along with with a low electrical conductivity of ferrites helps in the prevention of eddy currents.

Why are toroidal transformers so expensive?

Like all transformers, the core is laminated, or made of many layers. ... Toroids are already more expensive to make compared to EI-frame transformers because each toroid has to be wound one-at-a-time while EI-frame transformers can be made in batches on highly automated winding machinery.

What are the advantages and disadvantages of toroidal transformers?

• Small and light. Toroidal transformers have an ideal shape that requires minimum material. ...
• Low stray magnetic field. Toroidal transformers emit very low radiated electro-magnetic fields as compared to other transformers. ...
• Low noise. ...
• Electrical efficiency. ...
• Easy mounting.

What is an EI transformer?

EI transformer is a traditional transformer. The core of EI transformer is combined by lamination E and I, so it is called EI transformer or laminated transformer. ... It is usually used as power transformer at 50-60Hz. In audio applications, EI transformer is commonly used as tube power transformer and output transformer.

Is toroidal transformer good?

Toroidal transformers are favored as long-term solutions for multiple reasons, due to their high efficiency. The small size and light weight are major factors that add to their high quality performance. They are about half the size and weight of more traditional toroids, making them ideal for compact power supplies.

How do you shield a toroidal transformer?

Re: Shielding a Toroidal Transformer - Which is the trick ? A more typical method is to use a plastic or hard rubber plate on the top of the transformer, with a bolt through the plate to hold the toroid to the chassis.
