Statistical multiplexing allows the bandwidth to be divided arbitrarily among a variable number of channels (while the number of channels and the channel data rate are fixed in TDM). Statistical multiplexing ensures that slots will not be wasted (whereas TDM can waste slots).

Why is statistical TDM more efficient than a synchronous TDM?

"A statistical time division multiplexer is more efficient than a synchronous time division multiplexer because it allocates time slots dynamically on demand and does not dedicate channel capacity to inactive low speed lines."

What are the advantages of TDM?

• Code utilisation of communication channel.
• TDM circuitry is not very complex.
• Communication link of low capacity is used.
• The problem of crosstalk is not severe.
• Full available channel bandwidth can be utilized for each channel.
• intermodulation distortion is absent.

What is multiplexing why it is necessary explain synchronous time division multiplexing and statistical time division multiplexing?

In synchronous TDM, each input has a reserved slot in the output frame. This can be inefficient if some input lines have no data to send. In statistical time-division multiplexing, slots are dynamically allocated to improve bandwidth efficiency.

Which of the following are the advantage of time division multiplexing?

• Time division multiplexing systems are more flexible than frequency division multiplexing.
• Time division multiplexing circuitry is not complex.
• Problem of cross talk is not severe.
• Full available channel bandwidth can be utilized for each channel.

Statistical Time Division Multiplexing

What is the primary advantage of TDM over FDM?

TDM provides greater flexibility and efficiency, by dynamically allocating more time periods to the signals that need more of the bandwidth, while reducing the time periods to those signals that do not need it. FDM lacks this type of flexibility, as it cannot dynamically change the width of the allocated frequency.

What is the application of TDM?

The main application of TDM(Time Division Multiplexing) is to transmit or receive different data and signal using a common single transmission line. TDM is used to transmit and receive a huge amount of independent data over a single line.

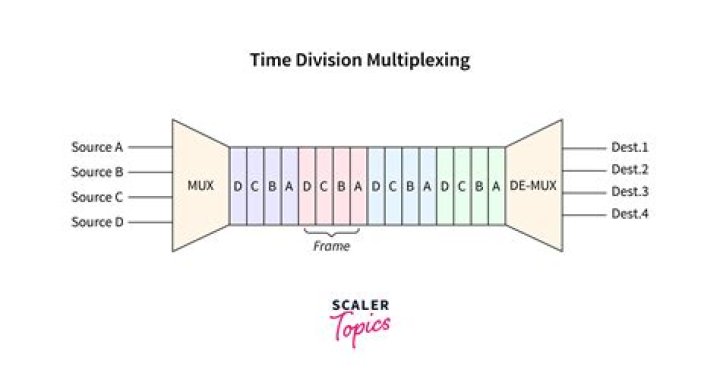

What is multiplexing explain TDM?

Time-division multiplexing (TDM) is a method of transmitting and receiving independent signals over a common signal path by means of synchronized switches at each end of the transmission line so that each signal appears on the line only a fraction of time in an alternating pattern.

What is the major problem of asynchronous TDM?

The need for addressing makes asynchronous TDM inefficient for bit or byte interleaving. Imagine bit interleaving with each bit carrying an address: one bit of data plus, say, three bits of address. All of a sudden it takes four bits to transport one bit of data.

Why is multiplexing so cost effective?

The cost effectiveness of multiplexing is due to economies of scale possible with facilities that have large transmission capacities. ... It enables the interleaving of transmission signals in time and is possible when the data rate of the medium exceeds the data rate of the signals to be transmitted.

What is the main advantage of TDM over WDM?

TDM provides greater flexibility and efficiency, by dynamically allocating more time periods to the signals that need more of the bandwidth, while reducing the time periods to those signals that do not need it. WDM lacks this type of flexibility, as it cannot dynamically change the width of the allocated wavelength.

What does TDM mean?

Time-division multiplexing (TDM) is a method of putting multiple data streams in a single signal by separating the signal into many segments, each having a very short duration.

What is your understanding about FDM and TDM?

TDM (Time Division Multiplexing) and FDM (Frequency Division Multiplexing) are the two techniques of multiplexing. The common difference between TDM and FDM is that TDM share the timescale for the different signals; Whereas FDM shares the frequency scale for the different signals.

What is the biggest disadvantage of the TDM FDM channel partitioning protocols?

Disadvantages: The frequencies are assigned statically to device. If there is no data to transmit, then bandwidth is wasted. FDM uses analog signals to transmit which lead to noise interruption.

How is TDM superior to FDM?

TDM is efficient. FDM is quiet inefficient. Time is shared in TDM. Frequency is shared in FDM.

Is TDM is less immune to FDM?

TDM is less immune to cross-talk in channel than FDM. ... Explanation: In an ideal TDM system, the cross correlation between two users of the system is 0.

Why Guard bands are used in FDM?

Why guard bands are used in FDM? Ans: In FDM, a number of signals are sent simultaneously on the same me allocating separate frequency band or channel to each signal. Guard bands are used to avoid interference between two successive channels.

Why FDM is used in analog signals?

FDM is used to multiplex multiple analog signals. FDM is applied when the bandwidth of the link is greater than the combined bandwidth of signals to be transmitted. ... FDM uses a carrier signal at a discrete frequency for each data stream and then combines many modulated signals.

Why TDM is used in digital signals?

Multiplexed digital transmission

TDM allows transmitting and receiving telephone switches to create channels (tributaries) within a transmission stream. A standard DS0 voice signal has a data bit rate of 64 kbit/s. ... Higher order multiplexing is accomplished by multiplexing the standard TDM frames.

What are advantages of CDMA?

One of the main advantages of CDMA is that dropouts occur only when the phone is at least twice as far from the base station. Thus it is used in the rural areas where GSM cannot cover. Another advantage is its capacity; it has a very high spectral capacity that it can accommodate more users per MHz of bandwidth.

What is the disadvantage of using synchronous time division multiplexing?

The most significant disadvantage of synchronous time division multiplexing is that the full capacity of a link may not be utilized. If a connected device is not transmitting data, its assigned time slots will be empty and a portion of the connection's bandwidth will be wasted.

How does FDM avoid interference?

6) How is interference avoided by using FDM? Interference is avoided under frequency division multiplexing by the use of guard bands, which are unused portions of the frequency spectrum between subchannels. ... 8) If a signal has a fundamental frequency of 1000 Hz, then what's its period? Period = 1/1000 = 0.001 s = 1 ms.
