Because the cooling rate is so sudden, carbon does not have enough time for diffusion. Therefore, the martensite phase consists of a metastable iron phase oversaturated in carbon. Since the more carbon a steel has, the harder and more brittle it is, a martensitic steel is very hard and brittle.

Why is martensite the hardest?

Martensite is a supersaturated solution of carbon in iron. Due to the high lattice distortion, martensite has high residual stresses. The high lattice distortion induces high hardness and strength to the steel.

What makes martensite hard and strong?

Untempered martensite is a strong, hard, brittle material. The stronger and harder it is, the more brittle it is. The strength and hardness is a due to elastic strain within the martensite, which is a result of too many carbon atoms being in the spaces between the iron atoms in the martensite.

What affects the hardness of martensite?

The strength of the matrix is the main contributor to the overall hardness, followed by precipitation, which effects increase with reducing the austenite volume fraction.

Is martensite the hardest form of steel?

1) Martensite is the hardest and most brittle microstructure obtainable in a given steel. 2) Martensite hardness of the steel is a function of the carbon content in that steel. ... 5) Reheating as quenched Martensite to a temperature just below the AC1 results in the best combinations of strength and toughness.

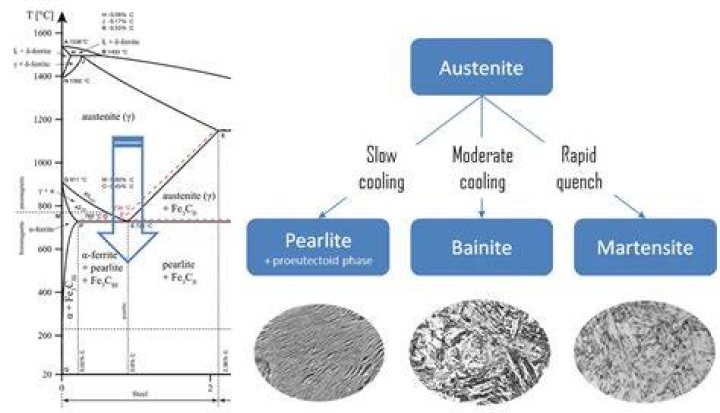

Quenching and Martensite

Why is martensite so strong?

Untempered martensite is a strong, hard, brittle material. The stronger and harder it is, the more brittle it is. The strength and hardness is a due to elastic strain within the martensite, which is a result of too many carbon atoms being in the spaces between the iron atoms in the martensite.

What is the hardness of martensite?

Martensite is typically hard (800–900 HV maximum) and brittle. Figure 25 shows that hardness varies with C content and is strongly related to distortions caused by the C atom in the body-centered tetragonal structure.

What factors affect the strength and hardness of martensite?

Carbon atoms segregated in the structure, prior austenite grain size, dislocation density, different precipitates, and retained austenite together contribute to the superior strength and hardness of martensite, with carbon responsible for the main contribution [1][2][3][4][5][6] [7] [8].

Why is martensite metastable?

Martensite is a metastable interstitial solid solution of carbon in iron. ... Because it is not thermodynamically stable, martinsite can transform to pearlite or bainite if it is reheated to temperatures at which rapid carbon diffusion can occur. This process is used to control the hardness of heat treated steel samples.

How can martensite be reduced?

Since chemical processes (the attainment of equilibrium) accelerate at higher temperature, martensite is easily destroyed by the application of heat. This process is called tempering.

Why does martensite formation cause the hardening of steel?

The martensite transformation changes the mechanical properties of steel considerably. The hardness as well as the flow stress rises with the carbon content until a certain limit of retained austenite remains. The high strength arises primarily from the solid solution hardening and the high dislocation/twin density.

What is used to reduce brittleness in hardened steels?

Tempering is a heat treatment technique applied to ferrous alloys, such as steel or cast iron, to achieve greater toughness by decreasing the hardness of the alloy. The reduction in hardness is usually accompanied by an increase in ductility, thereby decreasing the brittleness of the metal.

Why is steel hardened?

Hardening and tempering develops the optimum combination of hardness, strength and toughness in an engineering steel and offers the component designer a route to savings in weight and material. Components can be machined or formed in a soft state and then hardened and tempered to a high level of mechanical properties.

What is the hardness value of martensite in RC?

The highest hardness of a pearlitic steel is 400 Brinell whereas martensite can be as high as 700 Brinell. In terms of Rockwell hardness it is about RC 65. RC abbreviation means Rockwell Hardness measured on the C scale.

What happens when you reheat martensite?

On reheating as-quenched martensite, the tempering takes place in four distinct but overlapping stages: up to 250°C, precipitation of α-iron carbide; partial loss of tetragonality in martensite. ... above 350°C, cementite coarsens and spheroidizes; recrystallization of ferrite.

What are two types of martensite?

Since the precipitation or the decomposition of martensite takes place in two steps, it is necessary to distinguish two kinds of martensite, α and β, the former being less stable, and hence more easily attacked by acid, than the latter.

Does increasing carbon content increase toughness?

There is increase in hardness values with increase in carbon content, while the toughness decreased. This is also the trend for the untreated samples.

How martensite can increase the strength of a material?

The process is performed by first austenitizing and then quenching to a temperature below the martensite start temperature to form a mixed austenite-martensite microstructure. ... Tempering can also change the deformation behavior and strength of the microconstituents, especially the martensite.

What is the difference between martensite and austenite?

Martensitic stainless steels can be heat treated and hardened, but have reduced chemical resistance when compared to austenitic stainless steels. Martensitic stainless steel is often used when hardness is critical, such is in knives, where surface hardness creates a sharper blade.

Can martensite turn into austenite?

There, the martensite-to-austenite formation was found to be complete at 1223 K (950 °C). Christien et al. [33] also recently observed an A _c3 temperature of 1223 K (950 °C) for a 17-4 PH martensitic stainless steel using neutron diffraction measurements, where 5 pct of martensite was still present at 1203 K (930 °C).

Is martensite FCC or BCC?

The two-step theory. The two most usual martensitic transformations are fcc–hcp in Co, FeMn and some FeCrNi alloys, and bcc–hcp in Zr and Ti alloys [22], [23], [25].

What causes quench cracks?

The results show that the main cause of quenching cracks is a too high austenitizing temperature caused by poor temperature control. A temperature that is too high leads to excessive austenite grain growth, distinctive grain boundaries with coarser martensite and the presence of retained austenite.

Is martensite a phase or microstructure?

By this definition, martensite is definitely a phase. Bainite would fail because it is a mixture of ferrite and carbide, i.e. of two phases. The same is true for pearlite. So bainite and pearlite would be microstructures, but martensite would be a phase.

What is plate martensite?

Plate martensite is formed when the carbon content is greater at approximately 0.6% C. When the carbon content is between 0.6 and 1.0% C, a mixture of lath and plate martensite may be observed microscopically (37). From: Comprehensive Materials Processing, 2014.

Why martensite is harder than pearlite?

Like martensite, pearlite is created by quenching steel, usually with water or oil. However, the key difference between it and martensite lies in the rate at which it is cooled. Pearlite is cooled more slowly than its martensite counterpart, making it softer and easier to bend.
