LDP over RSVP-TE allows tunneling of user packets using an LDP LSP inside an RSVP LSP. The main application of this feature is for deployment of MPLS based services, for example, VPRN, VLL, and VPLS services, in large scale networks across multiple IGP areas without requiring full mesh of RSVP LSPs between PE routers.

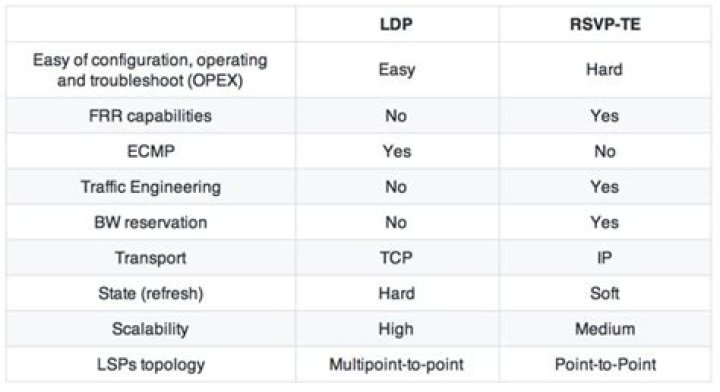

What is the difference between LDP and RSVP-TE?

2 commonly used terms in MPLS are LDP and RSVP-TE. While the former relates to easy provisioning in MPLS setup, the latter i.e. RSVP-TE is related to guarantee bandwidth for traffic communication. LDP setups LSPs based on routing data, whereas RSVP setups additional traffic engineered LSPs.

What are two functions of LDP?

LDP is used to build and maintain LSP databases that are used to forward traffic through MPLS networks. LDP can be used to distribute the inner label (VC/VPN/service label) and outer label (path label) in MPLS. For inner label distribution, targeted LDP (tLDP) is used.

How does LDP work?

LDP is a protocol that automatically generates and exchanges labels between routers. Each router will locally generate labels for its prefixes and will then advertise the label values to its neighbors. ... Like many other protocols, LDP first establishes a neighbor adjacency before it exchanges label information.

Does LDP support traffic engineering?

Since LDP does not have traffic engineering (TE) and fast reroute (FRR) convergence below 50 ms, it can now benefit from these two RSVP-TE features. ... Any router in a given area can be a stitching point for LDP over RSVP.

MPLS Evolution - IP Routing, LDP, RSVP-TE, MPLS-TP, to Segment Routing

Is LDP bidirectional?

An LDP session is created between LDP peers. A single LDP session allows each peer to learn the other's label mappings (LDP is bi-directional) and to exchange label binding information.

What is LDP and LSP?

The Label Distribution Protocol (LDP) is used to establish MPLS transport LSPs when traffic engineering is not required. It establishes LSPs that follow the existing IP routing table, and is particularly well suited for establishing a full mesh of LSPs between all of the routers on the network.

What is the meaning of LDP?

Landed Duty Paid (LDP), a shipping term indicating the seller will import to country of destination and pay duty on goods.

How many LDP sessions are established?

Therefore, for each interface that has a per-interface label space, one LDP session must exist between the pair of routers.

Does LDP use TCP?

Hello messages are targeted at all routers reachable through an interface. LDP uses well-known (UDP and TCP) port number 646. The source address used for an LDP session can be set by adding the transport address TLV to the hello message.

What is LDP routing?

Label Distribution Protocol (LDP) is a protocol used to distribute labels in non-traffic-engineered applications. LDP allows routers to establish label switched paths (LSPs) through a network by mapping network-layer routing information directly to data link layer-switched paths.

What is label space in LDP?

Label Space and LDP Identifier

An LDP identifier identifies a label space used by a specified LSR. An LDP identifier consists of 6 bytes including a 4-byte LSR ID and a 2-byte label space. An LDP identifier is in the format of <LSR ID>:<Label space ID>.

What is the LDP port?

LDP and tLDP discovery runs on UDP port 646 and the session is built on TCP port 646. During the discovery phase hello packets are sent on UDP port 646 to the 'all routers on this subnet' group multicast address (224.0. 0.2). However, tLDP unicasts the hello packets to the targeted neighbor's address.

What is RSVP in MPLS TE?

RSVP-TE is used to establish MPLS transport LSPs when there are traffic engineering requirements. It is mainly used to provide QoS and load balancing across the network core, and includes the ability to control all-optical networks.

What is L2VPN and L3VPN?

IP/MPLS or L3VPN is a technology where the traffic is carried over pseudowires (PW) over MPLS Label Switch Paths (LSPs) tunnels. The forwarding is L3-based. ... In contrast to L3VPN, Ethernet services are built on the concept of Ethernet based forwarding, hence can be referred to as L2VPN.

What is targeted LDP?

This is an LDP session between LSRs that are not directly connected. ... Examples in which the targeted LDP session is needed are AToM networks and TE tunnels in an MPLS VPN network. In the case of AToM, an LDP session must exist between each pair of PE routers.

Which of two LSRs is responsible for the LDP session initiation?

After receiving the Hello messages carrying transport addresses, the two LSRs use the transport addresses to establish an LDP session. The LSR with the larger transport address serves as the active peer and initiates a TCP connection.

Which of the following LDP messages are used in successful establishment of LDP session?

After neighbor discovery, LDP transport session establishment takes place using TCP. LDP maintains this session by sending/receiving keepalive messages and using a hold down timer.

What does LDP stand for in education?

Language processing disorders (LDP) in school-age children and pre-school precursors: What are the characteristics?

What is LDP in mortgage?

Yes, lenders must examine HUD's Limited Denial of Participation List (LDP) and the General Services Administration's (GSA) Excluded Parties List System (EPLS) to determine if the name of any party to the transaction including, but not limited to, the seller, real estate agent, or builder, appears on either list.

What is BGP Unicast?

The BGP Labeled Unicast (BGP-LU) Multiprotocol extension is used to distribute a MPLS label that is mapped to a particular route. It can be used to advertise a MPLS transport path between IGP regions and Autonomous Systems.

What is LDP interface?

Label Distribution Protocol (LDP) is a protocol used to distribute labels in non-traffic-engineered applications. LDP allows routers to establish label switched paths (LSPs) through a network by mapping network-layer routing information directly to data link layer-switched paths.

What is MPLS TE?

MPLS Traffic Engineering (MPLS TE) is a growing implementation in today's service provider networks. ... With MPLS, TE capabilities are integrated into Layer 3, which can be implemented for efficient bandwidth utilization between routers in the SP network.

What is the difference between the FIB and the LFIB?

The LFIB is essentially the label routing table. Labels are shared through distribution protocols, but the information is built based on the IP routing table information. ... This information is stored in the Forwarding Information Base (FIB) and Label Forwarding Information Base (LFIB).
