Why galvanic isolation? In EVs and HEVs, when the grounds of two distinct circuits are at different electrical potentials, galvanic isolation is necessary to prevent the triggering of dangerous ground loops, which can generate noise that could compromise the safety of the vehicle.

Why do we need galvanic isolation?

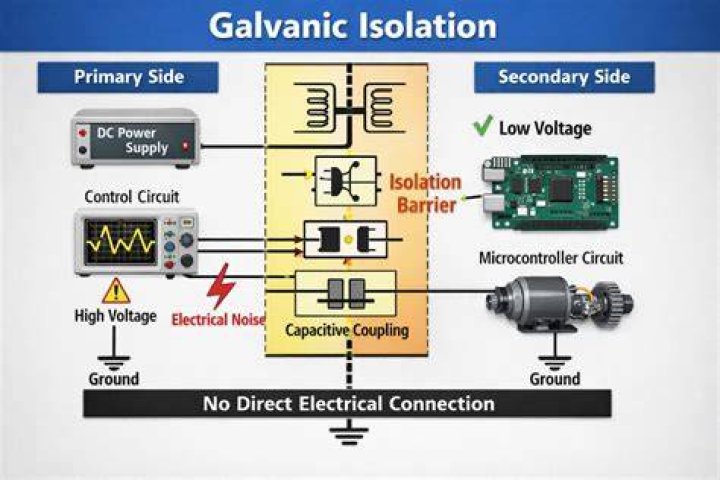

Galvanic isolation separates the input and output supplies to a device so that energy flows through a field rather than via electrical connections. It enables power transfer between two circuits that must not be connected.

What is galvanic isolation?

Galvanic isolation is a design technique that separates electrical circuits to eliminate stray currents. Signals can pass between galvanically isolated circuits, but stray currents, such as differences in ground potential or currents induced by AC power, are blocked.

What is the purpose of an isolation device?

Isolation transformers provide galvanic isolation; no conductive path is present between source and load. This isolation is used to protect against electric shock, to suppress electrical noise in sensitive devices, or to transfer power between two circuits which must not be connected.

What is galvanic isolation in inverter?

Galvanic separation (or isolation) refers to the fact that the output power circuit is electrically and physically isolated from the input power circuit. Electrical isolation is accomplished using an isolation transformer.

TI Precision Labs - Isolation: What is Galvanic Isolation?

How galvanic isolation is done?

1. Transformer. Transformers couple by magnetic flux. ...
2. Opto-isolator. Opto-isolators transmit information by light waves. ...
3. Capacitor. Capacitors allow alternating current (AC) to flow, but block direct current; they couple ac signals between circuits at different direct voltages. ...
4. Hall effect. ...
5. Magnetoresistance.

Can galvanic isolation?

Galvanically Isolated CAN Bus Transceivers Protect Networks Against Destructive Energy. High noise levels on a CAN bus network have the potential to destroy CAN bus transceivers. ... Protecting a network against this destructive energy requires the galvanic isolation of the CAN bus system from other local node circuitry.

What is the advantage of isolation transformer?

Reduces Surges

Another advantage of isolation transformers is that they reduce power surges. Electrical equipment can run smoothly without the risk of power surges because the DC signals from a power source are isolated. This means that equipment can function at a high level even if there is a power malfunction.

Why do you need isolation between power circuit and control circuit?

a PWM scheme to control output voltage and current. ... usually connected to dangerous voltages—typically 220 V/380 V ac— and the rectified dc voltage can be as high as 540 V, while the control circuit is usually referenced to a safe ground. Thus, isolation is needed between power and control circuits.

Why do we need isolation between power circuit and control circuit?

By adopting galvanic isolation between power and control circuits, the noise in control circuits can be reduced. ... Thus, isolation is needed between power and control circuits. ▶ Device interconnection—power supply devices are often needed to. be connected with other controllers by fieldbuses.

How do you test for galvanic isolation?

Put one lead on one side of the isolator and the other lead on the other side. As the capacitor starts to conduct current the reading should rise to approximately 0.9 volts. Remove the test leads, short the two wires of the isolator together to discharge the capacitor and repeat the test with the test leads reversed.

What is galvanic contact?

ADVERTISEMENT. English • ‎español • ‎中文 An actual electrical contact with the ground, as opposed to inducing electric current flow by induction. Called an ohmic contact if linear and rectification is not involved.

Where is galvanic isolation required?

Isolation prevents current from flowing from high voltage potential elements to ground through a person's body. Environments where human operators are present and equipment operates under a high voltage or is exposed to high voltage, including the risk of a potential lightning strike, requires galvanic protection.

What is meaning of galvanic?

1a : of, relating to, or producing a direct current of electricity a galvanic cell. b : caused by galvanism —used especially of the corrosion of metallic objects as a result of electrolytic action …

Why electrical isolation is required?

Isolation has the purpose of protecting against electrical hazards electric shock, burn and ballistics - the effects of arc flash. ... They provide sufficient physical separation between, say, the equipment's electrical circuit and its power supply and also give a positive indication of this separation.

What is the need for isolated power distribution system?

The isolation provides a barrier across which dangerous voltages cannot pass in the event of a fault or component failure. This barrier ensures that the electrical equipment is safe by preventing electric shock and fire hazards.

Is an isolation transformer necessary?

Electrical isolation is necessary to protect circuits, equipment, and people from shocks and short circuits, as well as to make accurate measurements. Isolation transformers are one way to go. Electrical isolation is necessary to protect circuits, equipment, and people from shocks and short circuits.

When would you use an isolation transformer?

Isolation transformers are used for power supply of devices that are not at ground potential. Isolation transformers are used in electronics testing and servicing to provide safety, without which touching a live part of the circuit with hazardous voltage can cause severe damage.

What is the difference between normal transformer and isolation transformer?

Isolation transformer refers to the primary and secondary coils are separated on the DC circuit. Normal transformer refers to the transformer used for machine tools, equipment control lines, generally turning high voltage into low voltage.

Can isolated?

ADI isolated controller area network (CAN) transceivers provide the differential physical layer interface between the data layer link, hardware protocol (for example, embedded in some of ADI's Blackfin^® processors), and the physical wiring of the CAN bus.

Which of the following provides galvanic isolation?

Detailed Solution. In Autotransformer, one single winding is used as primary winding as well as secondary winding i.e. both windings are electrically connected. Hence it can be stated as galvanic isolation is provided by Auto-transformer as shown in the figure.

What is galvanic effect?

Galvanic corrosion, also known as bimetallic corrosion, is an electrochemical process whereby one metal corrodes in preference to another metal that it is in contact with through an electrolyte. Galvanic corrosion occurs when two dissimilar metals are immersed in a conductive solution and are electrically connected.

Does galvanic corrosion require oxygen?

In the absence of dissolved oxygen or hydrogen ions to maintain the cathode process, galvanic corrosion does not occur. It is possible to combine different metals such as copper and steel in closed hot-water systems with little corrosion. ... For example, aluminum added to brass will increase its corrosion resistance.

Does galvanic corrosion require water?

Requirements for Galvanic Corrosion: In order for galvanic corrosion to occur, three elements are required. A conductive electrolyte solution (e.g. water) must connect the two metals on a regular basis. The electrolyte solution creates a “conductive path”.
