The FWHM number is very important if you plan to use the structure as a sensor, specifically, to measure nearby refractive index changes. The thinner the peak the better signal to noise ratio you can achieve, allowing you to detect smaller changes.

What information can we get from the FWHM?

FWHM (full width at half maximum) can inform us about size of cristallities. It is addition to the above answer. FWHM (2θ) =(Κ λ / L cosθ); it is readily identify that the materials nature i.e crystalline or amorphous.

What does Full Width Half Max tell you?

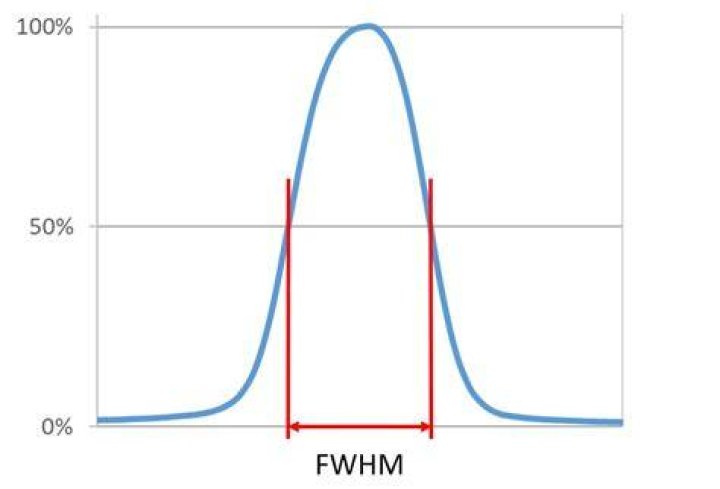

The full width at half maximum (FWHM) is the width of a line shape at half of its maximum amplitude, as shown below: A closely related quantity is the half width at half maximum (HWHM) or the Resolving Resolution and it is half of the FWHM. For Gaussian line shapes, the FWHM is about 2.4 standard deviations.

Why is the FWHM of XRD peaks important?

The full width at half maximum (FWHM) of XRD profiles is used to characterize different material properties and surface integrity features. ... The correlation between FWHM of XRD peak and residual stress appears to be nonlinear due to simultaneous change in other aspects of surface integrity.

What does FWHM tell you in Raman Spectroscopy?

Finally, full width at half maximum (FWHM) is a reflection of the structural distribution. Thus, for exactly the same molecule, crystalline material shows sharper Raman line than the amorphous material.

Proving The Full Width At Half Maximum (FWHM) of a Gaussian is 2.3548σ

Is FWHM the same as standard deviation?

Relation between the standard deviation a and the full width at half-maximum (FWHM). are the mean and standard deviation of the original distribution. It is a trivial matter then to verify that z is distributed as a reduced Gaussian. in a Gaussian distribution.

How do I get FWHM?

FWHM can be determined as the distance between the curve points at the peak half maximum level. On a data graph, draw a vertical line from the peak maximum to the baseline. Measure the length of this line and divide it by 2 to find the center of the line.

Why does peak shift occur in XRD?

The shift in the peak during the XRD analysis is due to (i) due to linkage between host and doped particle (ii) due to change in the size of the host particle (iii) change in the binding energy and due to change in mechanical properties.

How does XRD determine crystal structure?

by measuring the reciprocal lattice space (k-Space) by XRD diffraction technique if you take Fourier transform of that it will give you bravais lattice. this bravais lattice will give you the information about crystal structure.

How does XRD calculate crystallite size?

1. STEP1: Open the XRD graph of the material, which is obtained from the instrument.
2. STEP2: Now zoom on the area for which you want to calculate the crystallite size and note down the angle at which peak is shown and peak Full Width at Half Maximum (FWHM).

What is FWHM in astronomy?

The Full Width Half Maximum (FWHM) is a measure of the quality of an astronomical image based on how much the telescope and atmosphere have smeared a point source in an image over several pixels in the CCD. When performing photometry, a value for the aperture has to be selected.

How do you find the resolution of FWHM?

The bar phantom resolution can be calculated by dividing the FWHM by 1.75. This means a camera with a FWHM of 4.0 could resolve bars that are approximately 2.3mm wide, with 2.3mm spacing.

Which among these has the highest value of FWHM?

Answer: Option b) plot a. Explanation: The FWHM or the full wave half maximum is given as width value in the spectroscopy curve which are having different wavelength which here is the width of an object in certain picture or image.

What is FWHM used for in XRD?

The full width at half maximum (FWHM) of XRD profiles is used to characterize different material properties and surface integrity features.

What is smoothing fMRI?

Spatial smoothing means that data points are averaged with their neighbours. ... The standard procedure of spatial smoothing is employed by convolving the fMRI signal with a Gaussian function of a specific width. This so called Gaussian kernel is a kernel with the shape of a normal distribution curve.

What is FWHM in nuclear medicine?

An important measurement to assess the efficiency of the scintillation counting equipment in a Nuclear Medicine department is the Full Width at Half Maximum (FWHM), which should typically be less than 10%.

Why XRD is used?

XRD analysis, by way of the study of the crystal structure, is used to identify the crystalline phases present in a material and thereby reveal chemical composition information. ... X-ray diffraction is useful for evaluating minerals, polymers, corrosion products, and unknown materials.

Why is Bragg's law important?

The Bragg law is useful for measuring wavelengths and for determining the lattice spacings of crystals. To measure a particular wavelength, the radiation beam and the detector are both set at some arbitrary angle θ. ... This is the principal way to make precise energy measurements of X rays and low-energy gamma rays.

What is XRD principle?

Fundamental Principles of X-ray Powder Diffraction (XRD)

X-ray diffraction is based on constructive interference of monochromatic X-rays and a crystalline sample. These X-rays are generated by a cathode ray tube, filtered to produce monochromatic radiation, collimated to concentrate, and directed toward the sample.

Why does peak shift occur?

“Peak shift” is a behavioral response bias arising from discrimination learning in which animals display a directional, but limited, preference for or avoidance of unusual stimuli. Its hypothesized evolutionary relevance has been primarily in the realm of aposematic coloration and limited sexual dimorphism.

What do XRD peaks mean?

Peak intensity tells about the position of atoms within a lattice structure. and peak width tells about crystallite size and lattice strain.

What is the reason of peak shifting in XRD towards higher angle side after the sample has been irradiated?

Usually the peak shifting to higher angles is attributed to the stress and defects relaxation in a coating after the annealing more than its deposition temperature. Defects are introduced in deposition of species so the stress also introduced.

How do you find peak width?

2 The peak width can be measured in different ways. The most preferred is measurement of the peak width at half - height. An estimation of peak width can be made: w = 1.7 × w1/2. height or at ½ peak height.
