The capacitor is used not only to start the fan but also to make it spin. In simple words, the capacitor creates a magnetic flux (torque) which makes the fan rotate. Generally, two capacitors in parallel series are used in the ceiling fan.

Does condenser increase fan speed?

When you increase the capacitance, the fan motor's voltage goes up, but the capacitor's goes down. The fan's speed goes up. To increase the fan speed, you need to increase theCapacitor value.

What is the use of condenser in motor?

The purpose of the capacitor is to create a poly-phase power supply from a single-phase power supply. With a poly-phase supply, the motor is able to: 1. Set the rotation direction.

How does a condenser fan motor work?

How Does it Work? While the condenser unit works to cool the air conditioner while it's running, the fan motor functions to blow the air through the condenser coils to convert hot, refrigerant gas into a cool liquid. As the fan blades turn, your air conditioning unit will continue to blow cool air in the entire house.

Does fan have condenser?

It is required to have one capacitor installed on each single phase motor ( Example: Fan ); to generate net positive magnetic flux.

Why capacitor used in ceiling fan and how to select capacitor size | why capacitor use in motor urdu

What is fan condenser?

A condenser fan motor is part of your HVAC system that is located within the condensing unit. This unit also consists of the compressor and condenser coil. ... The condenser fan motor is what runs to turn the fan blades and blow air across the condenser coil, where it cools the refrigerant from a hot gas into a liquid.

Is condenser a capacitor?

Condenser is an older term used for capacitor. To be precise, the term was stopped from using from the year 1926 when the term capacitor was more commonly used. From an electrical perspective, both capacitors and condensers are the same devices.

Why capacitor is called condenser?

The capacitor was initially known as a condenser. The term “condensor” was associated with it because it was supposed to condense electric charge. The charge it could hold at a rated voltage was known as “capacity.” This term was in use till about 1960s.

How does a condenser work?

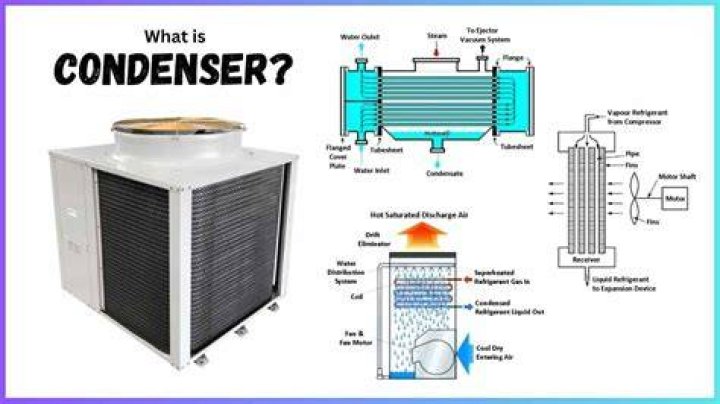

A condenser is designed to transfer heat from a working fluid (e.g. water in a steam power plant) to a secondary fluid or the surrounding air. The condenser relies on the efficient heat transfer that occurs during phase changes, in this case during the condensation of a vapor into a liquid.

What is the primary function of the condenser?

The function of the condenser in a refrigeration system is to transfer heat from the refrigerant to another medium, such as air and/or water. By rejecting heat, the gaseous refrigerant condenses to liquid inside the condenser. The major types of condensers used are (1) water-cooled, (2) air-cooled, and (3) evaporative.

Why capacitor is used in DC motor?

Capacitor reduces the spikes in the motor current and reduces the magnetic interference. (2) When DC motors are driven with digital signals then inductor or capacitor always used with the DC motor. ... In this case, also capacitor is used to reduce the noise and interference.

Can a motor run without a capacitor?

Answer: There are three common types of single-phase motors named capacitor motor, shaded pole motor and split phase motors. Shaded pole and split phase single-phase motors do not require a capacitor to run.

How capacitor is used in motor?

Some single-phase AC electric motors require a "run capacitor" to energize the second-phase winding (auxiliary coil) to create a rotating magnetic field while the motor is running. Start capacitors briefly increase motor starting torque and allow a motor to be cycled on and off rapidly.

How do I increase fan speed?

1. Eliminate vibration in the blades. ...
2. Lubricate the fan's moving parts. ...
3. Turn on the fan and see if basic cleaning has increased fan speed to its original settings. ...
4. Check the pull chain switch on the fan. ...
5. Check the wires where the pull chain switch is wired to the fan.

Why do fans change speed?

Dust accumulation can gum up the lubricant and increase friction, which forces the motor to work harder. Moreover, the bearings become less round as they grind along. Even at the top speed setting, with enough friction, the fan blades move slowly or not at all, and the motor may even burn itself out.

Why is condenser heated?

The condenser is a heat-exchange surface that permits the transfer of heat from the system refrigerant to the air outside. ... This rejection of heat causes the hot vapor refrigerant coming from the compressor to condense. The purpose of the condenser is to condense the refrigerant to a liquid.

What is the difference between heat exchanger and condenser?

Condenser and Heat Exchangers:

A condenser is an apparatus intended to condense vapors to a liquid state from their gaseous state. ... A heat exchanger works to conduct heat from a substance of higher temperature to a substance of lower temperature without phase changes.

Is a condenser a heat exchanger?

A condenser can be considered a form of heat exchanger as it is similar to a chiller heat exchanger in function.

What is difference between conductor and capacitor?

As nouns the difference between conductor and capacitor

is that conductor is one who conducts or leads; a guide; a director while capacitor is (electronics) an electronic component capable of storing an electric charge; especially one consisting of two conductors separated by a dielectric.

What is called capacitor?

capacitor, device for storing electrical energy, consisting of two conductors in close proximity and insulated from each other. A simple example of such a storage device is the parallel-plate capacitor. ... Capacitors have many important applications.

When did condensers become capacitors?

It was for this work that the unit volt was named after him. The term 'capacitor' didn't start being used until sometime in the 1920s. For a long time they were referred to as condensers and still are for some applications and in some countries.

What is capacitor formula?

The basic formula governing capacitors is: charge = capacitance x voltage. or. Q = C x V. We measure capacitance in farads, which is the capacitance that stores one coulomb (defined as the amount of charge transported by one ampere in one second) of charge per one volt.

Why capacitors are used?

Capacitors are useful to reduce the voltage pulsation. When the high voltage is applied to the parallel circuit, the capacitor is charged, and on the other hand, it is discharged with the low voltage. While electricity flowing out is alternating current, most of electronic circuits work with direct current.
