Calomel electrode: This reference electrode consists of a mercury and mercury-chloride molecules. This electrode can be relatively easier to make and maintain compared to the SHE. ... This a widely used reference electrode because it is inexpensive and not as toxic as the Calomel electrode that contains mercury.

Is calomel electrode is used as reference electrode?

The calomel electrode is used as a reference electrode. Complete Step by step answer: ... -A reference electrode which is based on the reaction between elemental mercury and mercury (I) chloride is known as the saturated calomel electrode, abbreviated as SCE.

What are the advantages of calomel electrode?

Advantages of calomel electrode:

It is easy to set up and easily reproducible. It is convenient and easy to transport. It is very compact and smaller in size requires little space. No separate salt bridge is required as it has already a side tube containing KCl solution.

Why is reference electrode used?

Reference electrodes are used to set the relative potential of a solution in an electrochemical cell and are analogous to the ground node of an electric circuit.

What is calomel reference electrode?

A calomel electrode is a type of reference electrode that is based on reactions between mercury (I) chloride (calomel) and elemental mercury. These electrodes are commonly used in used in voltmeters and pH meters. ... This permits electrical contact with a solution outside the electrode.

Calomel Electrode

What is the role of reference electrode in the determination of electrode potential?

Reference electrode allows you to measure the potential of the working electrode with out passing current through it while counter (auxiliary) electrode allows you to pass current.

What is a calomel electrode used for in chemistry?

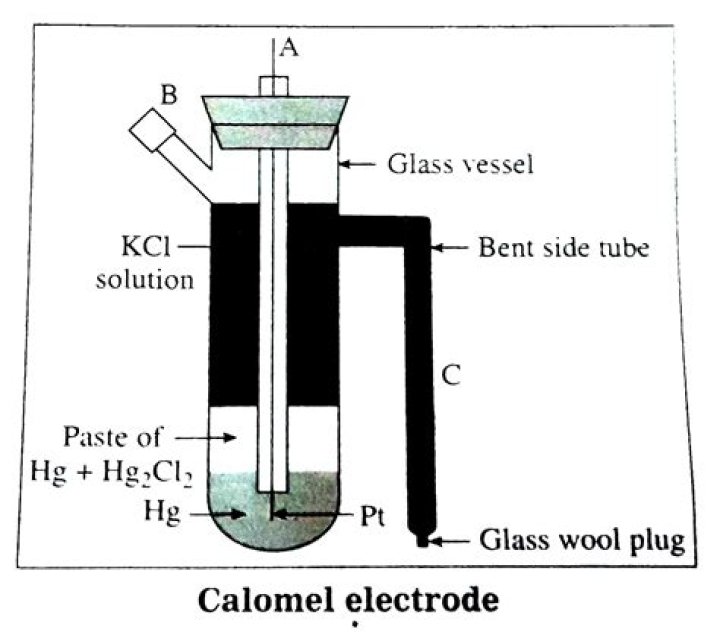

Calomel electrode is the mercury-mercurous chloride electrode. ... A platinum wire sealed into a glass tube is dipped into mercury layer is used to provide the external electrical contact. The side tube is used for making electrical contact with a salt bridge.

What is calomel electrode explain with well labeled diagram?

Calomel electrode is a type of half cell in which the electrode is mercury coated with calomel (Hg2Cl2) and the electrolyte is a solution of potassium chloride and saturated calomel. In the calomel half cell the overall reaction is.

What is the role of reference electrode in pH meter?

A reference electrode is used in combination with a glass electrode so that the difference in potential generated between it and the glass electrode can be measured. It also indicates a known potential irrespective of the pH of the solution.

What are advantages of SCE?

We offer a competitive Total Rewards Package including a wide selection of health plans, preventive health reimbursement, 401(k) savings plan with company match and automatic company contributions, wellness programs and initiatives, tuition reimbursement, competitive vacation/holiday program, professional development, ...

What makes a good reference electrode?

Everyone agrees that an ideal reference electrode has a stable, well-defined electrochemical potential. ... An ideal reference electrode should also have zero impedance. As discussed below, a reference electrode's impedance can strongly affect the performance of a potentiostat.

What would happen if you connect the calomel electrode and the silver electrode directly?

There is no difference between them, basically both of them a secondary reference electrode.

How does a reference electrode work?

The role of the reference electrode is to provide a stable potential for controlled regulation of the working electrode potential and in doing so allow the measurement of the potential at the working electrode without passing current through it. An ideal reference electrode should also have zero impedance.

Why is potential of the reference electrode constant?

Reference electrodes maintain constant potential by the vertue of its composition. For the Silver-silver cloride reference electrode or the calomel reference electrode the potential is constant because it contains a fixed chloride concentration.

What is pH electrode and reference electrode?

The pH-responsive electrode is usually glass, and the reference is usually a silver–silver chloride electrode, although a mercury–mercurous chloride (calomel) electrode is sometimes used. ... When the two electrodes are immersed in a solution, they act as a battery.

What is calomel electrode explain how the potential is measurement by this electrode?

Standard Calomel Elecrode

The Saturated calomel electrode (SCE) is a reference electrode based on the reaction between elemental mercury and mercury(I) chloride. The electrode consists of a broad glass tube with a side tube. ... Electrode potential depends upon concentration of KCl solution.

Why calomel electrode is reversible with chloride ions?

The capability of calomel terminal reductions with increment in the concentration of chloride ions at a given temperature. In this manner, the terminal is reversible as for concentration of chloride ions.

Which of the following calomel electrode are used for accurate work?

Which of the following calomel electrodes are used for accurate work? Explanation: Calomel electrode with 0.1M Kcl is used for accurate work.

What is calomel used for?

Calomel, or mercurous chloride, probably originated inChina and was used by Paracelsian physicians in the 16th century. It was used to treat malaria and yellow fever, and a preparation called “wormchocolate” or “worm candy” was given to patients infested with helminths.

Is calomel still used?

Once the most popular of cathartics, calomel has been used in medicine since the 16th century. The recognition of its potential toxicity (because of disassociation into mercury and mercuric chloride), together with the development of superior and safer cathartics, led to a decline in its use in internal medicine.

Which one is the calomel electrode?

The saturated calomel electrode (SCE) is a reference electrode based on the reaction between elemental mercury and mercury(I) chloride. It has been widely replaced by the silver chloride electrode, however the calomel electrode has a reputation of being more robust.

What is a reference electrode explain any one reference electrode in detail?

A reference electrode has a known electrode potential and is stable. ... Uses of reference electrodes are numerous, but the most important of all is in the electrochemical cell. This is where it's used as a half cell in the electrochemical cell to allow for the determination of the other half's cell potential.

Do you need a reference electrode in a galvanic cell?

All Answers (6) The reference electrode is essential to Know "what is the exact potential"without variations. The current never must flow for the reference electrode because produce potential drop, for this reason, it use another electrode called contra electrode.

What is the difference between reference electrode and indicator electrode?

The key difference between indicator electrode and reference electrode is that indicator electrode responds to changes in the activity of the analyte, whereas reference electrode does not respond to changes, and its response is stable.

Which of the following is used as a reference electrode?

The most commonly used reference electrode is calomel electrode. Its reduction potential depends upon the concentration of KCl solution used. The calomel electrode is made by using $[HgC{l_2}]$. Therefore, from above we can conclude that option D is the correct answer.
