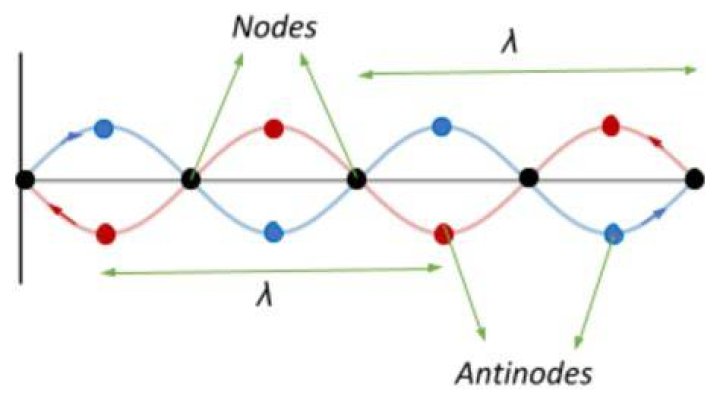

What is true about the nodes and antinodes of a standing wave? They remain in a fixed position. ... The amplitude of the resultant wave is greater than the amplitude of either of the two individual waves.

What is the difference between nodes and antinodes in a standing wave?

Antinodes are points on a stationary wave that oscillate with maximum amplitude. Nodes are points of zero amplitude and appear to be fixed.

What are standing waves find position of nodes and antinodes?

A standing wave is the superposition of two waves which produces a wave that varies in amplitude but does not propagate. Nodes are points of no motion in standing waves. An antinode is the location of maximum amplitude of a standing wave. Normal modes of a wave on a string are the possible standing wave patterns.

What is the relationship between nodes and antinodes?

These are the points that undergo the maximum displacement during each vibrational cycle of the standing wave. In a sense, these points are the opposite of nodes, and so they are called antinodes. A standing wave pattern always consists of an alternating pattern of nodes and antinodes.

What is the difference between node and Antinode?

Answer: A node is a point along a standing wave where the wave has minimum amplitude. ... The opposite of a node is an anti-node, a point where the amplitude of the standing wave is at maximum. These occur midway between the nodes.

Standing waves on strings | Physics | Khan Academy

What is node and Antinode physics?

A node is a point along a standing wave where the wave has minimum amplitude. For instance, in a vibrating guitar string, the ends of the string are nodes. ... The opposite of a node is an anti-node, a point where the amplitude of the standing wave is at maximum. These occur midway between the nodes.

What is node and Antinode in chemistry?

Anti node. The opposite of a node is an antinode, a point where the amplitude of the standing wave is a maximum. These occur midway between the nodes. At antinodes, the amplitude is maximum. ... The position of nodes is represented by:- x= (n+(1/2))( λ/2) ; n=0,1,2,3,4 …

What are nodes and antinodes answer?

A node is where the amplitude of the wave is zero. Antinodes are where the amplitude (positive of negative) is a maximum, halfway between two adjacent nodes. ...

What are nodes and antinodes Brainly?

A node is where the amplitude of the wave is zero. Antinodes are where the amplitude (positive of negative) is a maximum, halfway between two adjacent nodes. Both features result from the superposition of two or more progressive waves propagating in opposite directions in a body of water.

What are nodes and antinodes in Physics 12?

Hint: A node is defined as a point along a standing wave where the particles travelling along the wave are stationary. Here, the wave has minimum amplitude. The points that undergo the maximum displacement during each vibrational cycle of the standing wave are called antinodes.

What are nodes and antinodes write conditions for nodes and antinodes?

At certain positions the value of amplitude is maximum and at certain positions the value of amplitude is 0. Nodes: - Nodes represent the positions of zero amplitude. Antinodes: - Antinodes represent the positions of maximum amplitude.

What is the position of the nodes and the antinodes in the air column?

The boundary conditions for standing waves in a closed air column are that an antinode exists at the open end and a node exists at the closed end. The amplitude of the longitudinal sound wave and corresponding transverse wave displayed is largest where the air has its greatest motion and lowest pressure—an antinode.

What is the distance between node and antinode in a stationary wave?

Nodes and antinodes are the points known to form stationary waves. If we assume a stationary wave traveling in a medium, the approximate distance between a node and the immediate next antinode is actually one-fourth of the given wavelength.

How are nodes and antinodes formed?

The nodes are points of no displacement caused by the destructive interference of the two waves. The antinodes result from the constructive interference of the two waves and thus undergo maximum displacement from the rest position.

What is the total number of nodes and antinodes in the standing wave?

What is the total number of nodes and antinodes in the standing wave? Answer: Five nodes and four anti-nodes.

What is a node what is an Antinode quizlet?

Node. point in a standing wave that has the LEAST displacement (maintains zero displacement) antinode. a point in the standing wave, halfway between two nodes, at which the MOSTdisplacement occurs. adding to amplitude.

What is meant by antinode in chemistry?

: a region of maximum amplitude situated between adjacent nodes in a vibrating body.

What is Orbital antinode?

Antinode. ... In celestial mechanics, an antinode is either of the two points on an orbit where a line in the orbit plane, perpendicular to the line of nodes, and passing through the focus, intersects the orbit.

What is an antinode B What is a node?

Node: A pont along a standing wave where the wave has minimum amplitude. Antinode: A point along a standing wave where the wave has maximum amplitude.

What is a standing wave in physics?

standing wave, also called stationary wave, combination of two waves moving in opposite directions, each having the same amplitude and frequency. The phenomenon is the result of interference; that is, when waves are superimposed, their energies are either added together or canceled out.

How is the distance between the antinodes of a standing wave compared with the wavelength of the two waves that interfere to form the standing wave?

the amplitude is maximal, with a value of twice the amplitude of the right- and left-traveling waves that interfere to produce this standing wave pattern. These locations are called anti-nodes. The distance between two consecutive nodes or anti-nodes is half the wavelength, λ/2.

What is the phase difference between a node and its nearest antinode in a stationary wave?

The phase difference between a node and the nearest antinode is 90 degrees.

What is the displacement at the position of antinode in a stationary wave?

Antinodes are the points on stationary wave with maximum displacement and maximum pressure change.Nodes are the point of zero displacement of particle and here pressure is also minimum.Antonodes are shown in the given figure.

Do nodes and antinodes occur in longitudinal waves?

The illustration above involves the transverse waves on a string, but standing waves also occur with the longitudinal waves in an air column. Standing waves in air columns also form nodes and antinodes, but the phase changes involved must be separately examined for the case of air columns.

How might one can locate the position of nodes and antinodes in a vibrating string?

Question 7: How might one can locate the position of node and anti-node on a vibrating string? Nodes in a standing wave produced in a string happen on equally spaced intervals. The amplitude of the waves is zero at these locations. At all these points, two anti-phase waves add together and cancel out each other.
