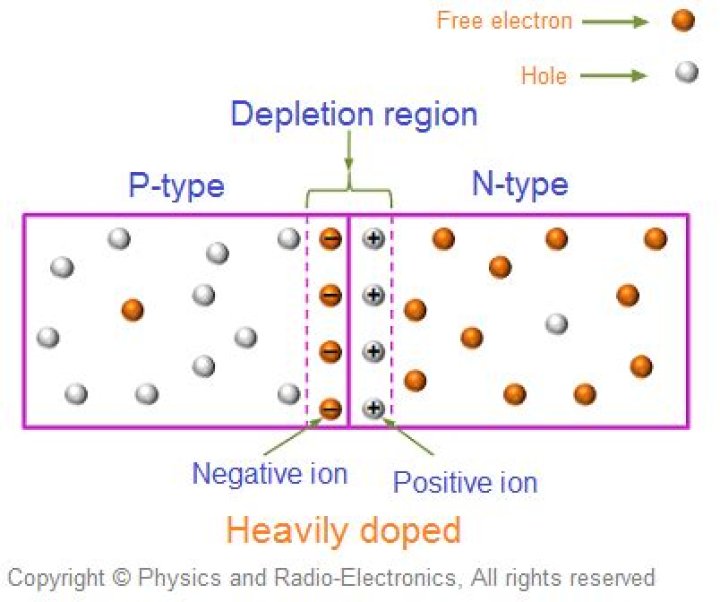

Zener diode is heavily doped than the normal p-n junction diode. Hence, it has very thin depletion region.

When diode is heavily doped then?

A heavily doped diode has a low zener breakdown voltage whereas a lightly doped diode has a high zener breakdown voltage. Also if the voltage is above approximately 8V, the breakdown phenomena is known as the Avalanche breakdown. Hence upon increasing doping the avalanche voltage will also be high.

Is photodiode heavily doped?

PIN photodiode operation. A PIN photodiode is made of p region and n region separated by a highly resistive intrinsic layer. The intrinsic layer is placed between the p region and n region to increase the width of depletion region. The p-type and n-type semiconductors are heavily doped.

Which is heavily doped?

In most transistors, emitter is heavily doped. Its job is to emit or inject electrons into the base. These bases are lightly doped and very thin, it passes most of the emitter-injected electrons on to the collector.

What is meant by heavily doped diode?

A heavily doped diode has a low Zener breakdown voltage, while a lightly doped diode has a high Zener breakdown voltage. At voltages above approximately 8V, the predominant mechanism is the avalanche breakdown.

Tutorial: Doping

Which diode is heavily doped or tunnel?

A Tunnel diode is a heavily doped p-n junction diode which displays a negative resistance behaviour in a specific region in its characteristic curve. By Negative resistance we mean that in that region, the current flowing through the diode decreases as the voltage is increased.

Which diode is lightly doped?

A zener diode. (A) Is a lightly doped junction diode.

Which region is most heavily doped?

Correct Option: A

Emitter is the most heavily doped region in a transistor because all the charge carriers emitted at the emitter region.

Which of the following region is heavily doped?

Emitter (E): It provides majority charge carriers by which current flows in the transistor. Therefore the emitter semiconductor is heavily doped.

Which of the following is heavily doped region of transistor?

Detailed Solution. Emitter is heavily doped. Its job is to emit or inject electrons into the base.

Is led heavily doped?

The structure of the LED has a high level of doping so that it can work on the principle of the interconversion of the light and electricity. It is forward biased though so that it can emit light spontaneously when connected. ... A heavily doped p-n junction with forward bias.

Why photodiode is heavily doped?

Light enters the photodiode region which is not folded and causes the formation of electron-hole pairs. Under the action of the electric field, electrons migrate to the avalanche region.

Is solar cell heavily doped?

Many modern crystalline silicon solar cells are highly doped in both the emitter and the so-called back-surface-field (BSF) structure. ... For the emitter, a high dopant surface concentration is seen to be beneficial when the surface recombination velocity is high.

Does zener diode is heavily doped because?

Explanation: A Zener diode is heavily doped so that the breakdown voltage occurs at a lower voltage. If it were lightly/moderately doped, it would breakdown at a comparatively high voltage and, thus, would not be able to serve its purpose.

How Zener diodes are doped?

Some Zener diodes have a sharp, highly doped p–n junction with a low Zener voltage, in which case the reverse conduction occurs due to electron quantum tunnelling in the short space between p and n regions − this is known as the Zener effect, after Clarence Zener.

Which breakdowns occurs in lightly doped diodes?

The avalanche breakdown occurs in lightly doped p-n junction diodes.

Which transistor region is lightly doped and which is heavily doped?

Emitter provides majority charge carrier by which current flows in the transistors. Therefore, the emitter semiconductor is heavily doped and the base region is light doped and thin.

Which regions are doped in transistor?

A BJT consists of three differently doped semiconductor regions: the emitter region, the base region and the collector region. These regions are, respectively, p type, n type and p type in a PNP transistor, and n type, p type and n type in an NPN transistor.

Why collector is lightly doped?

Base is lightly doped because we want that the base current should be small. Now the collector is moderately doped may be because we dont want a crowd of electrons in the collector otherwise the electrons coming from the Emitter-Base path may repelled and collector current may decrease.

Which terminal of the transistor is the most doped?

Emitter: Emitter terminal is the heavily doped region as compared two base and collector. This is because the work of the emitter is to supply charge carrier to the collector via the base. The size of the emitter is more than base but less than the collector.

Which of the following in the BJT is the heavily doped region?

3. In a BJT, which of the following layers is heavily doped? Explanation: The emitter is the most heavily doped and contains the maximum amount of charge carriers.

What is the difference between heavily doped and lightly doped?

When on the order of one dopant atom is added per 100 million atoms, the doping is said to be low or light. When many more dopant atoms are added, on the order of one per ten thousand atoms, the doping is referred to as high or heavy.

Is light emitting diode lightly doped?

Explanation: A light emitting diode, LED, is heavily doped. It works under forward biased conditions. When the electrons recombine with holes, the energy released in the form of photons causes the production of light. ... The reverse breakdown voltage of LED is very low.

What is meant by avalanche breakdown?

Avalanche breakdown (or “the avalanche effect”) is a phenomenon that can occur in both insulating and semiconducting materials. It is a form of electric current multiplication that can allow very large currents within materials which are otherwise good insulators. It is a type of electron avalanche.

What is apin diode?

Definition: The diode in which the intrinsic layer of high resistivity is sandwiched between the P and N-region of semiconductor material such type of diode is known as the PIN diode. The PIN diode is a type of photodetector used for converting the light energy into the electrical energy. ...
