Traditional polarimeters used sodium D line emis- sion at 590nm and modern laser polarimeters use laser diode emitters at 670 nm.

Which light is used in polarimeter?

In a typical polarimetry experiment, monochromatic light is passed through the sample. A sodium lamp is usually used as the light source and the wavelength of its D line is 589.3 nm.

What is used a analyzer in polarimeter?

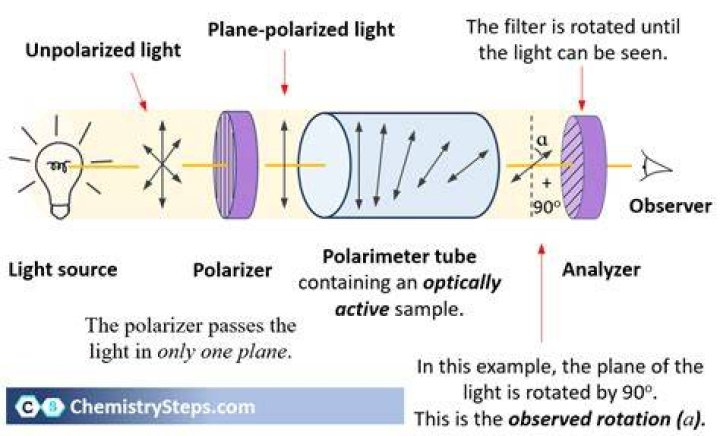

The polarimeter is made up of two Nicol prisms (the polarizer and analyzer). ... If now a glass tube containing an optically active solution is placed between the polarizer and analyzer the light now rotates through the plane of polarization through a certain angle, the analyzer will have to be rotated in same angle.

What is polarimeter used for?

Polarimeter. Polarimeters are optical instruments used for determining the polarization properties of light beams and samples. Light-measuring polarimeters determine the polarization state of a beam of light and give its polarization characteristics.

What is the principle of polarimeter?

According to Wikipedia the principle of Polarimeter is “The ratio, the purity, and the concentration of two enantiomers can be measured via polarimetry. Enantiomers are characterized by their property to rotate the plane of linear polarized light.

MCP polarimeter: Automatic detection of inserted sample cells

Why sodium lamp is used in the polarimeter experiment?

A polarimeter is defined as a scientific instrument that is used for measuring the angle of rotation caused by the passing of polarized light through an optically active substance. For this sodium light is used because it produces monochromatic light and the energy output is high.

What is Laurent's half shade polarimeter?

Laurent's Half Shade Polarimeter : • Consists of a semi-circular half wave plate ABC of quartz ( cut. parallel to optic axis) so that it introduces a phase change of. between the extra-ordinary and the ordinary rays passing through it, and a semi-circular glass plate ADC.

How optical rotation is measured in polarimeter?

A polarimeter is an instrument which measures the angle of rotation by passing polarized light through an optically active (chiral) substance. To measure optical rotation, a Light Emitting Diode (LED) produces a beam of ordinary light. ... The polarized light then passes through the sample cell.

Which polarimeter is more accurate?

The Lippich polarimeter is a more accurate variant.

What is half shade device?

A device for forming at least two adjacent areas of polarized light. The angle between the directions of vibration of the light waves in the two areas is generally small.

Why sucrose is used for calibration of polarimeter?

Polarimetry basically measures the angle of rotation of polarized transverse waves (e.g:electromagnetic: light) -or polarization- as it passes through an optically active fluid such as sucrose which is a nearly ideal sugar for testing and calibration.

Why yellow light is used in polarimeter?

Yellow light (low pressure sodium bulb) is used in polarimetry because: It is a cheap and convenient light source.

How do you calibrate a polarimeter?

5.2. 20 Rinse the tube with 10% solution and fill the solution in Polarimeter tube.
...
5.2 Calibration

1. Switch 'On' the mains. ...
2. Wait till sodium lamp glows with the full intensity of yellow light. ...
3. Rinse the Polarimeter tube with distilled water. ...
4. Adjust the vernier scale and main dial scale to zero.

What is Malus's law?

the law stating that the intensity of a beam of plane-polarized light after passing through a rotatable polarizer varies as the square of the cosine of the angle through which the polarizer is rotated from the position that gives maximum intensity.

How do you read in polarimeter experiment?

Take the first reading at equal intensity position (either bright or gray) and also record the second reading at 180° apart from this position, in both the directions (clockwise and anticlockwise). Find the mean of two directions reading separately for both the position.

Why half shade plate is used?

A device used to determine the direction of polarization of plane polarized light; it consists of a quartz plate of special thickness that covers half of the plane polarized beam, followed by a plane polarization analyzer.

Why plane polarized light is used in polarimeter?

The optical rotation can be determined with polarimetry. In polarimetry, plane polarized light is applied. ... When unpolarized light hits a polarizer, only the component oscillating in the orientation of the polarizer can pass. The plane of polarization is turned by optically active compounds: the enantiomers.

What is the wavelength of sodium light?

The sodium spectrum is dominated by the bright doublet known as the sodium D-lines at 589.0 and 589.6 nanometers as shown in Fig. 1. Using an appropriate diffraction grating the wavelength separation of these two lines can be determined.

Why optical rotation is important?

For a pure substance in solution, if the color and path length are fixed and the specific rotation is known, the observed rotation can be used to calculate the concentration. This usage makes a polarimeter a tool of great importance to those trading in or using sugar syrups in bulk.

What is the length of polarimeter tube?

In a polarimeter (figure 2), plane-polarized light is introduced to a tube (typically 10 cm in length, figure 3) containing a solution with the substance to be measured.

What is angle of rotation in polarimeter?

The point at which it tilts is called the "angle of rotation." It is the basic value measured with a polarimeter. The angle of rotation changes depending on the concentration of the liquid sample, the length of the observation tube, the temperature, and the measurement wavelength. The unit is expressed as, " °."

What is the difference between optical rotation and specific optical rotation?

Optical rotation is the rotation of plane-polarized light when a light beam is directed through certain materials. Specific rotation gives the angle of rotation of plane-polarized light by a certain compound at a certain temperature. This is the key difference between optical rotation and specific rotation.
