White cast iron which is very hard and contains iron carbides, is normally considered to be unweldable.

Why can you not weld cast iron?

The key reason why welding cast iron can be problematic is the high carbon content. During the welding process, this carbon migrates into the weld metal and/or the heat affected zone adjacent to the weld metal, causing elevated hardness/brittleness. This is how Cast Iron gets its reputation for post weld cracking.

Can gray cast iron be welded?

Grey cast iron is the most common form of cast iron. ... It is more ductile and weldable than white cast iron. However, it still poses a challenge to prospective welders as the graphite flakes within grey cast iron can enter the weld pool to cause weld metal embrittlement.

Can white cast iron be welded?

All categories of cast iron except white iron are considered as weldable, although the welding can be significantly more difficult compared with carbon steel welding.

What material Cannot weld?

Some examples of material combinations that cannot be fusion welded successfully are aluminum and steel (carbon or stainless steel), aluminum and copper, and titanium and steel. Nothing can be done to alter their metallurgical properties.

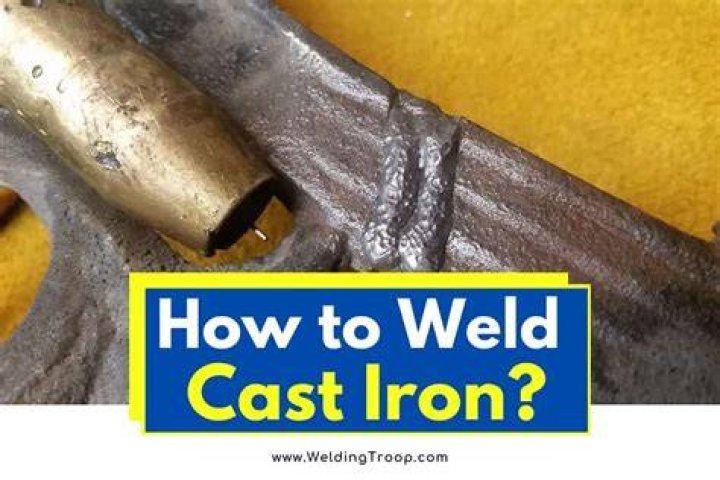

How to Weld Cast Iron NO Pre-Heating | TIG Time

Can you weld metal to cast iron?

Yes, cast iron can be welded to steel. ... Gray iron and ductile iron will act differently. Regardless, you should be able to weld any of these together with steel, but you don't want a weak weld because you thought you had cast iron when you really have something with a higher melting temperature.

Can galvanized steel be welded?

To weld galvanized steel successfully, a skilled welder is required. Furthermore, to solve the coating issue, the zinc coating should be removed from the area where you are welding. A filler material can also be used on the zinc-coated portion of the welding area.

Why is white cast iron not weldable?

As the lack of ductility is caused by the coarse graphite flakes, the graphite clusters in malleable irons, and the nodular graphite in SG irons, give significantly higher ductility which improves the weldability. ... White cast iron which is very hard and contains iron carbides, is normally considered to be unweldable.

Can I weld cast iron with 7018 Rod?

Another great welding rod for cast iron, the Hobart 1/ 8” 7018 is a low-hydrogen electrode that can be used in all positions. It's also suitable for low, medium, and high-carbon steels.

What happens if malleable cast iron is welded?

Malleable iron cannot be successfully fusion welded and retain its unique properties; to put it another way, you can weld malleable iron as easily as you can weld gray iron, but in the act of welding you will convert some of the malleable iron casting into a gray iron casting.

Can you weld cast iron with 309 Rod?

It is a bad idea to weld the cast iron part using stainless steel filler metal, such as the 309 or the 312. These are popular to weld dissimilar metals, but cast iron contains way too much carbon.

Can broken cast iron be repaired?

Cast iron can be repaired using a variety of processes according to the exact nature of the cast iron and the circumstances in which the repair must be performed. These processes include specialised welding techniques, cold metal stitching, and various types of reinforcement.

Can you weld cast iron to stainless?

Can you weld a cast iron with a stainless rod? Yes, it is possible, however, stainless steel rods are not an ideal choice when it comes to welding cast iron. The high amount of chromium in the filler and the high carbon content of the cast iron make a very brittle chromium carbide.

Can you repair cast iron with JB Weld?

Use of Epoxy Putty to Repair Cracked Cast Iron

First, buy epoxy putties such as Quick Steel or JB Weld at your local hardware store. These two types of epoxies will serve as glue and will adhere to cast iron and fill the crack with a safe seal.

Can cast iron be welded or brazed?

Cast iron is used for water pipes, machine tool castings, transmission housing, engine blocks, pistons, stove castings, etc. The metal can be brazed or bronze welded, gas and arc welded, hardened, or machined. In terms of limitations, the cast iron must be preheated prior to welding. It cannot be worked cold.

Can I weld cast iron with a MIG welder?

MIG welding cast iron

Although cast iron can be welded with the MIG process and specialised flux-cored electrode wires, the resulting welded joint won't be as strong as with MMA arc welding.

When would you use a 6011 welding rod?

The 6011 welding rod is useful for jobs that require deep penetration, no matter the position or welder setup. It is a solid all-around welding rod. Because it is an iron rod, it is useful for most kinds of iron and mild steel. You can handle just about anything with 6011 rods.

Can SG iron be welded?

Weldability of spheroidal graphite ductile cast iron was established using a cheap Ni-Fe and a high purity Ni electrode. A preheating treatment at 350 °C and an annealing treatment at 850 °C were carried out to improve mechanical properties of welded pieces.

What metals Cannot be welded together?

• Titanium and steel.
• Aluminum and copper.
• Aluminum and stainless steel.
• Aluminum and carbon steel.

Can you weld cast iron with 6011 rods?

Yes 6011 is putting mild steel in the weld, but it also is melting base metal so its flowing cast iron in as well).

What welder is best for steel?

1. TIG Welding or Gas Tungsten Arc Welding. Offering high quality, versatility and longevity, TIG is the most commonly used stainless steel welding process. This welding process creates a low heat input, which makes it perfect for thin material.

Why do welders drink milk?

Welders drink milk as a treatment for metal fume fever. Metal fume fever is an illness caused by exposure to chemicals like zinc oxide, aluminum oxide, or magnesium oxide. ... More than likely, milk will not provide adequate protection from the fumes produced while welding certain metals.

Is it bad to weld galvanized steel?

Welding galvanized steel can pose problems other than just health risks. The zinc coating found on galvanized steels can compromise the weld. The coating makes penetration more difficult and can cause a weld to have inclusions and porosity. Lack of fusion at the toes of the weld is also common.

Can ductile cast iron Weld?

Ductile Iron can be welded successfully to produce welds that have mechanical properties comparable to those of the base iron. As with any base material, the success of welding Ductile Iron depends on suitable equipment, correct procedures, qualified welders, and effective quality control procedures.
