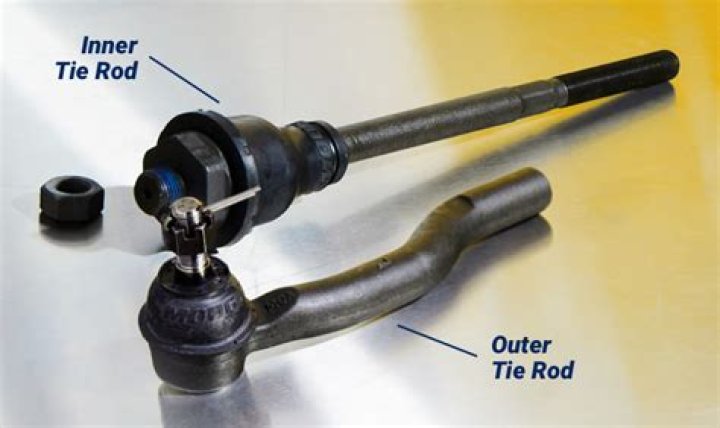

A modern car with a rack and pinion steering system has four tie rods, with an inner and outer tie rod on each side. Each of the inner tie rods connects the steering rack to an outer tie rod. The inner tie rods are located inside the steering rack's rubber boots.

How do I know if I have an inner or outer tie rod?

Notice the looseness or tightness of the steering. Loose steering is a clear indicator of an inner tie rod malfunction. A “clunk” sound may also be associated with this problem. However, loose steering and a “clunk” sound together are usually indicative of an inner tie rod that is lacking in proper lubrication.

Which one is the inner tie rod?

Inner Tie Rod

The inner tie rods are pivot points and are attached to the end of the center link. It is located closer to the center line of the vehicle and is accordingly named "inner tie rod." The inner tie rod is the first pivot point initiating the wheel to turn.

Are inner tie rods the same?

Tie rods in both systems have the same function: they connect the steering rack or linkage to the steering knuckles. The outer tie rod end is connected to the steering knuckle. The inner tie rod end is protected by the steering rack boot (we made it transparent in this image). ... Both tie rod ends have ball joints.

Should I replace both tie rods at the same time?

If you are changing an inner tie-rod, and the outer tie-rod is an original part, it is recommended to change both. ... Having both your inner and outer tie-rods replaced at the same time will save you money on labor charges and aid in preventing future issues.

How to Change Tie Rods (inner and outer tie rod ends)

Do Bad inner tie rods make noise?

A knocking or clunking sound from the front of the vehicle when turning at low speeds can be a symptom of bad tie rods. As they become loose, tie rods can rattle around at the joints and links, causing the new noises you're hearing.

Can you drive with a bad inner tie rod?

You can typically continue to drive your vehicle on a worn tie rod, but if it fails completely, you'll lose steering control and will likely need a tow to get you back home or to our service center for a repair.

What are the signs of a bad tie rod?

1. Inability To Steer.
2. A Squealing Sound When You Turn. ...
3. Uneven, Excessive Tire Wear. ...
4. Misaligned Front End. ...
5. A Steering Wheel that Feels Unusual. ...

What happens when inner tie rod breaks?

When a tie rod breaks the wheel it is attached to is no longer controlled by the steering assembly and will flop about in whatever direction it chooses based on tire wear, pressure, vehicle speed, road condition, etc. In other words, when a tie rod fails you lose the ability to properly steer the vehicle.

Should inner tie rod move?

Check the inner tie rod ends, pushing them front to rear. If any free play is observed in a joint, it is worn and should be replaced. ... If the outer tie rod ends have any vertical movement or the inner tie rod ends have any horizontal movement, the tie rod end with the observed movement should be replaced.

What sound does a bad ball joint make?

Noise – this can be a clunking or squeaking noise. Clunking noises are caused by the worn ball joints rattling as the suspension travels up and down over the road. The squeaking noise is caused by the rubber boot that protects the grease inside the ball joint is damaged, the ball joint will start to squeak.

How much does it cost to replace a tie rod?

Most tie rods will cost between $40 and $120 with inner tie rods more expensive than outers. Some cars have tie rods where inner and outer tie rods are sold together as an assembly. Labor to replace tie rods will run between $45 and $85 depending if the inner or outer tie rod is changed.

How often should tie rods be replaced?

Tie rod ends are used every time you use your steering wheel, so they can go bad over time due to wear and tear. In some vehicles, they can last for many years, while in other vehicles they may not have to be replaced at all.

How many tie rods are on a car?

There are four tie rod ends on most vehicles. The outer tie rod ends — one per side — are most susceptible to wear and failure. If one outer tie rod end has failed, the other is probably not far behind.

Can I just replace tie rod ends?

While it may not be absolutely necessary to replace both tie rods at the same time, many mechanics may recommend a varying combination of replacement parts. If you are changing an inner tie-rod, and the outer tie-rod is an original part, it is recommended to change both.

What does the inner tie rod connect to?

The inner and outer tie rods connect to the steering arm in order to move the wheels of your vehicle. In the common rack-and-pinion steering system, the inner tie rods connect to the steering rack while the outer tie rods connect to the steering arms.

Can I replace tie rods without alignment?

It is possible to replace this part without needing an alignment if the job is done correctly. Use a sharpie to mark the position of the tre and count the number of turns required to remove it. When installing the new parts run them in the same number of turns and to the mark.

Why does my car make a crunching noise when I go over bumps?

Does your car clunk or make a crunching noise when you go over bumps? These noises indicate that something in your suspension needs attention. Suspension components are typically made out of metal and need to pivot so that the vehicle can go over bumps.

What is the knocking sound in the back of my car?

If you hear a knock or other odd sounds coming from below, the culprit is usually one of three parts of your system – your tie bar, ball joints or sway bar. All three of these can wear out with enough use, which could lead to some serious issues including total loss of steering control.

What causes a clunking noise when going over bumps?

If you hear those annoying clunking noises when going over bumps, it means that something is wrong with the suspension system. ... These are the areas to check the next time you hear these sounds on the road. Worn or Damaged Struts. When struts are damaged, the strut shocks fail to perform as they should.

Should tie rod ends twist?

There should be a locking nut sitting tight against the tie rod end. If you can turn the threads, that is not a good thing and will effect your toe in/out. But the whole assembly can move a small amount on its ball joint, if thats what your talking about.
