Frost heave refers to the upward or outward movement of the ground surface (or objects on, or in, ground) caused by formation of ice in soil. Heave normally occurs in the direction of least resistance and perpendicular to ice lenses and layers and is therefore commonly upwards.

What is a frost heave?

Frost heave is a form of frost action, a physical weathering process involving the cyclic freezing and thawing of water in soil or rock. Heave in this context refers to the upward movement of the ground surface that occurs in response to the seasonal formation of ice in the underlying soil.

What is the frost line in the UK?

In the UK the maximum frost depth is generally considered to be 0.45m below the surface.

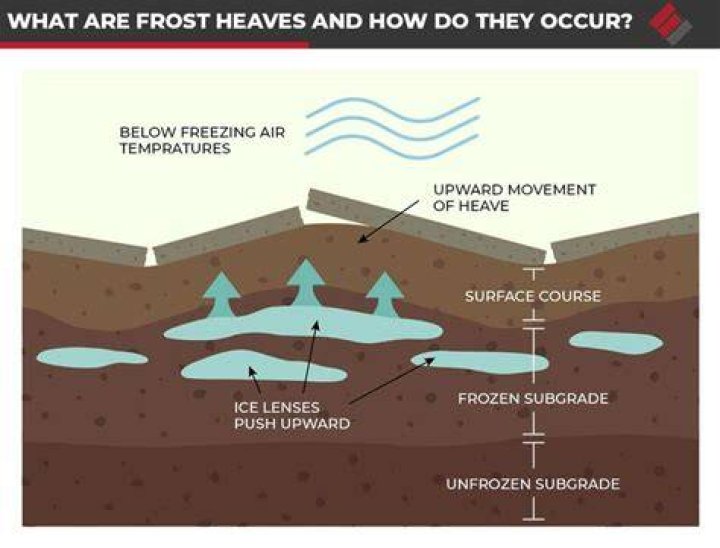

How does frost heave happen?

Frost heaves result from a combination of cold air and adequate soil moisture. As the cold sinks to the ground, water within the soil starts to freeze. ... When water freezes, it expands, creating pressure—both upward and downward. It is this pressure which causes a frost heave to occur.

What is frost heaving in plants?

Frost heaving is the usual culprit. Wide temperature fluctuations, with repeated cycles of freezing and thawing, cause the water in the soil to expand and contract. These repeated expansions and contractions push and turn plants and their roots. The result is heaving of the crowns.

Foundation frost heaving

Where do frost pockets occur?

Frost pockets are often found in dips and valleys where cold air remains for longer than in surrounding areas, particularly where hedging or other shelter prevents the cold air escaping. A pool of morning mist congregating at ground level, when other areas have cleared, is a good indicator of a frost pocket.

Is Clay susceptible to frost heave?

Clays are cohesive and, although their potential capillary action is high, their capillary rate is low. Although frost heaving can occur in clay soils, it is not as severe as for silts, since the impervious nature of the clays makes passage of water slow.

Is Sand susceptible to frost heaving?

Sandy soils are less likely to develop frost heaves, but can still freeze if the water table rises high enough. Structures built in areas with cold winters usually extend deep enough into the soil to avoid frost damage. ... It should also extend farther below the surface than freezing temperatures are likely to penetrate.

How do you prevent frost jacking?

To protect these structures, you must eliminate or minimize at least one of the three conditions that lead to frost heave: reduce frost penetration; keep water out of the freezing zone; or make sure soil in the freezing zone is not susceptible to frost.

Where is frost heaves New Hampshire?

Intrigued but want to know more? “'Frost Heaves' is a fictional town in New Hampshire. Think of it as our version of Lake Wobegon, Minnesota. Ken Sheldon of Hancock, the show's creator, becomes Fred Marple, the narrator of the town's adventures.

How far down does the earth freeze?

The Earth's frost depth record-breaking, continuous measurement of 0 degrees celsius or 32 degrees Fahrenheit goes all the way down to 8 feet or 2,40 meters.

What soils are susceptible to frost heave?

Frost heaving occurs due to an increase in volume of the soil‐water matrix as water turns into ice during the winter and early spring. Subgrade soils containing silt particles are known to be frost susceptible as they readily allow formation of ice lenses when exposed to moisture and freezing temperature.

What is a frost susceptible soil?

Frost-susceptible soils are those with pore sizes between particles and particle surface area that promote capillary flow. ... Many agencies classify materials as being frost susceptible if 10 percent or more constituent particles pass through a 0.075 mm (No. 200) sieve or 3 percent or more pass through a 0.02 mm (No.

What is root heaving?

Heaving may break off roots and expose a plant's crown and remaining roots to cold temperatures and drying winds that may seriously damage or destroy perennials. ... This repeated freezing and thawing causes the soil to expand and contract, which can lift up or heave some perennials out of the soil.

How do you stop frost heaving in fence posts?

The best way to prevent frost heave in fence posts is to set them on a drainage bed prior to pouring the concrete. Plan where you want the fence posts and then call the utility companies prior to digging the first hole so they can mark where gas and electrical lines run.

Does winter mulch prevent frost heave?

Protecting Your Plants from Frost Heave

One of the most effective ways to prevent frost heave from occurring in the garden is by insulating the soil with mulch such as pine bark or wood chips, or by placing evergreen boughs over the garden. This helps to moderate temperature fluctuations and reduce frost penetration.

How do you fix frost heaves?

1. Use a jackhammer to cut the slab at an angle, removing the entire affected section.
2. Correct the subsoil by making sure it is free of debris and level.
3. Cut lumber to form walls around the area where you need to replace concrete.

How do you mitigate frost heave?

1. Think Ahead. Plan on planting perennials at least six weeks in advance of the first frost of the season to allow adequate time for root systems to become established. ...
2. Be Vigilant. Keep a watchful eye on vulnerable plants. ...
3. Promote Drainage. ...
4. Insulate with Mulch.

What construction methods are commonly used to prevent frost heave?

We've found that putting in a layer of insulation underneath the concrete actually helps to prevent frost heaving from penetrating into the underlying soil and thus prevents the soil from freezing and expanding to the point where it pushes your concrete around.

How can you tell if there is frost in the ground?

Just walking across your soil or patting it with your hand will give away whether it is still frozen or not. Frozen soil is dense and rigid. Frozen soil feels very solid and does not give way under foot. Test your soil first by walking on it or patting it in several locations.

How much weight can frost lift?

Yet the power of a frost heave is virtually unstoppable, because the expansive force of freezing water is huge, somewhere around 50,000 lbs. per sq. in. A frost heave can lift a seven-story building or collapse massive, steel-reinforced concrete walls.

Do footings move?

Dig and pour your deck footings so they extend below the frost line. That way, they won't move, or heave, as the ground freezes and thaws during seasonal changes.

Which is more frost susceptible silt or clay why?

For example, clay is often considered to be less frost susceptible than silt. However, a clayey soil can generate substantial frost heave if the groundwater condition and the cooling rate are favourable.

How do you prevent frost heave in concrete slab?

1. Make sure water supply lines are well below the frost line.
2. Place Styrofoam sheets and a layer of crushed stone below the slab.
3. Add wire screen or steel rebar for extra support.

Does gravel frost heave?

Gravel soil itself is generally considered as free from frost heaving. Therefore, it is usually used as soil base construction material in seasonally frozen regions. However, when gravel soil contains a certain amount of fine grained soil, especially silt soil, then frost heaving will still occur.
