Extend is used when a use case adds steps to another first-class use case. For example, imagine "Withdraw Cash" is a use case of an Automated Teller Machine (ATM).

When we use extend in use case diagram?

In UML modeling, you can use an extend relationship to specify that one use case (extension) extends the behavior of another use case (base). This type of relationship reveals details about a system or application that are typically hidden in a use case.

Where do you use an extension in a use case?

In UML models, an extension point identifies the point in the base use case where the behavior of an extension use case can be inserted. The extension point is specified for a base use case and is referenced by an extend relationship between the base use case and the extension use case.

What is an expanded use case diagram?

Expanded use case diagram – includes multiple systems. Advantages of the expanded use case diagram: Provides a view of use cases across the end-to-end process. Captures multiple systems required to support the complete user experience.

What is the difference between include and extend?

In simple words, the difference between include and extend is that 'include' is for adding methods only to an instance of a class and 'extend' is for adding methods to the class but not to its instance.

UML Use Case Diagram Tutorial

Why are uses include and extends associations useful in use case modeling?

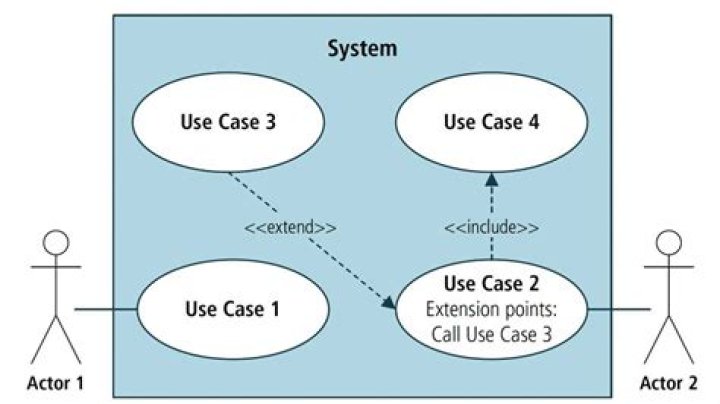

The extend relationships are important because they show optional functionality or system behavior. The <<extend>> relationship is used to include optional behavior from an extending use case in an extended use case. Take a look at the use case diagram example below.

What do you mean by extending a use case Mcq?

What is meant by extending a use case? Adding exception and alternative flows to an existing base use case.

What is extend and include in use case?

Include = reuse of functionality (i.e. the included functionality is used or could be used elsewhere in the system). Include therefore denotes a dependency on another use case. Extends = adding (not reusing) functionality and also any optional functionality.

When would you use a use case diagram?

• Used to gather the requirements of a system.
• Used to get an outside view of a system.
• Identify the external and internal factors influencing the system.
• Show the interaction among the requirements are actors.

What is expanded use case?

Introduction to expanded use cases. ... A use case model is a picture that allows a team to describe even a complex system. It tells in simple terms what the system is going to do for its users. • A use case produces value to a particular user, not to an unidentifiable community of them.

What are the use cases for extensions in boomi?

• Multiple environments — The most common use case involves connection information and multiple environments. ...
• Integration packs — Integration packs are packaged integration solutions.

What is the extend relationship between two use cases?

Extend Relationship Between Two Use Cases

As the name implies it extends the base use case and adds more functionality to the system.

What is extension point?

An extension point is a formal declaration in a plugin. xml file where customization is allowed. Customization takes the place of other plug-ins (inclusive) providing a little chunk of XML describing the specific customization that is requested.

What is the use of extend dependency?

An extend dependency from one use case (called the extension use case) to another use case (called the base use case) indicates that the extension use case will extend (or be inserted into) and augment the base use case. A use case may extend multiple use cases, and a use case may be extended by multiple use cases.

Which of the following are valid relationship in use case diagram?

Explanation: Generalization, include, extend all of these are valid relationships in use case diagrams.

What is use case diagram explain with example?

A use case diagram is a graphical depiction of a user's possible interactions with a system. A use case diagram shows various use cases and different types of users the system has and will often be accompanied by other types of diagrams as well. The use cases are represented by either circles or ellipses.

What is the difference between use case diagram and use case?

What is the difference between use case diagram and use case? Use case diagram shows business or system, its external users, and use cases applicable to the system. Use case represents one specific goal or need of the user from the system.

Why do we use class diagram?

Class diagrams are the blueprints of your system or subsystem. You can use class diagrams to model the objects that make up the system, to display the relationships between the objects, and to describe what those objects do and the services that they provide. Class diagrams are useful in many stages of system design.

HOW include relationship is used in use case diagram?

In UML modeling, an include relationship is a relationship in which one use case (the base use case) includes the functionality of another use case (the inclusion use case). ... The include relationship supports the reuse of functionality in a use-case model.

What is a purpose of a use case diagram Mcq?

Explanation: A use case diagrams captures only the functionality of the system whereas a dynamic model/view captures the functions as well as the action.

What is an extend relationship?

An extend-relationship is a relationship from an extension use case to a base use case, specifying how the behavior defined for the extension use case can be inserted into the behavior defined for the base use case. It is implicitly inserted in the sense that the extension is not shown in the base use case.

Which of these does use case diagram represent Mcq?

Explanation: Use case diagram is the one in which the user's part of interaction with the software is defined. No internal working of the software is defined in this model.

What is the relationship between SSDs and use cases?

9.5. SSDs and Use Cases. An SSD shows system events for a scenario of a use case, therefore it is generated from inspection of a use case (see Figure 9.2).

How do you explain UML diagrams?

Class diagrams are the most common diagrams used in UML. Class diagram consists of classes, interfaces, associations, and collaboration. Class diagrams basically represent the object-oriented view of a system, which is static in nature. Active class is used in a class diagram to represent the concurrency of the system.
