A graded potential is produced when a ligand opens a ligand-gated channel in the dendrites, allowing ions to enter (or exit) the cell. For example, Na⁺ will enter the cell and K⁺ will exit, until they both reach equilibrium.

How is the graded potential created in the sensory receptor?

A receptor potential, also known as a generator potential, a type of graded potential, is the transmembrane potential difference produced by activation of a sensory receptor. A receptor potential is often produced by sensory transduction. It is generally a depolarizing event resulting from inward current flow.

Where do action potentials occur?

Action potentials occur in several types of animal cells, called excitable cells, which include neurons, muscle cells, endocrine cells and in some plant cells.

Where do graded potentials generally occur?

Most graded potentials occur in the cell body before the axon hillock.

What does it mean when a potential is graded?

Definition. noun, plural: graded potentials. A change in the electrical potential on the membrane of an excitable cell (e.g. a nerve cell) in response to a stimulus, and where the magnitude of change is proportional to the strength of the stimulus.

Action Potential vs Graded Potential

How do graded potentials occur?

A graded potential is produced when a ligand opens a ligand-gated channel in the dendrites, allowing ions to enter (or exit) the cell. ... The graded potential will degrade with distance, so it would decrement before reaching the end of the axon if an action potential were not generated.

Do graded potentials occur in the axon?

Graded Potentials occur in dendrites, cell bodies or axon terminals.

Where do graded potentials occur quizlet?

They occur at the postsynaptic dendrite as a result of presynaptic neuron firing and release of neurotransmitter, or may occur in skeletal, smooth, or cardiac muscle in response to nerve input. The magnitude of a graded potential is determined by the strength and frequency of the stimulus.

Where do most graded potentials come from?

Graded potentials are brought about by external stimuli (in sensory neurons) or by neurotransmitters released in synapses, where they cause graded potentials in the post-synaptic cell. Action potentials are triggered by membrane depolarization to threshold.

Can graded potentials initiate an action potential?

All types of graded potentials will result in small changes of either depolarization or hyperpolarization in the voltage of a membrane. ... Graded potentials summate at a specific location at the beginning of the axon to initiate the action potential, namely the initial segment.

How is action potential measured?

The potential across the plasma membrane of large cells can be measured with a microelectrode inserted inside the cell and a reference electrode placed in the extracellular fluid. The two are connected to a voltmeter capable of measuring small potential differences (Figure 21-7).

What stimulates an action potential?

When depolarization reaches the threshold potential, it triggers an action potential. ... In the generation of the action potential, stimulation of the cell by neurotransmitters or by sensory receptor cells partially opens channel-shaped protein molecules in the membrane.

Which of the following occurs first in the generation of an action potential?

When the membrane potential of the axon hillock of a neuron reaches threshold, a rapid change in membrane potential occurs in the form of an action potential. This moving change in membrane potential has three phases. First is depolarization, followed by repolarization and a short period of hyperpolarization.

How do graded potentials result in an action potential?

A graded potential is a difference in charge across the membrane of a cell. If there are enough positive ions that cross to the inside of the cell, then the charge will become less negative and rises to approximately -50 mv, which results in an action potential.

Why is a receptor potential A graded potential?

A receptor potential is a graded response to a stimulus that may be DEPOLARIZING or HYPERPOLARIZING. Receptor potentials have a threshold in stimulus amplitude that must be reached before a response is generated, and their amplitude saturates in response to intense stimuli.

How is graded potential different from action potential?

The main difference between graded potential and action potential is that graded potentials are the variable-strength signals that can be transmitted over short distances whereas action potentials are large depolarizations that can be transmitted over long distances.

Is a graded potential considered all or none?

Graded potentials are changes in membrane potential that vary in size, as opposed to being all-or-none.

When two or more graded potentials arrive at the trigger zone Which of the following could happen?

When two or more graded potentials arrive at the trigger zone, which of the following could happen? An excitatory and inhibitory signal can cancel each other out; two excitatory stimuli may be additive, and summation could occur; and two inhibitory stimuli may be additive, resulting in lower excitability.

When more action potentials arrive at the axon terminal?

When an action potential, or nerve impulse, arrives at the axon terminal, it activates voltage-gated calcium channels in the cell membrane. Ca2+start text, C, a, end text, start superscript, 2, plus, end superscript, which is present at a much higher concentration outside the neuron than inside, rushes into the cell.

What causes a graded potential quizlet?

What causes a graded potential to occur? Graded potentials are initiated by a stimulus, like a drug or neurotransmitter, that activates a ligand-gated channel - for example, a ligand gated Na+ channel.

What is graded potential quizlet?

A graded potential is a small deviation from the RMP that makes the membrane either. more polarized (inside more negative) or less polarized (inside less negative) When the response makes the membrane MORE polarized it is termed. hyperpolarizing graded potential.

What's true about graded potential?

Graded potentials are temporary changes in the membrane voltage, the characteristics of which depend on the size of the stimulus. Some types of stimuli cause depolarization of the membrane, whereas others cause hyperpolarization. It depends on the specific ion channels that are activated in the cell membrane.

Is a receptor potential an action potential or a graded potential?

Receptor potentials are graded potentials: the magnitude of these graded (receptor) potentials varies with the strength of the stimulus. If the magnitude of depolarization is sufficient (that is, if membrane potential reaches a threshold), the neuron will fire an action potential.

How do graded potentials act as short distance signals?

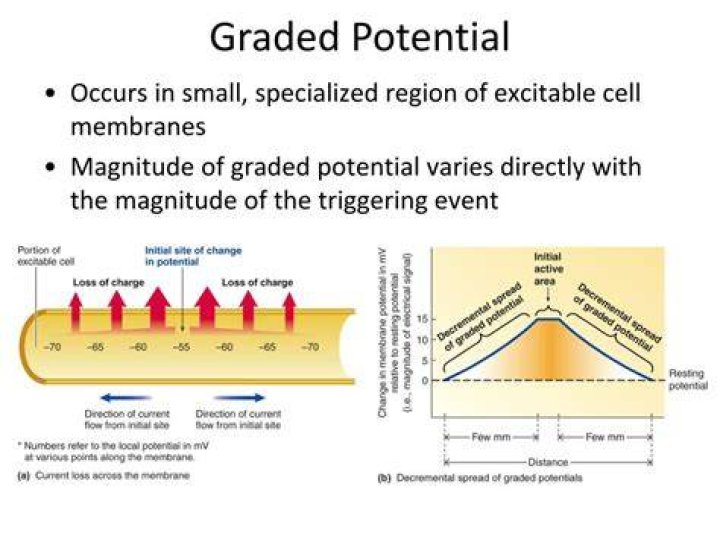

Graded Potentials (also called generator or receptor potentials) (the short distance signals) - short-lived, local changes in membrane potential; the signal dissipates with distance; their magnitude varies directly with the strength of the stimulus; they are essential in initiating action potentials.

Why do graded potentials decrease with distance?

Why do graded potentials decrease with distance? Graded potentials die out over a short distance. The reason for this is because the membrane will always default to the resting membrane potential because ions are free to diffuse across the membrane. The way nerves get around this is by insulating themselves in myelin.
