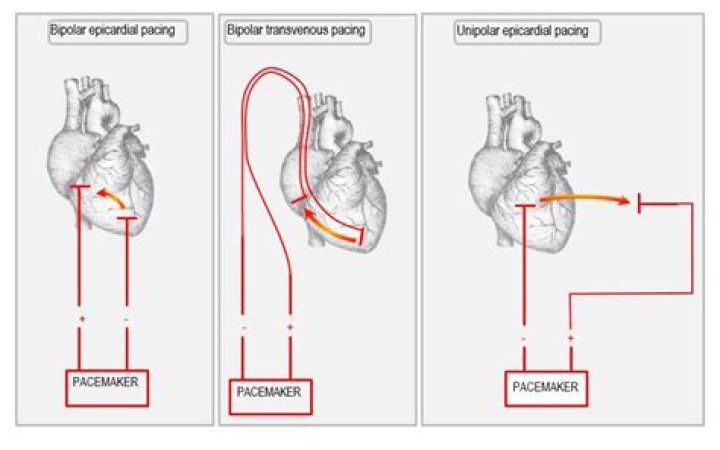

In temporary cardiac pacing, wires are inserted through the chest (during heart surgery), or a large vein in the groin or neck, and are directly connected to the heart. These wires are connected to an external pacing box, which delivers a current to the heart to make it beat normally.

Can pacing wires be left in?

Temporary epicardial pacing wires, implemented in patients during heart transplantation, are routinely removed before discharge. However, in some cases, these wires may remain in situ and are often considered as a contraindication for cardiovascular magnetic resonance (CMR) imaging in the future.

What is pacing wire in CABG?

Background: Temporary epicardial pacing wires are used routinely after coronary artery bypass graft (CABG) surgery and can cause rare, catastrophic complications. This study's purpose was to identify patient characteristics predicting the need for pacing after CABG surgery with the potential to limit their utilization.

How do you pull pacing wires?

Removal of epicardial pacing wires is accomplished by freeing the wire from the skin surface and applying gentle traction to the wire until it is released from the epicardium and can be pulled free of the body. This is an aseptic procedure; however the use of sterile gloves is not necessary.

What are pacing wires made of?

(A) It consists of four parts including: (1) a patch of biodegradable film (30 mm in diameter), (2) a unipolar electrode (3) lead covered with polyethylene, and (4) an atraumatic needle. (B) The electrode is from the Medtronic 6492 (Medtronic, Inc, Minneap- olis, MN) unipolar temporary pacing lead.

CTSNet Step-by-Step Series: Pacing Wires

Are pacemaker leads screwed in?

In the current cardiac device implantation practice, screw-in leads are important for stability of atrial and ventricular pacing. There are two screw-in leads, the Sweet Tip™ and the retractable screw-in lead; both are widely used.

What are epicardial wires?

Epicardial pacing wires or temporary pacing wires (TPW) allow rapid commencement of atrial and/or ventricular pacing in the event of a perioperative cardiac arrhythmia that has the potential to cause significant hemodynamic compromise.

Are pacing wires MRI safe?

Coronary artery stents, prosthetic cardiac valves, metal sternal sutures, mediastinal vascular clips, and epicardial pacing wires are not contraindications for MRI, in con- trast to pacemakers and implantable cardioverter-defi- brillators. Appropriate patient selection and precautions ensure MRI safety.

Where do pacemaker wires go?

The lead (or leads) is an insulated wire that is connected to the pulse generator on one end, with the other end placed inside one of the heart's chambers. The lead is almost always placed so that it runs through a large vein in the chest leading directly to the heart.

Is it safe to cut pacing wires flush with the skin instead of removing them?

We conclude that the retention of TEPW after cardiac surgery is not necessarily safe and may cause severe complications. We recommend that TEPWs should be completely removed when possible.

What is atrial pacing?

In AOO mode, the atrium is paced at a set rate regardless of atrial activity; this is asynchronous atrial pacing. In AAI mode, the atrium is sensed and the pacemaker is inhibited if the native atrial rate rises above the pacemaker set rate; this is demand atrial pacing.

What is sternal wire?

Again, sternum wires (aka sternal wires) are used to close the breastbone following the surgical procedure on the heart. The chest is then closed with special internal or external stitches.

What does a biventricular pacemaker do?

Treatment Overview. Cardiac resynchronization therapy (CRT) uses a special type of pacemaker called a biventricular pacemaker (say "by-ven-TRICK-yuh-ler") to treat heart failure. This pacemaker sends electrical pulses to make the ventricles pump at the same time.

Where are epicardial pacing wires placed?

Epicardial pacemaker wires are commonly placed by the surgeon after cardiac surgery. They are lightly sutured into the pericardium before closure of the thorax. The pacemaker wires are then pulled through the skin and secured externally, to the chest wall. Patients may have a single or a double set of electrodes.

When should a temporary pacemaker be removed?

Temporary epicardial pacing wires should be removed on instruction from a Consultant Cardiothoracic Surgeon, Cardiothoracic Registrar or SCP – this should be requested 24 hours prior to discharge and they should not be removed after 4pm.

What does a pacemaker control?

A pacemaker is a small device that's placed (implanted) in your chest to help control your heartbeat. It's used to prevent your heart from beating too slowly. Implanting a pacemaker in your chest requires a surgical procedure. A pacemaker is also called a cardiac pacing device.

How do Pacing wires work?

In temporary cardiac pacing, wires are inserted through the chest (during heart surgery), or a large vein in the groin or neck, and are directly connected to the heart. These wires are connected to an external pacing box, which delivers a current to the heart to make it beat normally.

How many wires do pacemakers have?

Pacemakers have one to three wires that are each placed in different chambers of the heart. The wires in a single-chamber pacemaker usually carry pulses between the right ventricle (the lower right chamber of your heart) and the generator.

Can you sleep on your left side with a pacemaker?

If you have an implanted defibrillator, sleep on the opposite side. Most defibrillators are implanted on the left side, so sleeping on the right side may feel more comfortable.

Can you have MRI with sternal wires?

Cardiac MRI is safe with joint replacements, coronary stents, ASD/PFO closure devices, sternal wires and most prosthetic heart valves. Patients with a history of metallic implants / shrapnel / prior neurosurgical clip placement are all individually evaluated prior to MRI.

How long after pacemaker can I have MRI?

“Nothing special had to be done during this emergency due to the pacemaker.” Patients with the SureScan pacemaker system must wait a minimum of six weeks after implantation before undergoing their first MRI scan.

Can you have an MRI with pacemaker wires?

The current guidelines from the American Heart Association and the Food and Drug Administration (FDA), however, do not support MRI in patients with pacemakers, nor do any of the device manufacturers' guidelines (except for new MRI-conditional devices).

How do you prevent Microshocks?

1. this is where procedures are performed within or near the heart -> protection from microshock is required.
2. examples: intracardiac pacing electrodes, intracardiac ECG electrodes, intracardiac catheters.
3. equipotential earthing, RCD's and line isolation monitors used.

When is epicardial pacing used?

Temporary epicardial pacing is commonly used for the diagnosis and treatment of arrhythmias in the acute post operative period after surgery for congenital heart disease.

What is VVI mode pacemaker?

A pacemaker in VVI mode denotes that it paces and senses the ventricle and is inhibited by a sensed ventricular event. The DDD mode denotes that both chambers are capable of being sensed and paced.
