ANSWER: m > 1 In AM, the modulation index m is defined as the ratio of the amplitude modulation signal to the amplitude of carrier signal. When m > 1, it is called over-modulation and it generates modulation with distortions in the envelope of the modulated signal, from which it is difficult to recover the information.

What is the value of modulation index?

A modulation index of 1 is the maximum level of modulation that can normally be applied and occurs when the envelope increases by a factor of 1, i.e. twice the steady state value, and falls to zero.

What is Overmodulation AM?

Overmodulation is the condition that prevails in telecommunication when the instantaneous level of the modulating signal exceeds the value necessary to produce 100% modulation of the carrier. ... Overmodulation results in spurious emissions by the modulated carrier, and distortion of the recovered modulating signal.

What is the formula for modulation index?

Answer. where H is the modulation index, M is the modulation alphabet size (e.g. M=2 for 2FSK / 2GFSK). For example, if one would like to have H = 1 modulation index, 40 kbps data rate, then the necessary deviation for 2FSK / 2GFSK modulation will be 20 kHz.

What is the modulating index?

Modulation index is defined as the ratio of the fundamental component amplitude of the line-to-neutral inverter output voltage to one-half of the available DC bus voltage.

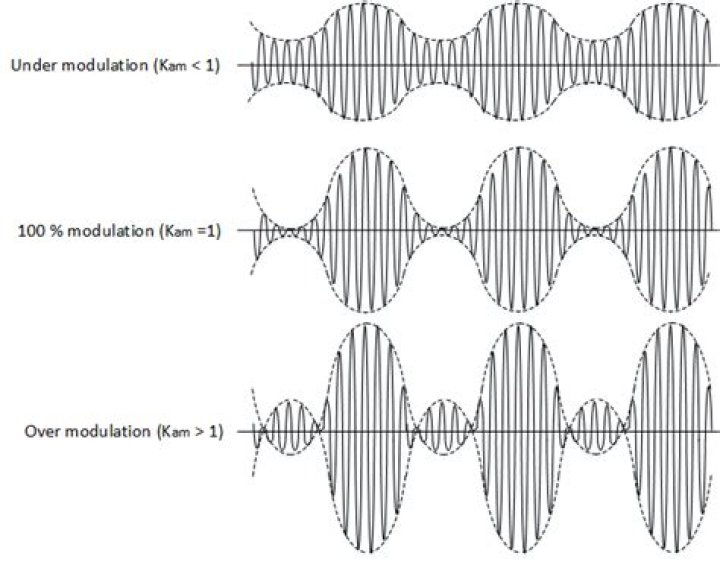

Modulation Index and its significance | Critical Modulation | Under modulation | Over modulation

What is desired value of modulation index in am?

The modulation index should be a number between 0 and 1. When m is greater than 1, severe distortion results into the modulated waveform. This condition results when Vm is greater than Vc and it is also known as over modulation. The ideal condition is when Vm is equal to Vc and m is equal to 1.

What is modulation index and percent modulation?

~ Multiplying the modulation index (m) by 100 gives the percent modulation. When the peak voltage of the modulating signal is equal to the peak voltage of the unmodulated carrier, the percent modulation is 100%. An unmodulated carrier has a percent modulation of 0%.

What are modulation index and sidebands?

The FM sidebands are dependent on both the level of deviation and the frequency of the modulation. ... For small values of modulation index, when using narrow-band FM, NBFM, radio communication systems, the signal consists of the carrier and the two sidebands spaced at the modulation frequency either side of the carrier.

What is modulation index PWM?

Therefore the item “Modulation index” (represented by m) defined by the ratio of the amplitude of the modulated wave to that of the carrier wave is introduced to describe the modulation state. When 0<m<1, the linear relationship between the input and PWM output voltage is maintained.

What is modulation and how modulation index is calculated?

Where, μ is Modulation index and it is equal to the ratio of Am and Ac. Mathematically, we can write it as. μ=AmAc (Equation 3) Hence, we can calculate the value of modulation index by using the above formula, when the amplitudes of the message and carrier signals are known.

What is under modulation and overmodulation?

It states the level of modulation that a carrier wave undergoes. ... It is called as Under-modulation. Such a wave is called as an under-modulated wave. If the value of the modulation index is greater than 1, i.e., 1.5 or so, then the wave will be an over-modulated wave.

Under what condition does overmodulation occur in amplitude modulation?

When Vm is greater than Vc (that is, m > 1), overmodulation occurs. Overmodulation, depicted below, results in distortion of the AM signal's envelope, and since the envelope holds the information, the recovered information signal is also distorted.

What is the mathematical relationship of the carrier and modulating signal voltages when overmodulation occurs?

What is the mathematical relationship of the carrier and modulating signal voltages when overmodulation occurs? Over-modulation is the condition where the value of modulation index, becomes greater than . That is, the amplitude of the modulating signal is higher than the amplitude of the carrier signal.

What is modulation index of AM signal?

In AM schemes, the modulation index refers to the amplitude ratio of the modulating signal to the carrier signal. With the help of Fast-Fourier-Transforms (FFT), the modulation index can be obtained by measuring the sideband amplitude and the carrier amplitude.

What is modulation index or factor?

In AM wave, the modulation index (m) is defined as the ratio of amplitudes of the modulating signal to the amplitude of carrier signal. i.e. , Where E_m is the amplitude of modulating signal.

What is modulation index in PWM inverter?

Modulation index is the ratio of peak magnitudes of the modulating waveform and the carrier. waveform. It relates the inverter's dc-link voltage and the magnitude of pole voltage. (fundamental component) output by the inverter.

What is modulation index in communication engineering?

Modulation index: It is the ratio of the peak value of the modulating signal to the peak value of the carrier wave. μ=Ac​Am​​ It is kept less than or equal to 1 to avoid distortion. Physical significance: It signifies the level of distortion or noise.

What are sidebands in AM?

In electronic signal transmission, a sideband is the portion of a modulated carrier wave that is either above or below the basic ( Baseband ) signal. ... In regular amplitude modulation ( AM ) transmission, both sidebands are used to carry a message.

What is BW am Wave?

The frequency band used for AM radio is about 550 to 1720 kHz. ... The full audio spectrum ranges up to 20 kHz, but AM radio limits the upper modulating frequency to 5 kHz. This results in a maximum bandwidth of 10 kHz.

How are sidebands calculated?

For example, if C:M is 1:2, that is, the modulator is twice the frequency of the carrier, then the first upper sideband is: C+M = 1+2 = 3. The second upper sideband is: C+2M = 1+(2x2) = 1+4 = 5. Another way to get the second sideband is to add M=2 to the value of the first sideband which is 3; i.e. (C+M) + M = 3+2 = 5.

What is maximum value of sideband power in AM at M 1?

What is the maximum value of sideband power in AM ? Ans. Maximum power in each sideband = P_c /4 ( at m=1 ) .

What is percent of modulation?

The percent modulation is defined as the ratio of the actual frequency deviation produced by the modulating signal to the maximum allowable frequency deviation.

What is Carson's rule for FM bandwidth?

Carson's rule estimates the FM signal bandwidth as BT = 2(75 + 15) = 180 kHz which is six times the 30 kHz bandwidth that would be required for AM modulation.

How is modulation signal calculated?

The equation for the overall modulated signal is obtained by multiplying the carrier and the modulating signal together. The constant A is required as it represents the amplitude of the waveform. Note also that the sidebands are separated from the carrier by a frequency equal to that of the tone.
