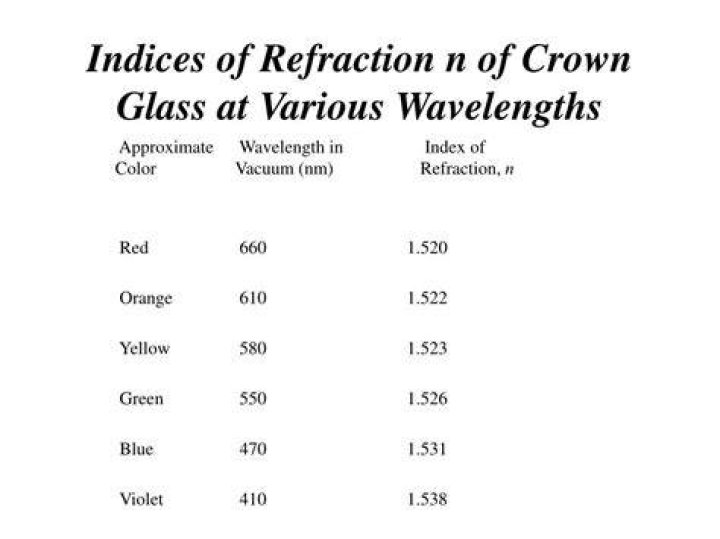

Some typical refractive indices for yellow light (wavelength equal to 589 nanometres [10⁻⁹ metre]) are the following: air, 1.0003; water, 1.333; crown glass, 1.517; dense flint glass, 1.655; and diamond, 2.417.

What is the refractive index of air and crown glass?

The refractive index of air, water, diamond and crown glass is 1.0003,1.33,2.42 and 1.52 respectively.

What is the crown type of glass?

Crown glass is a soda-lime-silica composite. Flint glasses contain 45-65% lead oxide - they are high-density, high-dispersion, high-refractive-index glasses. There are glasses which have barium oxide rather than lead oxide; they are called barium glasses.

What is the refracting index of glass?

The refractive index of glass is 1.5.

How do you find the refractive index of glass?

1. Figure 1 - Refraction of Light.
2. Formula 1 - Snell's Law. n ₁ × sin(θ ₁) = n ₂ × sin(θ₂)
3. Formula 2 - Numerical Aperture. NA (numerical aperture) = n × sin(θ)
4. Formula 3 - Refractive Index (or Index of Refraction) n = c/η

Index of refraction

What is refractive index find the refractive index of glass?

Some typical refractive indices for yellow light (wavelength equal to 589 nanometres [10⁻⁹ metre]) are the following: air, 1.0003; water, 1.333; crown glass, 1.517; dense flint glass, 1.655; and diamond, 2.417.

Is crown glass a liquid?

It is sometimes said that glass in very old churches is thicker at the bottom than at the top because glass is a liquid, and so over several centuries it has flowed towards the bottom. This is not true. In mediaeval times, panes of glass were often made by the "Crown glass" process.

How is crown glass made?

To make crown glass, blowers took a gob of molten glass and blew it into the shape of a very large balloon. They then flattened the balloon, transferred it to a solid metal rod and spun it very quickly so to create a large flattened disk. The disk was then cooled and cut into individual panes of glass.

Why is crown glass called crown glass?

So called from a crown-like shape given to it in the process of blowing.

What is refractive index Class 10th?

Refractive index is a measure of how much speed of light changes when it enter the medium from air. Absolute refractive index is the ratio of speed of light in vacuum or air to speed of light in the medium.

What does Snell's law of refraction state?

Snell's Law states that the ratio of the sine of the angles of incidence and transmission is equal to the ratio of the refractive index of the materials at the interface.

How do I use NCV?

When scientists talk about refraction, they use a formula. "n = c / v" "c" is the speed of light in a vacuum, "v" is the speed of light in that substance and "n" is the index of refraction.

What is borosilicate crown?

Borosilicate Crown Glass is used for windows, lenses, and prisms where transmission in the range 0.4µm to 1.4µm is desired. The refractive index varies from about 1.53 to 1.5 through this range. It is used for thermally non-critical applications.

What is flint and crown glass?

Crown and Flint Glasses

Glasses with an Abbe number of larger than 55, indicating low chromatic dispersion, are called crown glasses. ... Glasses with Abbe numbers below 50 are called flint glasses, which typically have relatively high refractive index values.

How can you tell crown glass?

Crown glasses are optical glasses with an Abbe number above 55 or above 50 – there is no general agreement on that limit. A high Abbe number indicates weak chromatic dispersion and tentatively a low refractive index, but not always lower than for flint glasses.

Which among the following has its refractive index closest to that of crown glass?

Canada balsam has its refractive index closest to that of crown glass among the given options.

When was crown glass made?

The process of making crown glass window panes was perfected by French glassmakers in the 1320s, notably around Rouen, and was a trade secret. Hence crown glass was not made in London until 1678. Crown glass is one of many types of hand-blown glass.

Is Glas a liquid?

Glass, however, is actually neither a liquid—supercooled or otherwise—nor a solid. It is an amorphous solid—a state somewhere between those two states of matter. And yet glass's liquidlike properties are not enough to explain the thicker-bottomed windows, because glass atoms move too slowly for changes to be visible.

What is crown prism?

A crown glass prism and a flint glass prism are combined to produce dispersion without deviation. Mean refractive indices of crown and flint glass are respectively 1.5 and 1.6. Ratio of angle of crown glass prism to that of flint prism is. (A).

What is float glass made of?

It all starts with a mixture of raw materials like sand, limestone, dolomite, soda, and salt cake. Next, these materials are melted in a furnace until they fuse together to form molten glass. To manufacture float glass, molten glass from a furnace is poured into a chamber containing a bed of molten tin.

How do you find the refractive index of glass and water?

Refractive index of glass with respect to air is (3/2) .

What is the speed of light in glass?

Light travels at approximately 300,000 kilometers per second in a vacuum, which has a refractive index of 1.0, but it slows down to 225,000 kilometers per second in water (refractive index of 1.3; see Figure 2) and 200,000 kilometers per second in glass (refractive index of 1.5).
