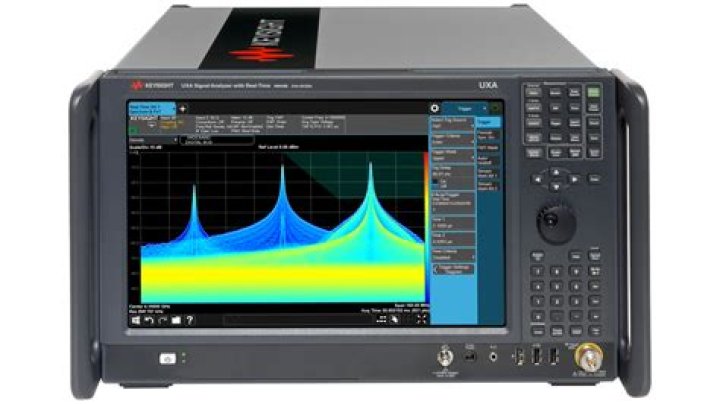

A spectrum analyzer measures the magnitude of an input signal versus frequency within the full frequency range of the instrument. The primary use is to measure the power of the spectrum of known and unknown signals.

What is meant by spectrum Analyser?

A spectrum analyzer is a device that measures and displays signal amplitude (strength) as it varies by frequency within its frequency range (spectrum). The frequency appears on the horizontal (X) axis, and the amplitude is displayed on the vertical (Y) axis.

What is spectrum analyzer and types?

Different Types of Analyzers. There are two broad categories of spectrum analyzers: swept-tuned analyzers and real-time analyzers. Both swept-tuned analyzers and real-time analyzers have been around for many years. ... A real-time spectrum analyzer displays the energy at all frequency components simultaneously.

Where are spectrum analyzers commonly used?

RF spectrum analyzers are test instruments used to look at signals in the frequency domain, i.e. a plot of signal strength against frequency. Spectrum analyzers are found in many laboratories and other areas where test instruments are needed to test and verify radio frequency RF performance.

What is spectral analysis used for?

Spectral analysis provides a means of measuring the strength of periodic (sinusoidal) components of a signal at different frequencies. The Fourier transform takes an input function in time or space and transforms it into a complex function in frequency that gives the amplitude and phase of the input function.

What is a Spectrum Analyzer | How Does a Spectrum Analyzer Work

What is the theory of spectrum analysis?

Spectral analysis or Spectrum analysis is analysis in terms of a spectrum of frequencies or related quantities such as energies, eigenvalues, etc. In specific areas it may refer to: Spectroscopy in chemistry and physics, a method of analyzing the properties of matter from their electromagnetic interactions.

What spectral means?

1 : of, relating to, or suggesting a specter : ghostly We felt a spectral presence in the old ballroom.

How do you use a spectrum analyzer to find a satellite?

1. Find out our location and the satellite's.
2. Choose the optimum location.
3. Align the satellite dish on a provisional basis.
4. Select the proper configuration for the satellite.
5. Set up the analyzer to take measurements.
6. MER adjustment and polarization.
7. Test signal quality.

What is the difference between a spectrum analyzer and a signal analyzer?

Spectrum analyzers measure the magnitude of an input versus signal frequency. ... A signal analyzer performs both functions together. Signal analyzers measure signals in the frequency domain, allowing us to see how much energy is present at particular frequencies.

What are the examples of spectrum analyzer?

Today, there are three basic types of analyzer: the swept-tuned spectrum analyzer, the vector signal analyzer, and the real-time spectrum analyzer.

How many types of analyzers are there?

Analyzers come in two types: analog and digital.

What does an analyzer do?

An analyser or analyzer is a tool used to analyze data. For example, a gas analyzer tool is used to analyze gases. It examines the given data and tries to find patterns and relationships. An analyser can be a piece of hardware or software.

What is a handheld spectrum analyzer?

The all-in-one handheld analyzer is an indispensable tool for routine measurement tasks in the field. The R&S®FSH handheld spectrum analyzer is a spectrum analyzer, network analyzer, cable and antenna analyzer, interference hunting analyzer and power meter.

What is meant by signal analyzer?

A signal analyzer is an instrument that measures the magnitude and phase of the input signal at a single frequency within the IF bandwidth of the instrument. It employs digital techniques to extract useful information that is carried by an electrical signal.

Where is oscilloscope used?

Oscilloscopes are often used when designing, manufacturing or repairing electronic equipment. Engineers use an oscilloscope to measure electrical phenomena and solve measurement challenges quickly and accurately to verify their designs or confirm that a sensor is working properly.

What is a modulation analyzer?

The 8901B modulation analyzer combines the capabilities of several RF instruments to give complete, accurate characterization of modulated signals in the 150 kHz to 1300 MHz frequency range. It very accurately measures modulation and recovers the modulation signal, determines RF frequency and meaures RF power.

Does spectrum install satellite dish?

No, Spectrum is a cable TV service and doesn't require the use of a satellite dish.

What is satellite beacon?

Beacon is the satellite's signal that signifies its presence to the world and can be tracked by almost any Ground Station or amateur radio operator. Generally, the signal in beacon primarily has the call sign of the satellite and may also have health data or telemetry data.

What is a spectrum in physics?

spectrum, in optics, the arrangement according to wavelength of visible, ultraviolet, and infrared light. ... Spectra may be classified according to the nature of their origin, i.e., emission or absorption.

What is high spectral resolution?

Spectral resolution describes the ability of a sensor to define fine wavelength intervals. ... Their very high spectral resolution facilitates fine discrimination between different targets based on their spectral response in each of the narrow bands.

What is normal spectrum?

a representation of a spectrum arranged upon conventional plan adopted as standard, especially a spectrum in which the colors are spaced proportionally to their wave lengths, as when formed by a diffraction grating.
