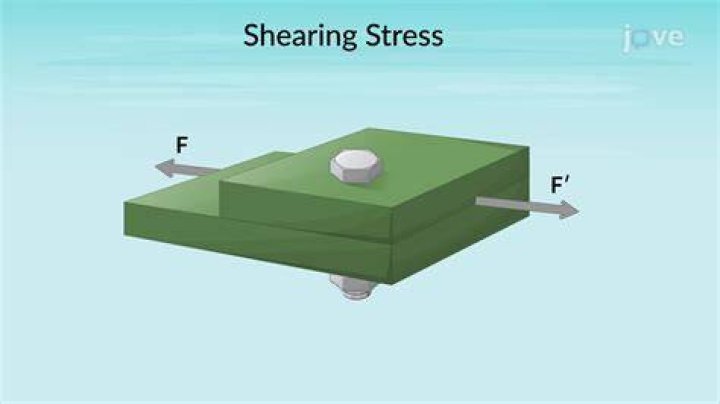

In solid mechanics, shearing forces are unaligned forces pushing one part of a body in one specific direction, and another part of the body in the opposite direction. When the forces are colinear, they are called compression forces.

What is meant by shear force?

Shear force is a force acting in a direction that's parallel to (over the top of) a surface or cross section of a body, like the pressure of air flow over an airplane wing.

What is shear force in simple words?

A shear force is a force applied perpendicular to a surface, in opposition to an offset force acting in the opposite direction. This results in a shear strain. In simple terms, one part of the surface is pushed in one direction, while another part of the surface is pushed in the opposite direction.

What is an example of a shear force?

Scissors

A pair of scissors is a classic example to demonstrate shear force. When an object, for example, a piece of paper is placed between the two metal blades of a pair of scissors, it gets divided into two parts only because of the shear force.

What is shearing force in fluid?

Shear rate is the rate at which a fluid is sheared or “worked” during flow. In more technical terms, it is the rate at which fluid layers or laminae move past each other. Shear rate is determined by both the geometry and speed of the flow.

What is Shear force and Bending Moment?

What is shear flow in fluids?

In fluid mechanics, the term shear flow (or shearing flow) refers to a type of fluid flow which is caused by forces, rather than to the forces themselves. In a shearing flow, adjacent layers of fluid move parallel to each other with different speeds. Viscous fluids resist this shearing motion.

What is shear force in viscosity?

The resistance to the action of shearing forces in a fluid appears only when the fluid is in motion. ... For fluids the shear stress τ is a function of the rate of strain dγ/dt. The property of a fluid to resist the growth of shear deformation is called viscosity.

What is shearing force and bending moment?

The algebraic sum of the vertical forces at any section of a beam to the right or left of the section is known as shear force. It is briefly written as S.F. The algebraic sum of the moments of all the forces acting to the right or left of the section is known as bending moment. It is written as B.M.

What is definition of shearing?

verb (used with object), sheared, sheared or shorn, shear·ing. to cut (something). to remove by or as if by cutting or clipping with a sharp instrument: to shear wool from sheep. to cut or clip the hair, fleece, wool, etc., from: to shear sheep. to strip or deprive (usually followed by of): to shear someone of power.

What is called shearing?

Shearing, also known as die cutting, is a process which cuts stock without the formation of chips or the use of burning or melting. Strictly speaking, if the cutting blades are straight the process is called shearing; if the cutting blades are curved then they are shearing-type operations.

How do I describe the shear?

A shear is a cutting implement that looks like a long pair of scissors. Also like scissors, this form of the noun is usually plural. You can cut metal, prune a tree, or cut up a chicken with shears. ... The verb shear also means to cause to break off or come apart with a cutting force.

What is meant by shear force diagram?

A shear force diagram is one which shows variation in shear force along the length of the beam. Bending moment may be defined as "the sum of moments about that section of all external forces acting to one side of that section".

What do you mean by shearing and how it is done?

Shearing : Once a sheep develops a thick coat of hair, it is shaved off to obtain wool. The process of cutting off the woolen fleece of sheep with a thin layer of skin is called shearing. It is done by the machines which removes the hair.

What is shearing in biology?

DNA shearing is an experimental process used to prepare DNA for analysis or other processing by the use of mechanical instruments to randomly cleave DNA. DNA is sheared to the desired fragment range. For instance, physical shearing can be done by probe sonication and nebulization.

What is meant by the term shear force when applied to materials used in vehicle manufacture and construction?

The shear strength of a material is defined as its ability to resist forces that cause the material's internal structure to slide against itself.

What is the difference between shear force and bending force?

Shear force is taken +ve if it produces a clockwise moment and it is taken -ve when it produces an anticlockwise moment. Bending Moment – Bending moment at any point along a loaded beam may be defined as the sum of the moments due to all vertical forces acting on either side of the point on the beam.

Why is shearing force important?

Shear characteristics are also important when characterizing the structural integrity of a bond between two surfaces. ... Though the direction of force differs between tensile (axial) and shear stresses, there is a relationship between the two.

What is the use of shear force diagram?

Shear and bending moment diagrams are analytical tools used in conjunction with structural analysis to help perform structural design by determining the value of shear force and bending moment at a given point of a structural element such as a beam.

How is shear force measured?

One simple method of measuring the shear force on a wheelchair is to use force plates [5,6]. Since force plates have a relatively large area, they can measure the total shear force. Attempts have also been made to place small sensors on the seating surface to investigate so-called local shear force in detail.

What is shear force in beam?

Shear force: The shear force at any section of a beam is determined as the summation of all the transverse forces acting on either side of the section. The sign convention adopted for shear forces is below. ... A graphical representation of the bending moment acting on the beam is referred to as the bending moment diagram.

What is shear stress in physics?

In physics, shear stress is a stress state in which the shape of a material tends to change (usually by "sliding" forces -- torque by transversely-acting forces) without particular volume change.

What is the difference between shear flow and elongational flow?

Most fluids however are non-Newtonian, meaning their viscosity is directly dependent on their shear rate (Shear Thinning or Thickening) or the deformation history (Thixotropic fluids). ... Extensional viscosity is the resistance of a fluid to extensional flow.

Where is shear flow maximum?

The maximum shear stress occurs at the neutral axis and is zero at both the top and bottom surface of the beam. Shear flow has the units of force per unit distance.

Why do you mean by shearing?

Shearing is the process of removing wool from body of a sheep by some proffesionals it is done by special tools when the hair on sheep's body grow long during the winters then in summers the wool is removed by the peoples and by the tools.
