In battery, overpotential is the potential difference (or voltage measure) between a theoretical or thermodynamically determined voltage and the actual voltage under operating conditions. ... In a galvanic cell overpotential means that less energy is recovered than thermodynamically determined.

What causes overpotential in battery?

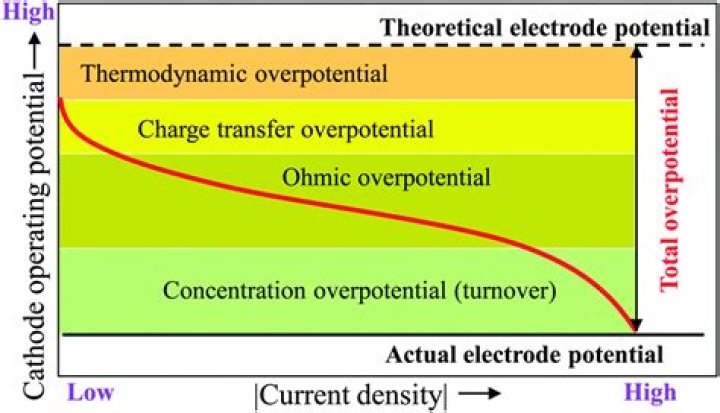

The magnitude of the overall overpotential is determined by several processes—the ohmic overpotential (caused by ionic conductivity of the electrolyte, electronic conductivity of the electroactive material, and the electronic conductivity of the current collector), the contact resistance (caused by the resistance ...

What is the meaning of overpotential?

In electrochemistry, overpotential is the potential difference (voltage) between a half-reaction's thermodynamically determined reduction potential and the potential at which the redox event is experimentally observed. The term is directly related to a cell's voltage efficiency.

Is overpotential and overvoltage same?

Overpotential: The difference in the electrode potential of an electrode between its equilibrium potential and its operating potential when a current is flowing. ... Overvoltage: The difference between the cell voltage (with a current flowing) and the open-circuit voltage (ocv).

How do you determine overpotential?

overpotential = (Experimental - thermodynamic)potential. Say, OER, the thermodynamic potential for OER is 1.23 V (vs SHE) and your obtained OER potential (onset) is 1.63 V, then the overpotential of OER for your material will be (1.63-1.23)V = 0.4 V.

Overpotential Explained

What does a negative overpotential mean?

Overpotentials may be positive or negative. The sign is determined by the nature of the process: overpotentials for reduction are negative, since a more negative potential is more reducing. Conversely, overpotentials for oxidation are positive, since a more positive potential is more oxidizing.

What is overpotential effect?

Overpotential is the difference between the theoretical half-reaction reduction potential and the actual voltage required. When present, the applied potential must be increased, making it possible for a different reaction to occur in the electrolytic cell.

How do you calculate overpotential concentration?

Concentration overpotential associated with mass transfer limitations at higher current densities, and is composed of both the anode and cathode concentration overpotentials:(18.7)ηcon=ηcona+ηconcwhere ηcona and ηconc are the anode and cathode concentration overpotential, respectively.

What is oxygen over voltage?

oxygen overvoltage in alkaline water electrolysis under high current densities. These include elimination of the. gas (oxygen) shielding anode, the electrolyte gas filling near anode, and concentrating polarization.

What is battery polarization?

Polarization refers to an effect reducing the performance of batteries. This effect is a displacement of electrode potential from the equilibrium value. ... All electrochemical reactions occur in a series of steps at the interface between electrode and electrolyte.

What is overpotential and polarization?

Polarization is the change of potential from a stabilized state, e.g. from the open-circuit electrode potential as the result of the passage of current. ... Often accomplished by formation of a film on the electrode surface. Polarization is sometimes also referred to as "overvoltage" or "overpotential".

What is activation Polarisation?

Activation polarization is the potential difference beyond the value of equilibrium needed to generate currents depending on the energy activation of a redox reaction. It is the activation energy that is required to have electrons transferred from electrodes into analyte.

What is meant by working electrode?

The working electrode is the electrode in an electrochemical system on which the reaction of interest is occurring. ... Depending on whether the reaction on the electrode is a reduction or an oxidation, the working electrode is called cathodic or anodic, respectively.

What is bubble voltage?

g.,processes involving liberation of gases ), some extra voltage is required than the theoretical value of the standard electrode potential. ... This extra voltage required is called over voltage or bubble voltage.

What is difference between galvanic and electrolytic cell?

Galvanic cells derives its energy from spontaneous redox reactions, while electrolytic cells involve non-spontaneous reactions and thus require an external electron source like a DC battery or an AC power source.

What is ohmic overpotential?

The ohmic overpotential is essentially, as its name suggests, given by the pure Ohm's law, where. (4.15) where R is the resistance (electronic and/or ionic) and I is the current. At higher current densities, the primary electron transfer rate (activation overpotential) is no longer limiting.

What is overvoltage corrosion?

The term overvoltage is used when the difference is expressed or measured in volts, which are an absolute value. ... In terms of hydrogen overvoltage, there is a difference in potential between the gas hydrogen or metal and an electrode in two conditions: When placed in a certain solution and corrosion does not occur.

What is discharge potential?

Discharge potential is dependent on the reduction potential of an atom. It is the tendency of an ion to gain electrons and get reduced. ... In other words it is the potential at which ion is discharged.

What is meant by exchange current density?

Exchange current density can be defined as the current density that flows equally in equilibrium and in both directions. The larger the exchange current density, the faster the reaction, and vice versa. When we talk of equilibrium, it means that there is no gain or loss experienced by the electrode material.

How does electrocatalysis work?

Electrocatalysis is a catalytic process involving oxidation and reduction reactions through the direct transfer of electrons, which requires electrocatalysts to lower the overpotential of the reactions. ... The process of surface catalytic reactions in photocatalysis is very similar to electrocatalysis.

What is concentration overvoltage?

Corrosionpedia Explains Concentration Overpotential

Electrolytic cells operate by pushing electrical currents throughout the system. The process of electrolysis serves as the driving force of the redox reaction towards a direction that will not happen at the same time. Overvoltage can occur within an electrolytic cell.

What are the factors affecting overvoltage?

It has been shown * that cathodic overvoltage is influenced largely by the physical condition of the metal, the degree of hardness, and previous treatment, such as electro-deposition at different current densities.

What is activation overvoltage?

Activation overpotential is the energy lost due to the slowness of electrochemical reactions at the anode and the cathode electrodes. ... Activation potential is the potential difference above the equilibrium value required to produce a current which depends on the activation energy of the redox event.

Does electrolysis happen in a battery?

Electrolysis converts electrical energy to chemical, requiring an electric current. If you use a battery to reverse the current flow, the silver goes into solution as Ag⁺ ions, and the Cu²⁺ ions plate out as copper metal. ... The voltage that is needed for electrolysis to occur is called decomposition potential.

What is overvoltage in electrolysis?

In practice, a voltage about 0.4–0.6 V greater than the calculated value is needed to electrolyze water. This added voltage, called an overvoltage, represents the additional driving force required to overcome barriers such as the large activation energy for the formation of a gas at a metal surface.
