Kirchhoff's loop rule states that the algebraic sum of potential differences, including voltage supplied by the voltage sources and resistive elements, in any loop must be equal to zero.

What is Kirchhoff's Loop Rule Class 12?

CBSE NCERT Notes Class 12 Physics Current Electricity. Loop law is also known as Kirchhoff's Second Law. It states that in a closed loop,algebraic sum of Emfsis equal to the algebraic sum of product of resistances and respective currents flowing through them.

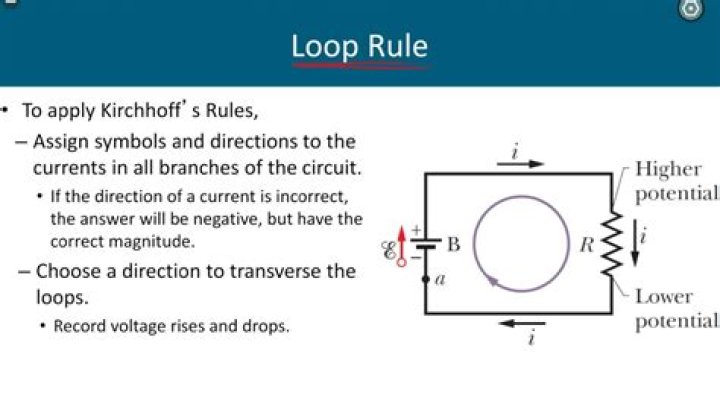

How do you use the loop rule?

To apply the loop rule, you must choose a direction to go around the loop. Then carefully and consistently determine the signs of the potential changes for each element using the four bulleted points discussed above in conjunction with Figure 4. Solve the simultaneous equations for the unknowns.

Why is Kirchhoff's loop law true?

KVL is true because voltage rises and drops are defined to be gains and losses, respectively, in electric potential energy of a +1\text{ C} charge. Since a loop starts and ends at the same place, the gains and losses around the loop must balance according to the conservation of energy.

Do Kirchhoff's rules always apply?

Kirchhoff's rules can be applied to any circuit, regardless of its composition and structure. Because combining elements is often easy in parallel and series, it is not always convenient to apply Kirchhoff's rules. To solve for current in a circuit, the loop and junction rules can be applied.

Kirchhoff's Voltage Law - KVL Circuits, Loop Rule & Ohm's Law - Series Circuits, Physics

Is Kirchhoff's law accurate?

large resistances. With the exception of the voltage law applied to high resistance circuits, we conclude that Kirchhoff's Laws accurately predict the behavior of resistive circuits.

What is the loop rule equation?

The loop equation can be used to find the current through the loop: I=VR1+R2+R3=12.00V1.00Ω+2.00Ω+3.00Ω=2.00A.

What is the significance of loop rule?

The Loop Rule: The sum of all the potential differences around a closed loop equals zero. ... In a circuit there are charges moving through these potential differences, so another way to say the rule is that when a charge goes around a complete loop, returning to its starting point, its potential energy must be the same.

What is Kirchhoff's law in physics?

1 : a statement in physics: in an electric network the algebraic sum of the currents in all the branches that meet at any point is zero.

What is Kirchhoff's law in chemistry?

Kirchhoff's Law describes the enthalpy of a reaction's variation with temperature changes. In general, enthalpy of any substance increases with temperature, which means both the products and the reactants' enthalpies increase.

Do circuits with capacitors follow Kirchhoff's rules?

Kirchhoff's loop rule is an application of the conservation of energy. If you move through a circuit in a closed loop adding all voltages across the resistors and capacitor, you'll get a net change of zero voltage. ... When the capacitors are charged, the current stops flowing, which is the definition of steady state.

What is Kirchhoff's first law?

Kirchhoff's first law applies to currents at a junction in a circuit. It states that at a junction in an electrical circuit, the sum of currents flowing into the junction is equal to the sum of currents flowing out of the junction.

Can you give two applications of Kirchhoff's law in daily life?

# The current of distribution in the various branches of a circuit can easily be found out by applying the Kirchhoff Current law at the different junction points and the nodes in the circuit. # After that Kirchhoff Voltage law is applied to each possible loop in the circuit generates algebraic equation for every loop.

What is the loop rule quizlet?

The loop rule: the currents entering a junction are equal to the currents leaving a junction.

What is a loop in a circuit?

A loop in a circuit is any closed path along a circuit that does not encounter the same node more than once. The polarity of a voltage across an element changes the sign of the voltage in the sum of a loop.

What are the limitations of Kirchhoff's laws?

Limitations of Kirchhoff's Laws

The limitation of Kirchhoff's both laws is that it works under the assumption that there is no fluctuating magnetic field in the closed loop. Electric fields and emf could be induced which causes the Kirchhoff's loop rule to break in presence of a variable magnetic field.

What is your conclusion about Kirchhoff's rules?

Kirchhoff's Law states that the emissivity of a surface is equal to its absorbance, where the absorbance of a surface is the ratio of the radiant power absorbed to the radiant power incident on the surface. It concludes that good radiators of thermal radiations are good absorbers.

How do you verify Kirchhoff's current law?

To verify the Kirchoff's laws for the given network with the theoretical calculations. Sum of all currents entering a node is zero. Sum of currents entering the node is equal to sum of currents leaving the node. Sum of voltages around any loop in a circuit is zero.

What does Kirchhoff's current law states?

Kirchhoff's current law (1st Law) states that the current flowing into a node (or a junction) must be equal to the current flowing out of it. ... This law is a consequence of both charge conservation and the conservation of energy.

Which of the following is the correct Kirchhoff's loop rule?

Kirchhoff? s loop rule It states that the algebraic sum of potential drops across all resistors plus those across sources in a circuit is zero.

Are Kirchhoff's law applicable for AC or DC?

Kirchhoff's laws are applicable for DC as well as AC circuits. They can be accurately used for DC circuits and low-frequency AC circuits. In the case of AC though, summation of current should be done in vector form or using the instantaneous value for the AC components of the circuit.

Does enthalpy increase with pressure?

Enthalpy is the heat content of a system as a function of entropy and pressure. As the pressure increases ( ΔP>0 ), so does enthalpy, and vice versa.
