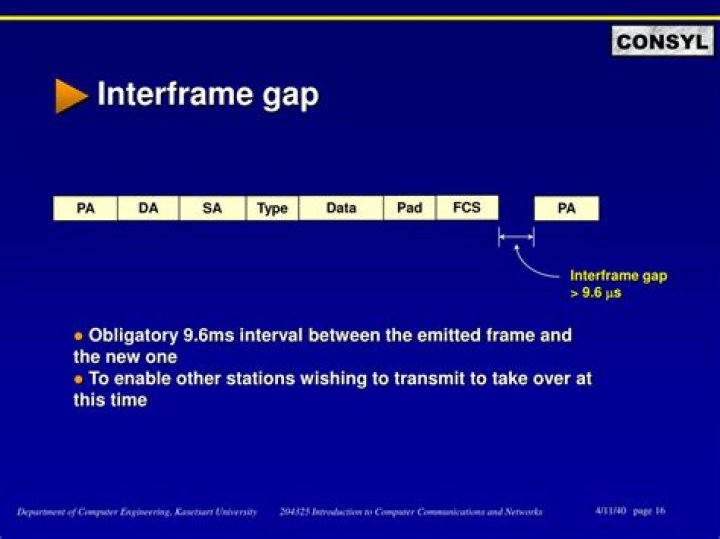

The interframe gap is a 96 bit time delay provided between frame transmissions to allow the network interfaces and other components some recovery time between frames. ... Too small a gap between frames can overrun the frame reception rate of network interfaces, leading to lost frames.

What is an interframe gap?

Interframe Gap (IFG)

The delay or time gap between frames. Also called interpacket gap.

What is interframe gap idle time between?

Explanation: The inter-frame gap is the idle time for the receiver between the incoming frame flow.

What is frame length?

Length – Length is a 2-Byte field, which indicates the length of entire Ethernet frame. This 16-bit field can hold the length value between 0 to 65534, but length cannot be larger than 1500 because of some own limitations of Ethernet. Data – This is the place where actual data is inserted, also known as Payload.

What is maximum frame length?

With the normal untagged Ethernet frame overhead of 18 bytes, the Ethernet maximum frame size is 1518 bytes. If a 1500 byte IP packet is to be carried over a tagged Ethernet connection, the Ethernet frame maximum size needs to be 1522 due to the larger size of an 802.1Q tagged frame.

گپ تایم - چند سوالی امید / GapTime

What is the minimum frame size?

In the standard IEEE 802.3 Ethernet specification, the minimum frame size was 64 bytes and the maximum was 1518 bytes (since expanded to 1522 bytes). The preamble consists of 7 bytes followed by a single byte as a start frame delineator.

Why is the minimum frame size 64 bytes?

Frames must be at least 64 bytes long, not including the preamble, so, if the data field is shorter than 46 bytes, it must be compensated by the Pad field. ... Thats why it is/has a minimum of 64 Bytes.

What is the maximum frame size for Ethernet?

Multi-Protocol Label Switching (MPLS) increases the maximum Ethernet frame size to 1518 bytes + (n * 4 bytes), where n is the number of stacked labels.

How do I calculate my frame rate?

To calculate frames per second, you just take the number of rendered frames and divide it by the seconds passed.

What is the standard length of MAC address?

A MAC address consists of 48 bits, usually represented as a string of 12 hexadecimal digits (0 to 9, a to f, or A to F); these are often grouped into pairs separated by colons or dashes.

What is frame format of Ethernet?

Ethernet frame format is a continuous pattern of alternative occurring 0's and 1's which indicates when the frame is starting and creates synchronization among the sender and receiver. Ethernet frame exist in data link layer of the OSI model (which has 7 layers in it) and is a PDU (aka protocol data unit).

What are the standard data rates for Ethernet?

A standard Ethernet network can transmit data at a rate up to 10 Megabits per second (10 Mbps). Other LAN types include Token Ring, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, Fiber Distributed Data Interface (FDDI), Asynchronous Transfer Mode (ATM) and LocalTalk.

What goes at the end of an Ethernet frame?

The frame ends with a frame check sequence (FCS), which is a 32-bit cyclic redundancy check used to detect any in-transit corruption of data.

What is IFG in Ethernet?

IFG (Inter Frame GAP)

This time gap is called Inter Frame GAP. The IFG is 9.6 ms for Fast Ethernet, is transmissin timing of about 12 bytes in 10 Mbps and 0.096 in case of Gigabit Ethernet. The IFG will allow the signal time to propagate through the receiver electronics at the destination.

What did the original Ethernet use?

In the original Ethernet the broadcast medium was coaxial cable, forming a single-channel baseband serial bus operating at 3Mbps or 10Mbps. 802.3 now also allows the use of twisted-pair and optical fibre in addition to "Ethernets" based on switches rather than conventional broadcast media.

What is the standard for Gigabit Ethernet over long haul copper UTP?

2.2 1000Base-T

1000Base-T is a standard for Gigabit Ethernet over long haul copper UTP. The standards committee's goals are to allow up to 25-100 m over 4 pairs of Category 5 UTP. This standard is being developed by the 802.3ab task force and is expected to be completed by early 1999.

Do jumbo frames increase performance?

Jumbo frames were introduced to help improve the overall performance of Ethernet networks using gigabit and faster Ethernet networks. ... Enabling jumbo frames, increases the frame size, reducing the number of frames the switch needs to process and reduces the overhead and CPU cycles needed on the switch.

Why is ethernet MTU 1500?

The MTU (Maximum Transmission Unit) states how big a single packet can be. ... Since the backbone of the internet is now mostly made up of ethernet links, the de facto maximum size of a packet is now unofficially set to 1500 bytes to avoid packets being fragmented down links.

What happens when an Ethernet frame is less than 64 bytes in length?

It is considered a "collision fragment" or "runt frame" and is automatically discarded by receiving stations. What happens to any frame less than 64 bytes in length? ... All MAC addresses with the same OUI must be assigned a unique value in the last 3 bytes.

What is the significance of keeping a minimum frame length?

The minimum frame size on Ethernet is so that by the time the beginning of a frame gets all the way across a maximum-width network, if a collision is detected there on the far side of the network, there's still enough time for the jam signal (collision detection notification) to make it all the way back across the ...

What is the minimum and maximum frame length for 10 Mbps Ethernet?

The minimum frame length for 10 Mbps • The minimum frame length for 10-Mbps Ethernet is 64 bytes; the maximum is 1518 bytes.

What is minimum frame length for CSMA CD protocol with 4.5 Mbps?

To make CSMA/CD work, it must be impossible to transmit an entire frame in this interval. At 1 Gbps, all frames shorter than 10,000 bits can be completely transmitted in under 10 µsec, so the minimum frame is 10,000 bits or 1250 bytes.

Why the minimum length of an Ethernet frame is 512 bits?

Ethernet minimum packet size is 64 bytes for 10/100M but 512 bytes for 1000M. Minimum packet size is chosen on the basis that in case of half duplex, the sender should be able to detect collision before it finishes sending the frame.

Why does Ethernet have a minimum and maximum frame length?

Since data travels at a finite speed a minimum packet size was required to ensure that if a collision happens it happened everywhere. The larger you make the minimum packet size the larger and/or faster you can make the network before CSMA/CD breaks down.
