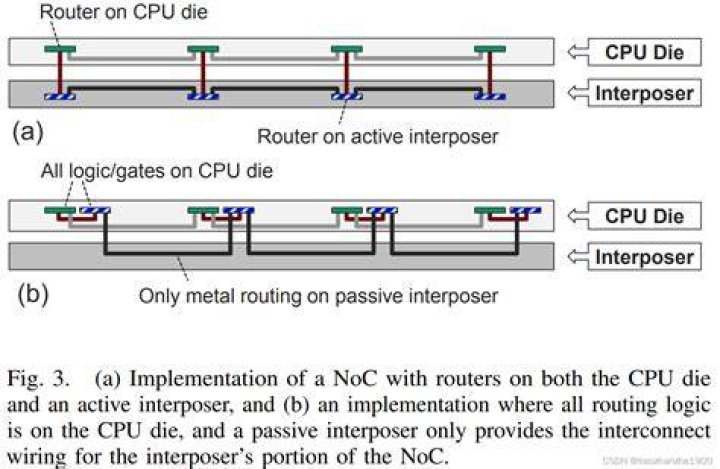

The interposer could be a passive component or an active component with circuit. The passive interposer has an advantage in a certain area and the active interposer also has its own. The depletion area in silicon substrate will be considered as well to increase the level of accuracy.

What is an interposer layer?

An interposer is an electrical interface routing between one socket and connection to another. The purpose of an interposer is to spread a connection to a wider pitch or to re-route a connection to a different connection, using RDL or Redistribution layers.

What is active interposer?

The active interposer integrates: voltage regulators fully integrated without passives for efficient power management of the 3D-stacked chiplets. ... energy-efficient 3D-plugs for dense high-throughput, inter-layer communication, and. a memory-IO controller and the physical layer (PHY) for socket communication.

What is interposer substrate?

Substrates are parts that provide the package with mechanical base support and a form of electrical interface that would allow the external world to access the device housed within the package. An interposer is an intermediate layer often used for interconnection routing or as a ground/power plane.

What is an interposer PCB?

A new player is coming in to help make PCB real estate more available on small flex and flex-rigid circuits undergoing microelectronics assembly. It's called an interposer, and it's a type of connection that takes connections from one side of the substrate or board or material towards the other side.

2.5D ICs or interposer technology

What is meant by interposer?

An interposer is an electrical interface routing between one socket or connection to another. The purpose of an interposer is to spread a connection to a wider pitch or to reroute a connection to a different connection. Interposer comes from the Latin word "interpōnere", meaning "to put between".

What is interposer in semiconductor?

An interposer can be defined as a silicon chip that can be used as a bridge or a conduit that allows electrical signals to pass through it and onto another element. ... The job of an interposer is to either spread the signal to a wider pitch or take the connection to a different socket on the board.

What is 2.5 D and 3D packaging?

How is 3D Structure different than 2.5D? In 2.5D structure, there is no stacking of dies on dies, but dies are on Silicon Interposer. The dies are packed into a single package in a single plan and both are flip-chipped on a silicon interposer. In 3D structure, Interposer and dies are stacked one above another.

What is a Chiplet?

What Are Chiplets? A chiplet is one part of a processing module that makes up a larger integrated circuit like a computer processor.

What is 2.5D interposer?

2.5D – also called interposer technology – integrates several electronic devices inside a single package by assembling them side-by-side on a shared base. The base, an interposer, provides connectivity. ... The interposer is essentially a large bare die, designed specifically to accommodate those smaller dies.

What is Foveros?

Foveros Omni is a technology that allows for the top die to overhang from the base die and copper pillars are built from the substrate up to the top die to provide power. With this technology, if power can be brought in from the edges of the top die, then this method can be used.

What is 3D IC technology?

A three-dimensional integrated circuit (3D IC) is a MOS (metal-oxide semiconductor) integrated circuit (IC) manufactured by stacking silicon wafers or dies and interconnecting them vertically using, for instance, through-silicon vias (TSVs) or Cu-Cu connections, so that they behave as a single device to achieve ...

What is Silicon Bridge?

Abstract: Silicon Bridge is a dense multichip packaging architecture that enables high die-to-die interconnect density and corresponding applications.

What is BGA package?

B. G. (Ball Grid Array) A popular surface mount chip package that uses a grid of solder balls as its connectors. Available in plastic and ceramic varieties, BGA is noted for its compact size, high lead count and low inductance, which allows lower voltages to be used.

Are chips 2D?

The team's new logic-in-memory chip is the first to be made with a 2D material, comprising a single layer of MoS₂ that's just three atoms thick. ...

What is 3D stacked memory?

3D stacking enables stacking of volatile memory like DRAM directly on top of a microprocessor, thereby significantly reducing transmission delay between the two. The 3D- stacked memory also improves memory capacity and cost of non-volatile storage memory like flash or solid state drives.

What is 3D packaging semiconductor?

3D semiconductor packaging refers to an advanced packaging technology of semiconductor chips in which two or more layers of active electronic components are stacked together and interconnected vertically as well as horizontally to perform as a single device.

What is Intel Ponte Vecchio?

If there was any question of Intel's desire to embrace multi-die/ multi-tile and multi-fab, this is the product that will put those questions to rest. ... The Intel Ponte Vecchio Xe HPC GPU is a Spaceship of a GPU.

What is Intel Meteor Lake?

Meteor Lake processor will be Intel's first client PC CPU to adopt a multi-tile design with Foveros packaging technology: a compute die with an unknown number of Ocean Cove high-performance cores and energy-efficient Gracemont cores, a GPU die with 96 EUs – 192 EUs, and an SoC die packing such units as a memory ...

What is the difference between 2.5D and 3D?

Working in two and a half dimensions (2.5D) means you are cutting a part that has multiple flat features at varying depths. ... Most simple CAM programs deal with 2.5D parts. Working in three dimensions (3D) means that you have the ability to control at least three axes simultaneously.

What is a multichip processor?

A multi-chip module (MCM) is an electronic package consisting of multiple integrated circuits (ICs) assembled into a single device. An MCM works as a single component and is capable of handling an entire function.

Does Intel use Chiplet?

Intel Embraces Chiplets

Using the technology, “we are now able to increase core counts, caches, memory, and I/O,” Biswas said. If this sounds familiar, that's because AMD did the same thing four years ago with its EPYC, ThreadRipper, and later Ryzen processor families.

What is Chiplet in VLSI?

In theory, the chiplet approach is a fast and less expensive way to assemble various types of third-party chips, such as I/Os, memory and processor cores, in a package. With an SoC, a chip might incorporate a CPU, plus an additional 100 IP blocks on the same chip.
