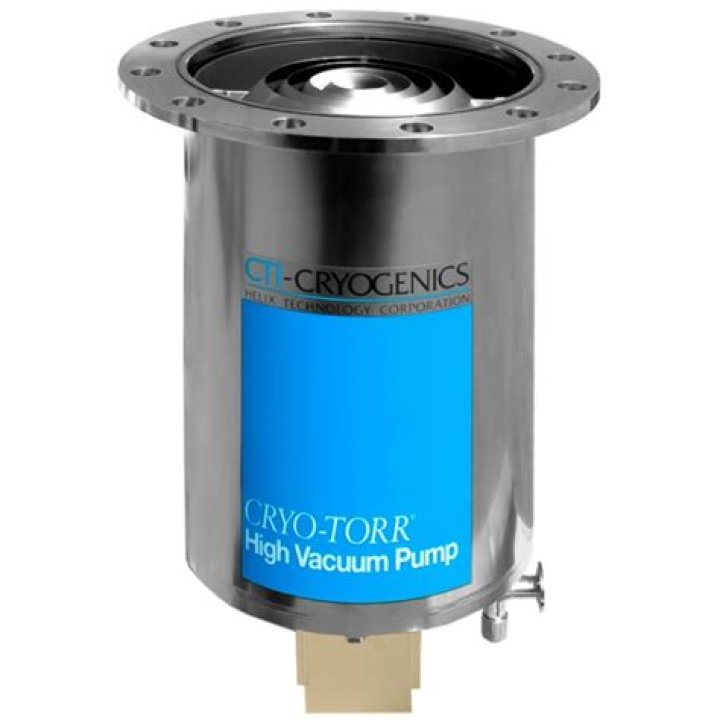

A cryopump or a "cryogenic pump" is a vacuum pump that traps gases and vapours by condensing them on a cold surface, but are only effective on some gases. The effectiveness depends on the freezing and boiling points of the gas relative to the cryopump's temperature.

What is a cryo pump used for?

What is a cryopump? A cryopump is vacuum pump that traps gases and vapors by condensing them on a cold surface. For efficient evacuation under ultra-high vacuum, the vapor pressure for condensation, or the equilibrium pressure for adsorption must be less than 10^-8Pa. Figure 1 shows vapor pressures of different gases.

How do you start a cryogenic pump?

Start Up（Rough Pumping and Cooldown）

（1）Turn ON the main power. （2）Circulate cooling water for water-cooling type compressor unit. （3）Rough pump inside the cryopump to 40Pa. (Do not rough pump to 13 to 20Pa or below because it may cause oil contamination by oil backflow of rotary pump.

What is cryogenic centrifugal pump?

A centrifugal cryogenic pump is typically used to transfer cryogenic liquids between a storage tank or tanker car because of its ability to produce and maintain a high flow rate.

How do you regen a cryo pump?

1. Isolate pump from vacuum chamber - usually a gate valve is used. ...
2. Turn off the cold head power. ...
3. Obtain a source of dry nitrogen. ...
4. If a heat tape is installed around the pump's vacuum jacket, plug the tape in. ...
5. Allow the pump's internal cryopanel to reach ambient temperature.

How a Cryo Pump Works

What is a cryo pump used for NMS?

Game description

An advanced, self-regulating hybrid material, the Cryo-Pump distributes heat across itself with near perfect efficiency, making it vital in the creation of thermal regulators. Crafted from Hot Ice and Thermic Condensate.

What do you mean by cryogenic?

Cryogenics is the production of and behavior of materials at very low temperatures. ... Rapidly moving molecules have a higher temperature than slower moving molecules. For example, while water transforms from a liquid to a solid at 32° F (0° C), cryogenic temperatures range much lower; from -150°C to -273° C.

Why are cryogenic pumps used Mcq?

Why are cryogenic pumps used? Explanation: Cryogenic pumps are used to handle very low temperature liquids.

What is a roughing vacuum pump?

A roughing pump is any vacuum pump (typically mechanical) used to initially evacuate a vacuum system, as a first stage towards achieving high vacuum or ultra high vacuum. The term "roughing pump" derives from the vacuum range it works in, "rough vacuum", above 1x10⁻³ torr (0.1 Pa).

Why are booster pumps used?

How are booster pumps used? Booster pumps increase low water flow in water systems or industrial equipment and transport water from a lake, pond, or storage tank for use in a home or commercial building. ... A booster pump is also used to re-pressurize water from a storage tank and send it to a faucet or throughout a home.

What is cryogenic compressor?

Cryogenic compressors are designed for compressing inert gases. Compact design. Option of connecting an intercooler. High efficiency. Long serviceability and maintenance-free operating period.

How does a liquid nitrogen pump work?

Nitrogen pumping unit is a highly sophisticated device which performs several simultaneous functions in order to convert nitrogen from liquid to a gaseous phase. ... It then pumps the liquid nitrogen to high pressure before it supplies heat to transform the liquid nitrogen into a gaseous phase.

How does a vacuum pump works?

Vacuum pumps essentially move gas molecules from one region to the next to create a vacuum by changing high and low-pressure states. As molecules are removed from the vacuum space, it becomes exponentially harder to remove additional ones, thus increasing the vacuum power required.

How do you maintain cryogenic temperature?

First, a gas is pressurized and cooled to an intermediate temperature by contact with a colder gas or liquid. Then, the gas is expanded, and its temperature drops still further. Ordinary household refrigerators and air conditioners work on this principle, using freon, which has a relatively high boiling point.

How does a cryocooler work?

In most cases cryocoolers use a cryogenic fluid as the working substance and employ moving parts to cycle the fluid around a thermodynamic cycle. ... The returning low-pressure fluid passes through the heat exchanger to precool the high-pressure fluid before entering the compressor intake. The cycle is then repeated.

What is backing and roughing?

Roughing is used to pump down the pressure of the chamber usually by rotor/stator motor to a level from where high vacuum pump can be operated. ... Backing is used to create low pressure in the High vacuum line so that the high vacuum pump (TMP) can be operated in the chamber..

What are the types of vacuum pump?

Different types of pumps for these vacuum ranges can then be divided into Primary (Backing) Pumps, Booster Pumps and secondary (High Vacuum) Pumps: High, very high and ultra-high vacuum pressure ranges. There are two basic categories of vacuum pump: Gas Transfer Pumps and entrapment or capture pumps (Figure 1).

What is Foreline vacuum pump?

Foreline traps are placed between a high-vacuum pump and backing pump or between a chamber and roughing pump. The primary application is preventing oil vapor migration from the backing/rough pump backwards along the foreline (backstreaming).

Why is priming necessary?

Priming is done to put pump into working order by filling or charging with water. Why Priming is required ? Pressure developed by the impeller of centrifugal pump, is proportional to the density of the fluid in the impeller. If the impeller is running in air, it will produce only a negligible pressure.

What is the lowest wastewater flow in hospitals?

What is the lowest wastewater flow in hospitals? Explanation: The unit lpcd stands for litres per capita per day and gpcd stands for gallons per capita per day. 40 lpcd indicates the minimum water usage for places like kids play home and schools. 700 lpcd is for hospitals.

Do centrifugal pumps need priming?

In short, to avoid failures, centrifugal pumps must always be primed before operating. Positive displacement pumps are self-priming with suction lift capability, but always check the operation manual or confer with an engineer to ensure the pump will properly function at start up without priming first.

What are cryogenic materials?

Liquid nitrogen, liquid oxygen and carbon dioxide are the most common cryogenic materials used in the laboratory. ... Hazards may include fire, explosion, embrittlement, pressure buildup, frostbite and asphyxiation.

Why do rockets use cryogenic fuel?

A Cryogenic rocket stage is more efficient and provides more thrust for every kilogram of propellant it burns compared to solid and earth-storable liquid propellant rocket stages.

What is Cryo temperature?

cryogenics, production and application of low-temperature phenomena. The cryogenic temperature range has been defined as from −150 °C (−238 °F) to absolute zero (−273 °C or −460 °F), the temperature at which molecular motion comes as close as theoretically possible to ceasing completely.
