Top dead center is the point when the piston of the number one cylinder in an engine is at its highest point, and on the compression stroke of the engine's four-stroke cycle.

How do you determine the top dead center on a compression stroke?

Mark your balancer with a marker, and then slowly rotate the crankshaft by hand in the opposite direction; until you come up against the stop again. Mark your balancer again. Measure the distance between the two marks and divide by two. As a result, This is your (TDC).

What happens at TDC of compression stroke?

Near the top of the compression stroke, the spark plug fires. The piston reaches TDC. As the piston reaches TDC, the air/fuel mixture burns, increasing the pressure inside the cylinder. This forces the piston back down the cylinder.

How can you tell the difference between an exhaust stroke and a compression stroke?

How can you tell the difference between an exhaust stroke and a compression stroke? Compression stroke happens after the intake valve closes. Exhaust stroke happens with the exhaust valve open. Just think about how an engine works and watch both the valves and the piston.

During which stroke does the exhaust valve open?

On the power stroke, the combustion pushes the piston down in the cylinder. During this stroke, it is necessary to open the exhaust valve before the piston gets to the bottom of the cylinder. This will allow the excess pressure in the cylinder to "vent out" just before the piston reaches the bottom of the stroke.

Compression Stroke & Top Dead Center

What happens in each stroke of a 4 stroke engine?

An internal-combustion engine goes through four strokes: intake, compression, combustion (power), and exhaust. As the piston moves during each stroke, it turns the crankshaft. Encyclopædia Britannica, Inc.

What is compression stroke?

: the stroke in the cycle of an internal-combustion engine in which the gases are compressed before firing.

What happens on the power stroke?

Power stroke: With both valves closed, the spark plug—located in the picture between the intake and exhaust valve will fire, igniting the air/fuel mixture. The resulting explosion forces the piston downward and rotates the crankshaft, which in turn propels the vehicle.

What is meant by top dead center?

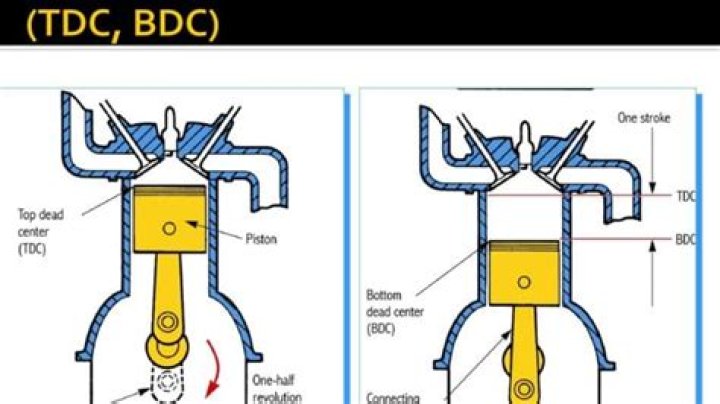

Top dead center is the position of an engine's piston when it is at the very top of its stroke. The piston has moved up towards the top dead center. The piston is said to be at top dead center when it has moved to a position where the cylinder volume is a minimum.

What is top dead center of a piston?

In a reciprocating engine, the dead centre is the position of a piston in which it is either farthest from, or nearest to, the crankshaft. The former is known as Top Dead Centre (TDC) while the latter is known as Bottom Dead Centre (BDC).

Are all valves closed at TDC?

It's up to you. Both valves should be closed if it's TDC at the end of the compression stroke. If it's TDC at the end of the exhaust stroke, you should be in the valve overlap zone, with the intake valve partially open and on its way to opening fully, and the exhaust valve partially open on its way to closing.

How do you find top dead center without timing marks?

1. Park the vehicle on a level, paved surface and set the emergency brake.
2. Use a ratchet and spark plug socket to remove the spark plug from the number one cylinder.

Why is the compression stroke important?

The compression stroke is when the trapped air-fuel mixture is compressed inside the cylinder. ... Compressing the air-fuel mixture allows more energy to be released when the charge is ignited. Intake and exhaust valves must be closed to ensure that the cylinder is sealed to provide compression.

What is the purpose of compression stroke?

The compression stroke is the second of four stages in a four-stroke engine. In this stage, the fuel/air mixture (or air alone, in the case of a direct injection engine) is compressed to the top of the cylinder by the piston. This is the result of the piston moving upwards, reducing the volume of the chamber.

What happens to the intake and exhaust valve during compression stroke?

As the piston travels back down the cylinder, the exhaust valve goes fully shut and the intake valve goes fully open and starts to shut. Compression stroke. The piston is at BDC and starts to travel up the cylinder. The exhaust valve is still shut and the intake valve goes fully shut.

What comes after the compression stroke?

Once the piston makes it to the end of the compression stroke, the spark plug fires again to repeat the cycle. It's called a two-stoke engine because there is a compression stroke and then a combustion stroke. In a four-stroke engine, there are separate intake, compression, combustion and exhaust strokes.

What happens to the piston and gases during compression stroke?

As the piston is pushed to the right, the volume is reduced and the fuel/air mixture is compressed during the compression stroke. ... As the volume is decreased because of the piston's motion, the pressure in the gas is increased, as described by the laws of thermodynamics.

What is the difference between two stroke and four stroke engine?

In a 2-stroke engine, all five functions of the cycle are completed in only two strokes of the piston (or one revolution of the crankshaft). In a 4-stroke engine, the five functions require four strokes of the piston (or two revolutions of the crankshaft).

Which position are the engine valves in during compression stroke?

Compression stroke: at the end of the intake stroke, both inlet and exhaust valves are closed. The inertial action of the crankshaft in turn lifts the piston which compresses the mixture. The ratio of the combustion chamber volume before and after compression is called the compression ratio.

Which stroke is next after exhaust stroke?

At the end of the exhaust stroke, Stage 1, the piston is located at the far right and is ready to begin another intake stroke after the exhaust valve is closed and the intake valve is opened.

How do I know if my cylinder 1 is TDC?

Once the top dead center timing mark is lined up with the marker on the engine, the motor should now be at top dead center. To verify, shine the flashlight down into the spark plug hole. You should be able to see the top of the piston clearly near the top of the cylinder.
