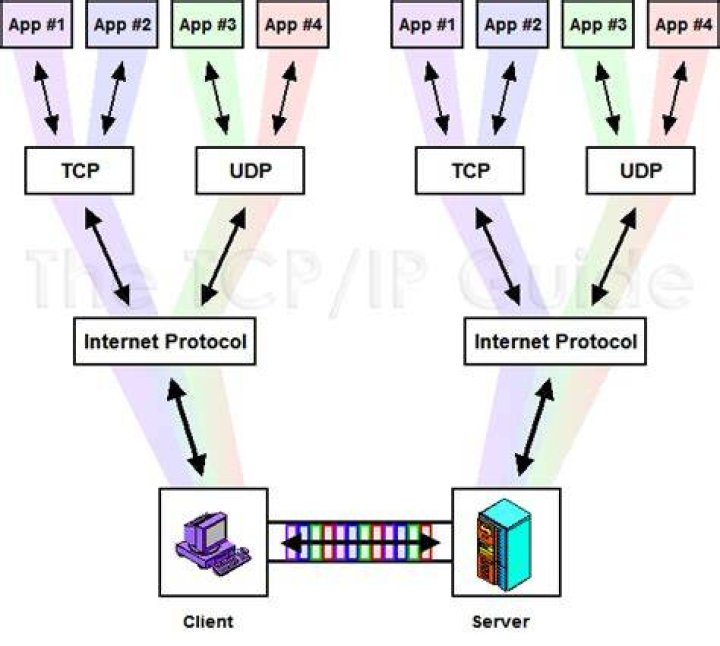

Key Concept: TCP/IP is designed to allow many different applications to send and receive data simultaneously using the same Internet Protocol software on a given device. To accomplish this it is necessary to multiplex transmitted data from many sources as it is passed down to the IP layer.

What is multiplexing and de multiplexing in TCP IP?

Multiplexing and demultiplexing extend host-to-host delivery services available on the network layer to process-to-process services at the application layer [1]. Multiplexing packages data segments on the sender-side, and demultiplexing unpackages those segments at the receiving-side.

Does TCP have multiplexing and demultiplexing?

Multiplexing and Demultiplexing services are provided in almost every protocol architecture ever designed. UDP and TCP perform the demultiplexing and multiplexing jobs by including two special fields in the segment headers: the source port number field and the destination port number field.

Does TCP use multiplexing?

TCP doesn't do multiplexing. The TCP segments just means that the (single) stream data is chopped up into pieces that can be sent in IP packets. Each TCP segment is only identified with a stream offset (sequence number), not with any useful way to identify separate streams.

What is TCP connection multiplexing?

A TCP multiplexing system improves the efficiency of the Web server farm or Internet service by acting as a thin connection (or channel) proxy to servers, caches and content delivery networks. The system receives TCP/IP requests, consolidates them and applies logic to the opening and closing of server connections.

3.2 - Multiplexing and Demultiplexing | FHU - Computer Networks

What is multiplexing in TCP and UDP?

Multiplexing by TCP and UDP involves the process of how a computer thinks when receiving data. The computer might be running many applications, such as a web browser, an e-mail package, or an FTP client. TCP and UDP multiplexing enables the receiving computer to know which application to give the data to.

What is a multiplex connection?

A multiplex connection is an interface in a digital communication network, such as the ISDN network, which makes it possible to use a large number of connections over a single line. Such multiplex connections are often used by companies for the connection of large internal phone systems to the public telephone network.

How multiplexing and demultiplexing works in context of TCP?

Transport layer gathers chunks of data it receives from different sockets and encapsulate them with transport headers. Passing these resulting segments to the network layer is called multiplexing. The reverse process which is delivering data to the correct socket by the transport layer is called demultiplexing.

How do I get a multiplexing socket?

Multiplexing is running multiple connections over one socket, all messages for those connections will be received on that socket (or send). So it's not two-way communication, but multiple different communication channels that are handled by one socket.

How UDP is different from TCP?

TCP is a connection-oriented protocol, whereas UDP is a connectionless protocol. A key difference between TCP and UDP is speed, as TCP is comparatively slower than UDP. Overall, UDP is a much faster, simpler, and efficient protocol, however, retransmission of lost data packets is only possible with TCP.

What device handles multiplexing and demultiplexing?

Answer: The transport layer handle multiplexing by using a device called MULTIPLEXER ( MUX) and the device that handle demultiplexing is called DEMULTIPLEXER (DMUX).

Which layer is responsible for multiplexing?

The data link layer is also responsible for the multiplexing of data streams and data frame detection.

Why is demultiplexing done?

Prioritizing Packets: Early demultiplexing allows important packets to be prioritized and unnecessary ones to be discarded quickly. ... For example, rather than have each layer protocol check for packet lengths, this can be done just once in the spirit of P1, avoiding obvious waste.

What is multiplex and demultiplex?

Multiplexing is method or technique in which more than one signals are combined into one signal that travels on a medium. demultiplexing is the reverse of multiplexing, in which a multiplexed signal is decomposed in individual signals.

What are different states of TCP?

The states are: LISTEN, SYN-SENT, SYN- RECEIVED, ESTABLISHED, FIN-WAIT-1, FIN-WAIT-2, CLOSE-WAIT, CLOSING, LAST-ACK, TIME-WAIT, and the fictional state CLOSED.

Is UDP an IP?

User Datagram Protocol (UDP) – a communications protocol that facilitates the exchange of messages between computing devices in a network. It's an alternative to the transmission control protocol (TCP). In a network that uses the Internet Protocol (IP), it is sometimes referred to as UDP/IP.

How does TCP multiplexing work?

TCP provides multiplexing facilities by using source and destination port numbers. ... These port numbers allow TCP to set up a number of virtual connections over a physical connnection and multiplex the data stream through that connection.

Does UDP use multiplexing?

Both transport layer protocol TCP and UDP use socket based multiplexing to deliver the data to the correct application at the source and destination hosts.

What is multiplexing in socket IO?

io's multiplexing of the connections from multiple clients (enabled by default) as a performance boost to allow multiple clients or connections to share the same underlying socket.

What is TCP protocol?

TCP stands for Transmission Control Protocol a communications standard that enables application programs and computing devices to exchange messages over a network. It is designed to send packets across the internet and ensure the successful delivery of data and messages over networks.

What are the five layers in the TCP IP network model?

The TCP/IP model is based on a five-layer model for networking. From bottom (the link) to top (the user application), these are the physical, data link, net- work, transport, and application layers. Not all layers are completely defined by the model, so these layers are “filled in” by external standards and protocols.

How is multiplexing done?

Multiplexing basically involves taking multiple signals and combining them into one signal for transmission over a single medium, such as a telephone line. The input signals can be either analog or digital. ... A device called a multiplexer (often shortened to "mux") combines the input signals into one signal.

What is multiplexing name the types of multiplexing?

• Frequency-division multiplexing (FDM). ...
• Wavelength-division multiplexing (WDM). ...
• Time-division multiplexing (TDM). ...
• Code-division multiplexing (CDM). ...
• Space-division multiplexing (SDM). ...
• Polarization-division multiplexing (PDM).

What are the three major multiplexing techniques?

• Frequency Division Multiplexing (FDM)
• Wavelength Division Multiplexing (WDM)
• Time Division Multiplexing (TDM)

What is switching multiplexing used for?

Circuit switching is used with static multiplexing techniques; this is the approach used in the public telephone network. Packet switching is used primarily with statistical multiplexing, this is the approach used in most data networks, such as the Internet.
