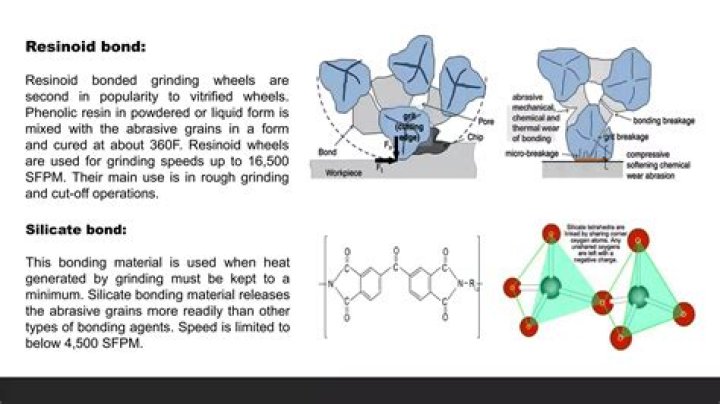

Resinoid Bonds Resinoid, or organic compound, bonds are more shock resistant than vitrified bonds and are generally operated at higher peripheral speeds. Most resinoid bond wheels are used for fast stock removal in the metal fabrication and foundry markets.

What is resinoid bond?

The resinoid bond is a bond type well tailored to the grinding task. In resinoid bonds, resins are used as binders, into which fillers are mixed in addition to the abrasive grains. ... Compared with vitrified bonds, resinoid bonds are known as soft, fast and cool grinding bonds. They have a very wide range of applications.

Is vitrified a bonding agent?

Vitrified bonds are specifically designed to provide extremely strong adhesion to cBN grain through chemical bonding, enabling G-ratio (volume ratio of stock removed to wheel wear) values of 10,000 or more. Metal bonds offer excellent wear resistance and form-holding ability.

What is a bonded abrasive?

Bonded Abrasives are a mixture of abrasive grains, fillers, and bonding materials. The bonding agents can be resin, rubber, glass, or other materials. As the wheel spins against the surface of a work piece, the grains fracture and wear away. ... Harder bonds are called long life, making the wheels more durable.

What is shellac bond?

Shellac Bond: Shellac bond wheels are made by mixing the abrasive grains with shellac in mixer. After the mixture has been rolled or pressed into desired wheel shapes they are then hardened by baking for several hours at about 160 deg. Thin wheels that are strong but posses some elasticity have shellac bond.

Bonding Agent and Mortar Admixture : SikaLatex

Whats the difference between shellac and polyurethane?

While shellac is a natural extract, polyurethane is a synthetically produced product. Shellac comes from the female lac bug (Laccifer lacca), and it is a natural resin. ... We get two types of polyurethane varnish, water-based and oil-based. It comes in two different types of finish, satin, and gloss.

Is lacquer and shellac the same?

One of the major differences between shellac and lacquer is shellac's ability to shine and hold color. In fact, shellac is still used as a glaze for candies such as Skittles because of this ability. Lacquer generally holds the color of the wood it is placed on, while shellac comes in a variety of different colors.

What is the difference between bonded and coated abrasives?

A coated abrasive comprises an abrasive fixed to a backing material such as paper, cloth, rubber, resin, polyester or even metal, many of which are flexible. ... A bonding agent (often some sort of adhesive or resin) is applied to the backing to provide a flat surface to which the grit is then subsequently adhered.

What are different types of abrasive bonds?

Standard grinding wheel bonds are vitrified, resinoid, silicate, shellac, rubber and metal. Vitrified bond. Vitrified bonds are used on more than 75 percent of all grinding wheels. Vitrified bond material is comprised of finely ground clay and fluxes with which the abrasive is thoroughly mixed.

What are the types of abrasives?

• Natural Abrasives - Calcite, Diamond, Iron oxide, Sand, Sandstone, and powdered feldspar.
• Synthetic Abrasives - Borazon, ceramic, aluminum oxide, dry ice, glass powder, steel abrasive, silicon carbide, and slags.

Is ceramic a bonding agent?

Permabond offers several toughened grades of ceramic bonding adhesives. Ceramic materials are inorganic compounds that are typically rigid and very brittle. They are generally electrically non-conductive and have good heat resistance and resistance to harsh chemicals.

What is vitrified bond?

Vitrified bonds are specifically designed to provide extremely strong adhesion to cBN grain through chemical bonding, enabling G-ratio (volume ratio of stock removed to wheel wear) values of 10,000 or more. Metal bonds offer excellent wear resistance and form-holding ability.

What are grinding wheels bonded with?

Metal bond grinding wheels are produced when powdered metals or compounds containing cubic boron nitride or diamond are sintered on the wheel, resulting in exceptionally strong tools that maintain shape during rigorous use.

What is resinoid grinding wheel?

The resinoid bonded grinding wheels are more flexible than the vitrified bonded wheels due to the characteristics of the bond. They are more resistant to dynamic stress. ... Having a lot of experience in manufacturing custom made products we provide a broad range of resinoid bonded wheels to provide the optimized solution.

What is a vitrified grinding wheel?

Grinding wheels made with vitrified bonds are very rigid, strong and porous. They remove stock material at high rates and grind to precise requirements. They are not affected by water, acid, oils or variations in temperature. Vitrified bonds are very hard, but at the same time they are brittle like glass.

What is a vitrified abrasive wheel?

Vitrified wheel: A subset of inorganic wheels. Bonded with clay, glass, porcelain, or related ceramic materials. Wire brush and buffing wheels: Other types of grinding wheel attachments include wire brush and buffing wheels that are usually used for cleaning.

What are natural abrasives?

Natural abrasives include diamond, corundum, and emery; they occur in natural deposits and can be mined and processed for use with little alteration. Synthetic abrasives, on the other hand, are the product of considerable processing of raw materials or chemical precursors; they include silicon carbide,…

What are abrasive grains?

The abrasive grain is a mineral particle, previously ground, sieved, heat treated and subsequently anchored and fixed to a support. The abrasive grain performs the function of starting, cutting or scratching the surface by mechanical or manual action. ... It is considered, therefore, a cutting tool with millions of edges.

What is abrasive wheel?

What are Abrasive Wheels? Starting with the basics; abrasive wheels are revolving wheels designed for cutting and grinding materials such as metal and concrete. The term 'abrasive wheels' relates to the abrasive particles which have been bonded together to make the compound which the wheels are made of.

What is coated abrasives used for?

Coated abrasives are available in sheets, rolls, discs and belts and are used primarily for finishing and light-to-medium grinding. Most of the hazards associated with the use of coated abrasives can be traced to improper mounting procedures, back-up pad limitations or excessive speeds.

Where are coated abrasives used?

• Buffing.
• Honing.
• Drilling.
• Grinding.
• Sanding.
• Polishing.
• Cutting.
• Sharpening.

What are the two types of abrasives?

The material and needed finish will guide your choice of abrasive, but there are two basic types of abrasives used in grinding wheels: bonded and coated. Coated and bonded abrasives differ in the way they are attached to a product.

Should I use lacquer or shellac?

Lacquer is much more user friendly than shellac because of the difference between thinners. ... With the right lacquer thinner, lacquer can even be applied successfully in cold temperatures. We have almost no control of the drying rate of shellac with just alcohol as the solvent.

What is better polyurethane or lacquer?

Despite being available in variances, polyurethane is more durable. It is thick and leaves a strong coating. Lacquer is thin and penetrates the wood surface. It is also durable but susceptible to scratches and discoloration after some time.

What is better varnish or lacquer?

As already mentioned, lacquer is the toughest of the two, though both leave hard, durable surfaces. Generally, the most common reason for favouring lacquer is simply that it wears better. Varnish can look very beautiful when applied correctly, but it doesn't have the same longevity.
