Measuring principle Polarimetry is the measurement of optical rotation of substances by using a polarimeter. A polarimeter is an instrument which measures the angle of rotation by passing polarized light through an optically active (chiral) substance.

How does polarimeter measure optical rotation?

To measure optical rotation, a Light Emitting Diode (LED) produces a beam of ordinary light. This light first passes through a polarizer (polarization filter) in order to obtain a defined orientation of the plane of polarization. The polarized light then passes through the sample cell.

What is optical rotation method?

Optical rotation, also known as polarization rotation or circular birefringence, is the rotation of the orientation of the plane of polarization about the optical axis of linearly polarized light as it travels through certain materials. ... Optical activity is measured using a polarized source and polarimeter.

Is optical rotation and specific rotation the same?

Optical rotation is the rotation of plane-polarized light when a light beam is directed through certain materials. Specific rotation gives the angle of rotation of plane-polarized light by a certain compound at a certain temperature. This is the key difference between optical rotation and specific rotation.

What is optical rotation with example?

The ability to rotate the plane of polarization of plane-polarized light by a certain substance is called optical activity. ... Quartz and cinnabar are examples of optically active crystals while aqueous solutions of sugar, tartaric acid are optically active solutions.

Polarimetry - Intro to Optical Activity in Stereochemistry

What is specific rotation in polarimeter?

: the angle of rotation in degrees of the plane of polarization of a ray of monochromatic light that passes through a tube 1 decimeter long containing the substance in solution at a concentration of 1 gram per millimeter in a polarimeter.

What does a polarimeter measure?

A polarimeter is an optical instrument with which one can accurately measure the angle by which the polarization of light is rotated e.g. when it passes through an optically active medium (containing chiral molecules).

What is angle of rotation in polarimeter?

The point at which it tilts is called the "angle of rotation." It is the basic value measured with a polarimeter. The angle of rotation changes depending on the concentration of the liquid sample, the length of the observation tube, the temperature, and the measurement wavelength. The unit is expressed as, " °."

Which light is used in polarimeter?

In a typical polarimetry experiment, monochromatic light is passed through the sample. A sodium lamp is usually used as the light source and the wavelength of its D line is 589.3 nm.

What is optical rotation in optics and how it is measured through polarimeter?

Polarimetry measures the rotation of polarized light as it passes through an optically active fluid. ... Using optics, visual fields are manually adjusted by the user to measure the optical rotation angle. Polarimeters offer high accuracies where precision is critical in determining the concentration of samples.

How specific rotation of a compound can be determined by using polarimeter?

Measurement. Optical rotation is measured with an instrument called a polarimeter. There is a linear relationship between the observed rotation and the concentration of optically active compound in the sample. There is a nonlinear relationship between the observed rotation and the wavelength of light used.

How is polarimeter calibrated?

5.2. 20 Rinse the tube with 10% solution and fill the solution in Polarimeter tube.
...
5.2 Calibration

1. Switch 'On' the mains. ...
2. Wait till sodium lamp glows with the full intensity of yellow light. ...
3. Rinse the Polarimeter tube with distilled water. ...
4. Adjust the vernier scale and main dial scale to zero.

Why do chiral molecules rotate light?

When a plane-polarized light is passed through one of the 2 enantiomers of a chiral molecule that molecule rotates light in a certain direction. ... Because chiral molecules are able to rotate the plane of polarization differently by interacting with the electric field differently, they are said to be optically active.

What is the unit of specific rotation?

Specific rotation of a compound is a characteristic property of the compound as long as the temperature, the wave length of the light, and, if a solution is used for the experiment, the solvent are specified. The units of specific rotation are degreesmLg^-1dm^-1.

Why is polarimeter used?

Polarimetry is used in pharmaceutical industries for purity control and determination of concentration of substances according to the requirements of the European and American Pharmacopeia by measurement of both specific and optical rotation.

What is the length of polarimeter tube?

In a polarimeter (figure 2), plane-polarized light is introduced to a tube (typically 10 cm in length, figure 3) containing a solution with the substance to be measured.

How does polarimeter work?

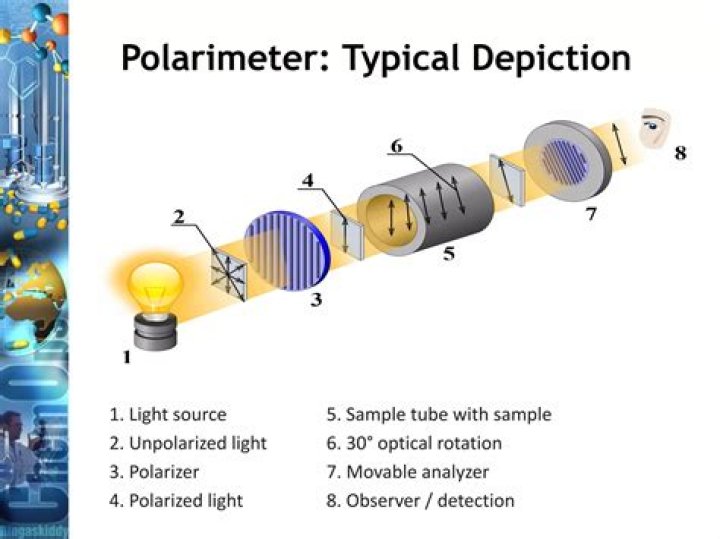

A polarimeter detects whether one or both enantiomers are present in a sample. It consists of a light source, a polarizer, a sample cell, a detector, and an analyzer. ... The light waves then encounter the polarizer, which transmits only those oscillating in one specific plane, yielding a plane-polarized beam.

What does a polarimeter measure polarity of the substance angle of rotation of an optical active compound concentration of the substance PH of the substance?

Explanation: A polarimeter is a scientific instrument used to measure the angle of rotation caused by passing polarized light through an optically active substance. 2. A solution of 0.1 g/mL of a pure R enantiomer in a 1.0 dm (i.e., 10 cm) polarimeter rotates plane polarized light by +4.8°.

What is Analyzer in polarimeter?

Polarimeters have two Nicol prisms, a type of polarizer. This polarizer, a fixed prism, is used to produce a polarized beam of light. The analyzer is used to observe the polarized light that is produced, and can be rotated. The polarimeter uses a light source, usually a mercury or sodium discharge tube.

What is specific rotation describe polarimeter to determine specific rotation?

A polarimeter is a scientific instrument used to measure the angle of rotation caused by passing polarized light through an optically active substance. ... The amount by which the light is rotated is known as the angle of rotation.

What is optical rotation in organic chemistry?

Optical activity describes the phenomenon by which chiral molecules are observed to rotate polarized light in either a clockwise or counterclockwise direction. This rotation is a result of the properties inherent in the interaction between light and the individual molecules through which it passes.
