We know that a concave lens diverges the rays incident on it. That's why it is also known as a diverging lens. Hence, its power is negative.

Is concave lens negative?

question_answer Answers(3)

According to Cartesian sign convention, object distances (u) are always negative as the object is placed to the left of the mirror/lens. Focal length (f) is positive for a convex lens and convex mirror. Focal length is negative for concave lens and concave mirror.

Is the power of concave lens is positive?

The power of a lens is defined as the reciprocal of the focal length. ... Converging (convex ) lenses have positive focal lengths, so they also have positive power values. Diverging (concave ) lenses have negative focal lengths, so they also have negative power values.

How do you know if a lens is concave or convex?

A convex lens is thicker at the centre and thinner at the edges. A concave lens is thicker at the edges and thinner at the centre. Due to the converging rays, it is called a converging lens.

Why concave lens has negative focal length?

The power of the lens is the reciprocal of the focal length. A concave lens is a diverging lens, so it will always have a negative focal length. Therefore, the power of a concave lens is also negative.

WHY FOCAL LENGTH IS POSITIVE FOR CONVEX AND NEGATIVE FOR CONCAVE LENS | STD X |

Does a concave lens have a negative focal length?

For a diverging lens (for example a concave lens), the focal length is negative and is the distance to the point from which a collimated beam appears to be diverging after passing through the lens.

Is convex mirror negative?

Since as object is always placed to the left side of a mirror, therefore, the object distance (u) is always negative. ... In a convex mirror, the image is always formed on the right-hand side (behind the mirror), so the image distance (o) for a convex mirror will be always positive.

What is negative lens?

A negative lens is one that causes incident parallel rays to emerge from the lens as though they emanated from a focal point on the incident side of the lens.

What is concave convex lens?

Lenses may be divided broadly into two main types: convex and concave. Lenses that are thicker at their centers than at their edges are convex, while those that are thicker around their edges are concave. A light beam passing through a convex lens is focused by the lens on a point on the other side of the lens.

What are concave lenses?

A concave lens is thinner in the middle than it is at the edges. This causes parallel rays to diverge . They separate but appear to come from a principle focus on the other side of the lens. In a ray diagram, a concave lens is drawn as a vertical line with inward facing arrows to indicate the shape of the lens.

What is negative in convex lens?

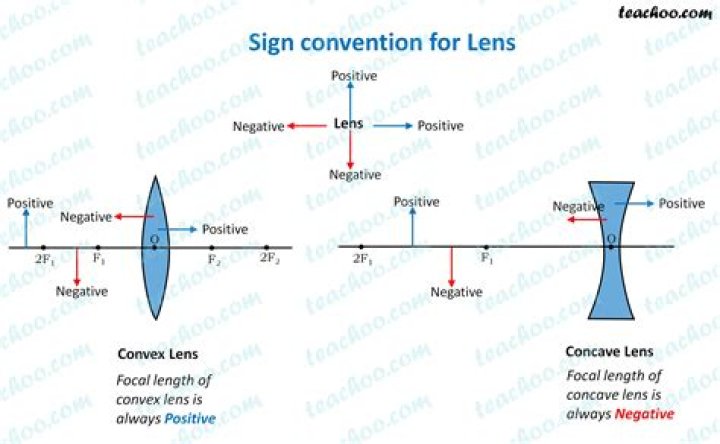

Focal length of Convex Lens is positive. Focal length of Concave Lens is negative. Since object is always in front of the lens, object distance is always negative. If a real image is formed, image is formed on right side, so image distance is positive.

How do you know if an object is positive or negative?

When the image distance is positive, the image is on the same side of the mirror as the object, and it is real and inverted. When the image distance is negative, the image is behind the mirror, so the image is virtual and upright. A negative m means that the image is inverted. Positive means an upright image.

Which lens has a positive power?

(a) Convex lens has positive power.

Why is a lens negative?

The reason is the sign altering of v. See according to the New Cartesian Sign convention U i.e., the object distance is always in the left hand side of the lens or mirror i.e., to -X side. That is why U is always taken as negative.

Is concave lens converging or diverging?

The concave lens is a diverging lens, because it causes the light rays to bend away (diverge) from its axis.

Which lens has a negative focal length?

A diverging lens is said to have negative focal length. A diverging lens causes exiting rays to be more divergent coming out than thay were enetering the lens. A converging lens can form a real image or a virtual image of a real object.

Which lens has a positive focal length?

Convex lens has positive focal length. This follows the general convention in optics. The focal length is considered positive when the object and image are situated on two different sides of the lens, which is in the case of convex lens.

In which lens magnification is negative?

A convex lens can form virtual as well as real images, so the magnification produced by a convex lens can be either positive or negative. Magnification is positive for virtual image and negative for real image.

Why focus of convex lens is positive?

Convex lens converges incident rays. Hence the rays to converge at a point in front of the lens. So image distance is positive here. We can easily clarify that the focal length is positive direction for a Convex lens while negative with concave lens.

How do you remember concave and convex lenses?

The most important thing to remember is that concave means curving inwards and convex means curving outwards. A good tip is to focus on the 'cave' part of concave. If you remember that the mouth of a cave curves inwards, then you can remember that concave means bent inwards.

What is difference between concave mirror and concave lens?

A concave mirror is opaque whereas a concave lens is transparent. A concave mirror can form both real, inverted images of various sizes and virtual, erect and enlarged images depending on the position of the object whereas a concave lens forms only virtual, diminished and erect images for all positions of the object.

Are Diverging lenses convex?

A double concave lens is a diverging lens. These two types of lenses - a double convex and a double concave lens will be the only types of lenses that will be discussed in this unit of The Physics Classroom Tutorial.
