f sec θ

Which is the form of trapezoidal thread?

An Acme thread is a form of trapezoidal thread. The trapezoidal thread has an included angle of 30°.

How do you measure a trapezoidal thread?

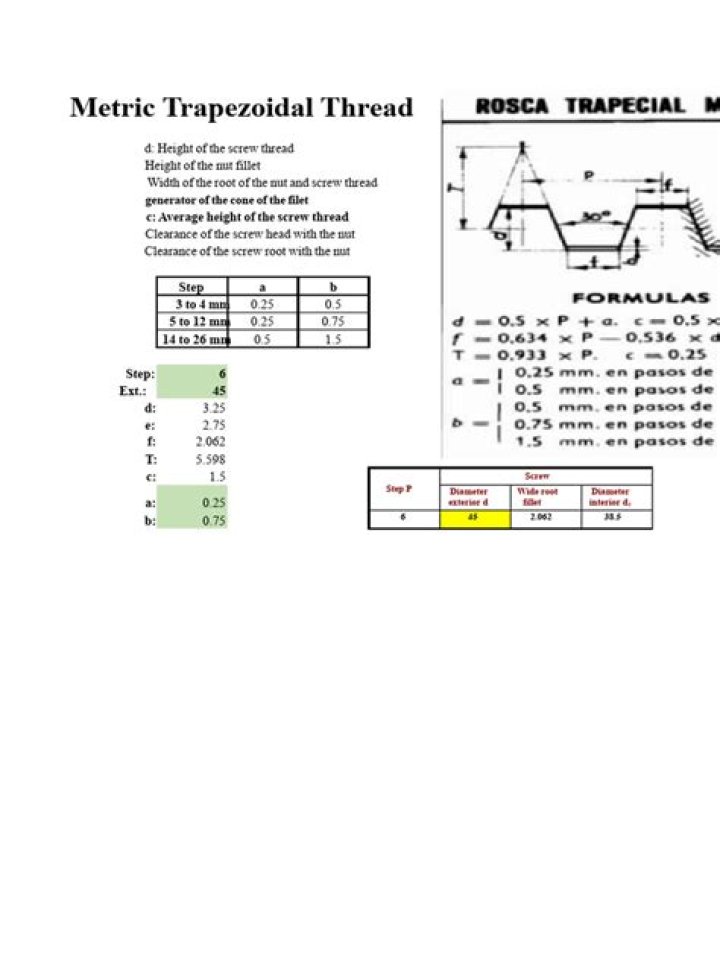

Trapezoidal threads are defined as follows by ISO standards: Tr 60×9. where Tr designates a trapezoidal thread, 60 is the nominal diameter in millimeters, and 9 is the pitch in millimeters. When there is no suffix it is a single start thread.

What is trapezoidal threaded rod?

Trapezoidal Threaded Rod is a metal rod with a continuous trapezoidal shaped thread across the entire length of the rod. Trapezoidal Thread is often used where large screw loads are required. Common uses are as the lead screw of a lathe or in a vise.

What is the maximum efficiency of a screw with a coefficient of friction?

Efficiency of the screw _______ with increase of coefficient of friction. Explanation: Efficiency is inversely proportional to tan of the sum of helix and efficiency angle. Explanation: Efficiency=Sin(2ἀ+Ǿ)-Sin Ǿ/Sin(2 ἀ+Ǿ+Sin Ǿ),For max efficiency, sin(2ἀ+ Ǿ)=1. Explanation: Maximum efficiency=1-sinǾ/1+sinǾ.

Turning trapezoidal thread (ACME) in stainless steel on the Mazak Nexus 350MY

Which thread has highest efficiency?

A Buttress thread form is shown in figure- 6.1.

On the whole the square threads have the highest efficiency as compared to other thread forms but they are less sturdy than the trapezoidal thread forms and the adjustment for wear is difficult for square threads.

What is the maximum efficiency of a square threaded power screw when the friction angle is 30 degrees?

The maximum efficiency of a screw jack having square threads and friction angle of 30° will be: a) 11%

What is ACME thread used for?

ACME threads are commonly used in clamps, vises, and linear actuators. The main advantage to an ACME thread is a low number of threads per inch. This allows ACME threads to allow for increased linear actuation per turn of screw which is similar to a square thread.

What is Acme lead screw?

ACME screws are one type of lead screw. ACME screws are designed with strong threads that are most commonly used for lifting. These screws are easier to manufacture than some other designs, but still offer considerable strength.

What does Acme stand for threads?

: an American screw thread having a section that is a mean between the V threads and square threads.

What is Acme standard?

The Automatic Certificate Management Environment (ACME) protocol is a communications protocol for automating interactions between certificate authorities and their users' web servers, allowing the automated deployment of public key infrastructure at very low cost.

What is the difference between Acme and trapezoidal thread?

The difference between acme threads and trapezoidal threads comes down to one degree. An acme thread has a 29-degree flank angle adopted in the United States while a trapezoidal thread has a 30-degree flank angle that was adopted in Europe.

How do I identify acme thread?

ACME thread pitches are measured in TPI (Threads per Inch) which is measured by finding the number of thread crests in 1" of threads. Types: General Purpose: The common type with a standard amount of clearance in the thread form. Example: 2G, 3G, 4G.

What is the angle of a trapezoidal thread?

Trapezoidal thread forms have a 30°included thread angle. When compared to general-purpose thread forms, centralizing threads are manufactured with tighter tolerances and reduced clearance on the major diameter.

What type of thread is used in the lead screw of a lathe?

Explanation: Acme threads are used in lathe lead screws. This form of thread enables the easy engagement of the half nut. The metric acme thread has an included angle of 30°.

What thread is a lathe lead screw?

Acme thread / Trapezoidal thread

Acme threads have a 29° thread angle, which is easier to machine than square threads.

Are trapezoidal screws self locking?

Single-start trapezoidal lead screw drives are self-locking. This means that the flank angle and the sliding friction prevent the nut or lead screw from moving without outside forces being applied.

How does an acme screw work?

ACME screws use a trapezoidal shape thread to roll on to the lead screw. As the shaft rotates as the rotatory motor turns, the threads push the shaft nut forward or backward depending on the direction of the rotating motion. This transfers the circular motion of the motor into linear motion on the shaft.

What threads are used for?

Screw threads have several applications: Fastening: Fasteners such as wood screws, plastic screws, machine screws, nuts, and bolts. Connecting threaded pipes and hoses to each other and to caps and fixtures.

What are the advantages of square threads over trapezoidal thread?

The greatest advantage of square threads is that they have a much higher intrinsic efficiency than trapezoidal threads (Acme or metric trapezoidal). Due to the lack of a thread angle there is no radial pressure, or bursting pressure, on the nut. This also increases the nut life.

Are acme threads better?

Overall acme screws have much better wear properties, load capabilities, and tolerances, than standard threaded rod. Since the threads are thicker and wider, they operate better in environments with dirt and debris as well.

What are the factor on which efficiency of the square threaded power screw depends?

Explanation: The efficiency of a square threaded screw depends upon the helix angle α and the friction angle φ.

What is the maximum efficiency of a lifting machine?

The maximum efficiency of a lifting machine is. 1/m.

What is the efficiency of self locking power screw <UNK> 70% 60% 55 50?

Explanation: Efficiency of self locking screws is less than 1/2 or 50%.
