A thermocouple consists of two wires of dissimilar metals welded together into a junction. At the other end of the signal wires, usually as part of the input instrument, is another junction called the reference junction.

What is a thermocouple junction?

Thermocouple junction is the measuring point of a thermocouple sensor, where the positive and negative legs of the thermocouple wire are welded together. ... It can sometimes be called the Hot end junction, but this is a more general term.

What are the two junctions called on a thermocouple?

In any thermocouple circuit, there are two equivalent junctions formed between dissimilar metals. The junction placed at the site of intended measurement is called the measurement junction, while the other (single or equivalent) junction is called the reference junction.

What are the thermocouple junction types?

There are three different types of junctions for thermocouples: exposed, grounded, and ungrounded. Each of these serves a different purpose and has different characteristics.

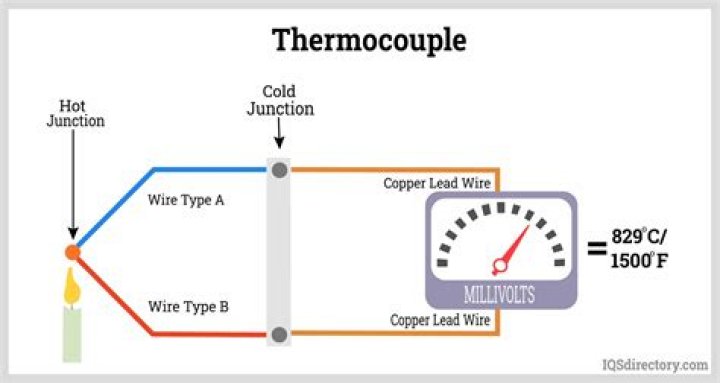

What is hot and cold junction in thermocouple?

In the classical configuration, the dissimilar thermocouple wires are welded together at the measurement end (hot junction), and again at the reference end (cold junction), forming a loop. The hot junction assures that the potential at that point matches in the two metals.

Thermocouple 101: Cold Junction Compensation

What is thermocouple wire?

The thermocouple wire or cable is used to manufacture thermocouple probes in order to sense temperature using the point of cold junction compensation (cjc end). ... Different thermocouple types (e.g. J or K type thermocouple wire) use different mixtures of metals in the cable.

What is a thermos pile?

A thermopile is an electronic device that converts thermal energy into electrical energy. It is composed of several thermocouples connected usually in series or, less commonly, in parallel.

What is measurement junction?

A topic that is rarely addressed in the thermocouple world is the measurement junction type. This is the place where our two dissimilar metals connect to each other. This is also known as the hot junction and is the part of the thermocouple that is placed within the process where you want to measure the temperature.

What is the measurement junction of the thermocouple?

The dissimilar metals are joined at a temperature sensing junction (TTC) to create a thermocouple. The voltage is measured at a reference temperature (TCJ) through the two metals. The leads of the thermocouple are required to be at the same temperature and are often connected to the ADC through an isothermal block.

What are the three circuits involved in the thermocouple system?

• Exposed junction. In an exposed junction, the conductors are outside the thermocouple sheath. ...
• Grounded junction. ...
• Ungrounded junction or insulated.

What is the two metals bonded together in junction by thermocouple process?

A thermocouple consists of two dissimilar metals, joined together at one end. When the junction of the two metals is cooled or heated a voltage is produced that can be correlated back to the temperature. Most thermocouple alloys are commonly available as wire.

What is thermocouple with diagram?

A typical circuit diagram of a thermocouple is shown in Figure. In the Figure, two dissimilar metals 'A' and 'B' are joined at the two junctions 'P' and 'Q'. Here the 'P' junction is measuring junction or hot junction whereas the junction 'Q' is the reference junction or cold junction.

What is called thermocouple?

thermocouple, also called thermal junction, thermoelectric thermometer, or thermel, a temperature-measuring device consisting of two wires of different metals joined at each end. One junction is placed where the temperature is to be measured, and the other is kept at a constant lower temperature.

What is thermocouple in TGA?

The TGA 2950 uses a single thermocouple to both control the furnace and monitor sample temperature. ... Because the thermocouple is located adjacent to the sample pan, highly exothermic or endothermic reactions within the sample cause minor fluctuations in the programmed heating rate.

What is cold junction compensation in thermocouple?

In Summary

Cold junction compensation compensates for the missing thermoelectric voltage due to the fact that the thermocouple cold end at the instrument is not at (0°C /32°F). This then allows electronics to use the established thermoelectric voltage tables (or polynomials) to determine the temperature at the hot end.

What is thermo emf?

Thermo emf is an electromotive force which is generated due to thermal gradient.

What is thermocouple PPT?

A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit.

What is a Type K thermocouple?

A Type K thermocouple refers to any temperature sensor containing Chromel and Alumel conductors, that meets the output requirements as stated in ANSI/ASTM E230 or IEC 60584 for Type K thermocouples. This may be an immersion sensor, a surface sensor, wire or another style of sensor or cable.

What is the output of thermocouple?

The output from a thermocouple is small, of the order of millivolts for a 10°C temperature difference, and Fig. 1.3 shows typical sensitivity and useful range for a variety of the common types. Of these, the copper/constantan type is used mainly for the lower range of temperatures and the platinum!

What is thermopile Mcq?

This set of Electrical Measurements & Measuring Instruments Multiple Choice Questions & Answers (MCQs) focuses on “Thermoelectric Transducer”. ... Explanation: The most commonly used thermoelectric transducer is a thermocouple. It measures the change in temperature and converts it into an electrical signal.

What is Thermo file?

Description: The Thermo Raw File Reader DLL provides several methods for parsing the information returned by MSFileReader, including: Determining the parent ion m/z and fragmentation mode in a given scan filter. Determining the Ionization mode from a given scan filter. Extracting MRM masses listed in a given scan ...

Is thermopile same as thermocouple?

The main difference between Thermocouple and Thermopile is their method of measurement. The thermocouple is a thermoelectric instrument, while the thermopile is an instrument that modifies thermal energy into electrical output.
