The triangle indicates the flow direction. In general, the symbols for pneumatics and hydraulics are the same.

What do pneumatic symbols mean?

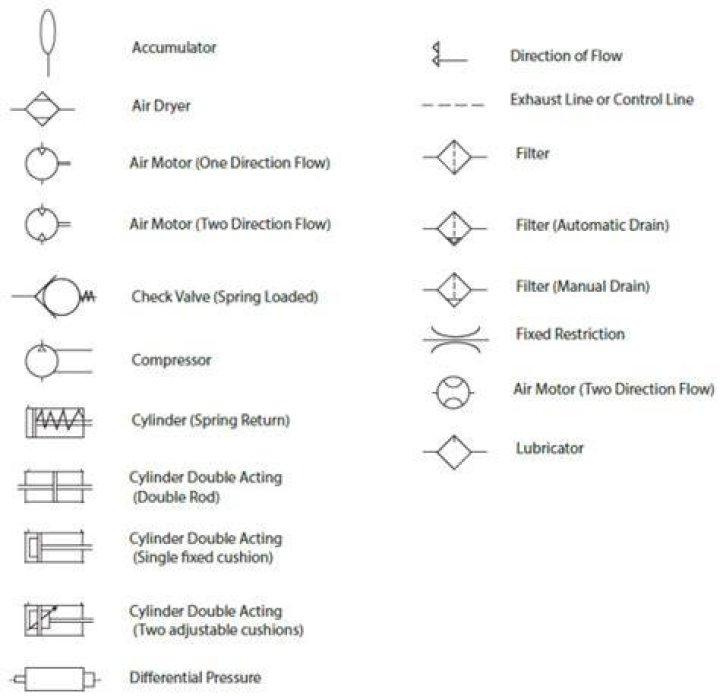

Pneumatic circuit symbols representing these valves provide detailed information about the valve they represent. Symbols show the methods of actuation, the number of positions, the flow paths and the number of ports.

What is the symbol of air compressor?

Compressor. The symbol for a compressor is similar to the air motor symbol. The addition of a diagonal line arrow through the circle indicates variable displacement, as opposed to a fixed displacement compressor which would have no diagonal line arrow.

What is pneumatic circuit diagram?

In pneumatic circuit diagrams, the components are arranged the way that the flow of energy always flows from the bottom up (as opposed to electrical schematics). Thus the pressure source represents the first element, the actuator, the last element.

What are pneumatic valves?

Pneumatic valves are one of an array of components responsible for controlling the pressure, rate, and amount of air as it moves through a pneumatic system. ... For an understanding of pneumatic actuators, see our guide all about pneumatic actuators.

Symbols and Standards in Pneumatics

What is a motor spool valve?

MOTOR SPOOL (Also referred to as free-flow).

A spool designed to provide flow from “work” ports to “tank” when spool is in neutral position. This allows a motor to coast to a stop after the spool is placed in neutral position.

What is a pilot line in hydraulics?

The pilot line is used to open the check valve and let the flow back through the valve. The bottom symbol in the image above is a common format for a double pilot operated check sandwich plate valve. They are often used under CETOP directional valves.

What is the spool valve?

A spool is a cylindrical valve element that opens and closes ports when moved axially within the valve bore. Most spool valves use elastomers to seal between flow paths.

What is pneumatic regulator?

Pneumatic regulators, also known as pressure-reducing valves, are used in pneumatic systems to maintain the output air pressure. They are commonly used in pneumatic air compressors. ... They make sure that compressed air in a pneumatic system is not wasted.

What does the numbers in 4 2 valve mean?

The 4/2-way pneumatic valve has four connection ports and two states. The difference between the two valve types is the number of exhaust ports: ... A 4/2-way valve has only one common exhaust port.

What is an example of a pneumatic system?

pneumatic device, any of various tools and instruments that generate and utilize compressed air. Examples include rock drills, pavement breakers, riveters, forging presses, paint sprayers, blast cleaners, and atomizers. Compressed-air power is flexible, economic, and safe.

How does a 3 way pneumatic valve work?

Three-way valves direct pressurized air to the cap-end side of the cylinder. Shifting the spool to the other extreme position blocks flow and pressure to the actuator. The actuator is connected to the exhaust passage, therefore spring force or gravity must return the rod to its original position.

What are components of pneumatic system?

• All pneumatic systems use compressed air to operate and move parts or actuators. ...
• Here are the common parts of a pneumatic system:
• Check Valves. ...
• Compressor. ...
• Regulators and gauges. ...
• Accumulator or buffer tank. ...
• Feed lines. ...
• Actuators.

What are hydraulic symbols?

Hydraulic Circuits Design Symbols

Hydraulic symbols provide a clear representation of the function of each hydraulic component. Laying each symbol out on the page in the same sequence the components are used in the circuit allows people to understand the complete function of the hydraulic equipment.

What is the symbol for a hydraulic pump?

The base symbol for the hydraulic pump (Figure 1) is actually quite simple. It starts with the standard circle and a directional arrow pointing out one end from within that circle. The solid-filled triangle makes this a hydraulic pump while pneumatic pumps (and most pneumatic symbols) are outlines only.

What is T and P in hydraulics?

On hydraulic valves, the P stands for pump (high-pressure input) and the T stands for tank (low-pressure return to reservoir).

What is a pneumatic shuttle valve?

A shuttle valve is a type of valve which allows fluid to flow through it from one of two sources. Generally a shuttle valve is used in pneumatic systems, although sometimes it will be found in hydraulic systems.

What is pneumatic spool valve?

Pneumatic spool valves are used as directional controls within pneumatic circuits controlling single and double acting actuators or as part of a pneumatic logic sequence.

What is a pneumatic pump?

Pneumatic pumps are often positive displacement pumps that are double-acting with no return spring and can utilize many pressurized gases or fluids as drivers. ... This mechanism is powered by a pneumatic, electric, hydraulic, or steam drive. Pneumatic Liquid Pumps – Used to move liquid.

What is pneumatic valve and its types?

Pneumatic systems use a wide variety of components to control the amount of air, the rates, and the pressure with which it moves through the systems. ... Directional control valves, which either inhibit air flow or control the direction of it, are a major classification of pneumatic valves.

How do pneumatic valves operate?

Although pneumatic machines come in various forms, most valves work the same way. Pressurized air is held in a reservoir or diaphragm. As air is fed into the reservoir through a compressor, it pushes against the walls of the area. ... This, in turn, causes the valve stem to press downwards and close the valve.
