In other words, the generator which has both shunt and series fields is called the compound wound generators. If the magnetic flux produced by the series winding assists the flux produced by the shunt winding, then the machine is said to be cumulative compounded.

What are cumulative and differential compound generator?

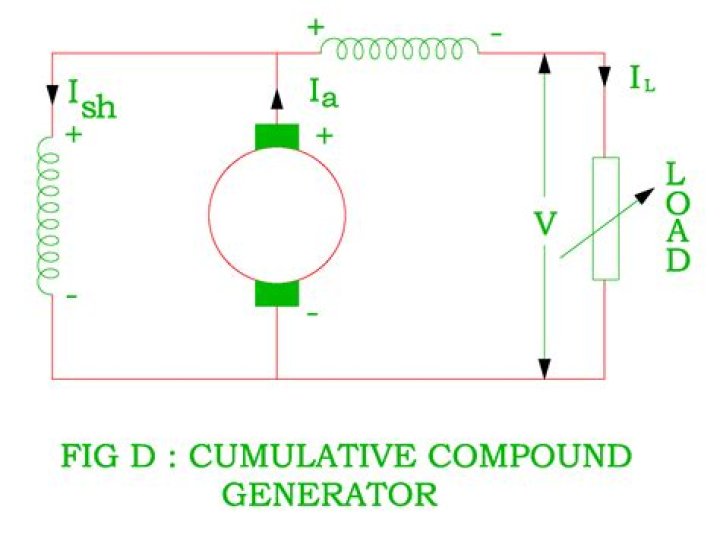

When the series winding is connected to aid the shunt winding, the generator is called a cumulative compound-wound generator; if the series winding is connected to oppose the magnetic field, it's called a differential compound-wound generator.

What is compounded generator?

[′käm‚pau̇nd ′jen·ə′rād·ər] (electricity) A direct-current generator which has both a series field winding and a shunt field winding, both on the main poles with the shunt field winding on the outside.

What is meant by cumulative compound?

[′kyü·myə·ləd·iv ‚käm‚pau̇nd ′mōd·ər] (mechanical engineering) A motor with operating characteristics between those of the constant-speed (shunt-wound) and the variable-speed (series-wound) types.

What are the different types in cumulative compound generator?

Compound wound generators have both series field winding and shunt field winding. One winding is placed in series with the armature, and the other is placed in parallel with the armature. This type of DC generators may be of two types- short shunt compound-wound generator and long shunt compound-wound generator.

#24 DC Generator - Cumulative compound Generator #1 - Introduction

What are the types of compound generator?

There are two types of compound wound generators, the series field winding and the shunt field winding. There are two windings, one in series with the armature and the other in parallel with it. There are two types of DC generators- short and long compound-wound.

What is a long shunt?

One is a long shunt compound generator, and another is a short shunt compound generator. If the shunt field is connected in parallel with the armature alone then the machine is called the short compound generator. In long shunt compound generator, the shunt field is connected in series with the armature.

What is the EMF equation of DC generator?

As the armature rotates, a voltage is generated in its coils. In the case of a generator, the emf of rotation is called the Generated emf or Armature emf and is denoted as Er = Eg. In the case of a motor, the emf of rotation is known as Back emf or Counter emf and represented as Er = Eb.

Is cumulative the same as compounded?

Thus, the term “cumulative” refers to the fact that dividends accrue over the years and will be paid upon a liquidity event. ... “Compounding” means the dividend is based on the original per share price plus the dividends that accrue over time.

What causes a generator to become over compounded?

As the load current increases, the current through the series field winding increases, increasing the overall magnetic field strength and causing an increase in the output voltage of the generator. ... This type of generator is called an over-compounded generator.

What is compound generator compound motor?

A compound wound DC motor (also known as a DC compound motor) is a type of self-excited motor, and is made up of both series the field coils S₁ S₂ and shunt field coils F₁ F₂ connected to the armature winding as shown in the figure below.

What is exciter in generator?

A Exciter. The exciter supplies direct current to the field winding of the generator, at whatever voltage is required to overcome the resistance of the winding. ... The voltage response ratio is a measure of the change of exciter voltage in 0.5 sec when a change in this voltage is suddenly demanded.

What is the function of commutator in DC generator?

The commutator on the DC generator converts the AC into pulsating DC. The commutator assures that the current from the generator always flows in one direction. The brushes ride on the commutator and make good electrical connections between the generator and the load.

What is over compounded?

: to add series coils to (a compounded dynamo) beyond those required to maintain a constant terminal voltage with the result that the voltage increases with the current load.

What is the difference between cumulative and differential compound motor?

In the cumulative compound motor, the field produced by the series winding aids the field produced by the shunt winding. ... In the differential compound motor, the flux from the series winding opposes the flux from the shunt winding. The field flux, therefore, decreases with increasing load current.

What is under compounding?

: having the shunt and series field coils so related that voltage decreases with increasing load.

What is the example of cumulative?

The definition of cumulative is something that is increasing or getting bigger with more additions. An example of cumulative is the increasing amount of water in a pool that is being filled. Of or relating to interest or a dividend that is added to the next payment if not paid when due.

What is cumulative formula?

A running total, or cumulative sum, is a sequence of partial sums of a given data set. It is used to show the summation of data as it grows with time (updated every time a new number is added to the sequence). ... The following examples show the fastest way to calculate running total in Excel and plot a cumulative graph.

Is compound interest cumulative?

Cumulative Interest vs.

(Where P = Principal, i = nominal annual interest rate in percentage terms, and n = number of compounding periods.) ... This happens because, when interest is compounded, the money earned through interest is added to the principal periodically, so that more interest is earned in the next period.

What is back emf in generator?

Back emf is the generator output of a motor, and so it is proportional to the motor's angular velocity ω. It is zero when the motor is first turned on, meaning that the coil receives the full driving voltage and the motor draws maximum current when it is on but not turning.

What is back emf formula?

The back emf is calculated based on the difference between the supplied voltage and the loss from the current through the resistance. The power from each device is calculated from one of the power formulas based on the given information. The back emf is ϵi=ϵS−I(Rf+REa)=120V−(10A)(2.0Ω)=100V.

How do you calculate emf of a generator?

1. An electric generator rotates a coil in a magnetic field, inducing an emf given as a function of time by. emf=2Bℓvsinωt emf = 2 B ℓ v sin ⁡ , where A is the area of an N-turn coil rotated at a constant angular velocity ω in a uniform magnetic field B.
2. The peak emf emf₀ of a generator is. emf₀ = NABω

What is shunt DC generator?

A shunt generator is a type of direct current electric generator in which field winding and armature winding are connected in parallel, and in which the armature supplies both the load current and the field current.

What is a power shunt?

A shunt is an electrical device that generates a low-resistance path for an electrical current. This enables the current to flow to an alternative point in the circuit. Shunts may also be referred to as ammeter shunts or current shunt resistors.

What is a DC shunt motor?

A DC shunt motor is a type of self-excited DC motor, and it is also known as a shunt wound DC motor. The field windings in this motor can be connected in parallel to the armature winding. ... This motor has a low starting torque and also runs at a constant speed.
