The eaves are the edges of the roof which overhang the face of a wall and, normally, project beyond the side of a building. The eaves form an overhang to throw water clear of the walls and may be highly decorated as part of an architectural style, such as the Chinese dougong bracket systems.

What do eves look like?

An eave is the edge of a roof that sticks out or hangs over the building's side. Sometimes they're over exposed rafters. ... The horizontal underside of the eave is sometimes called a soffit. If the eave has a board running vertically along its end that covers the rafters, that board is a fascia.

What is the eaves of a building?

The area where a roof extends a small way past the wall of a building is usually referred to as the eaves. ... Eaves are formed as the rafters of the roof extend past the side of the building to distribute and support the load of the roof more evenly.

What part of the house is the eaves?

Eaves—The lower edge of a roof (often overhanging beyond the edge of the house).

What does eaves mean in a house?

Eaves are the underside of your roof – specifically the part of the roof that attaches to and juts out from the house.

Installing Eave sheets

Does a house need eaves?

Eaves are ubiquitous in most traditional architecture, and in addition to their aesthetic role, they serve several important functions, the primary one being to keep rainwater away from the building's walls and structure. ... However, eaves are not an indispensable component of a building.

What's the difference between eaves and soffits?

In the widest sense of the term, soffits can refer to the underside of almost anything that's constructed, including arches and porches. Another way to explain it is to say soffit is the exposed siding underneath your roof's overhang. ... To summarise, an eave is part of a roof system and a soffit is part of the eave.

Do all houses have eaves?

Eaves are characteristic of classic architecture. Contemporary homes may have narrow roof eaves or no eaves at all for a minimal, streamlined look. Buildings with flat roofs usually do not have eaves, but some can have eaves that stick straight out to protect the exterior walls.

What are eaves good for?

What are eaves? Eaves are an extension of the roof that overhangs the walls of your house. Both functional and decorative, having eaves can optimise sunlight exposure and protect from moisture, while also accentuating the overall feel of your home.

How do eaves on a house work?

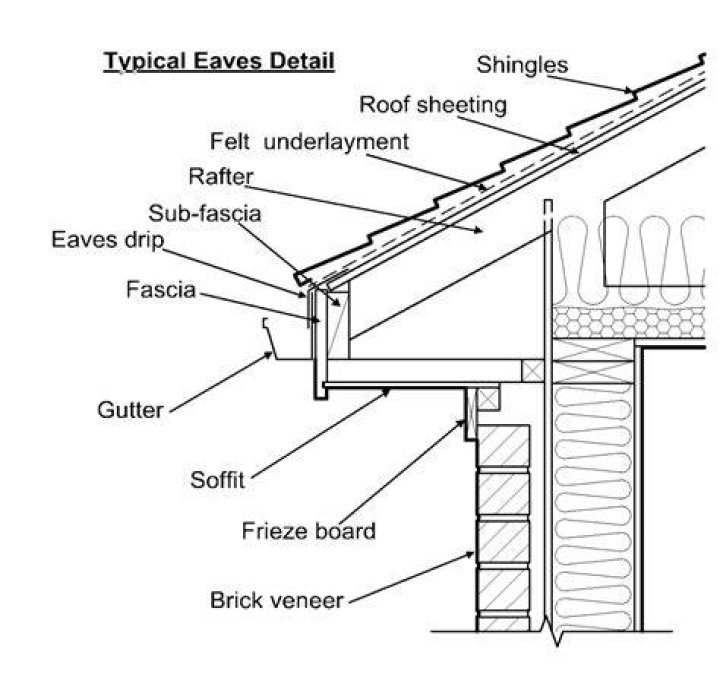

Eaves are the part of the roof that hangs out over the walls to provide shade to the outside of your house. An eave is formed when the ends of the rafters extend past the outside walls and hang over the side of the house. Eaves are made up of two main portions: the fascia and the soffit.

What eave means?

1 : the lower border of a roof that overhangs the wall —usually used in plural. 2 : a projecting edge (as of a hill) —usually used in plural.

What is eave line?

Eave line means the line between the two lowest points of intersection of the top of a wall and the eave, or edge of the roof.

What does an eave on a house look like?

Decorative eaves have an Italian or Spanish influence and are on slightly pitched roofs. They overhang no more than 2 feet to make the look. Often, brackets or corbels are added to the architecture to create this look.

What is the overhang on a roof called?

What Is a Soffit? Your roof by necessity, will often times extend over the walls of your home. This overhang can go by a few names, such as the house eaves or the rafters of your roof. The underside of this overhang, when given a finished appearance, is known as the soffit, which means “something fixed underneath”.

Are eaves structural?

Eaves are often thought of as architectural additions to a roofing structure, rather than an important structural addition. ... They form the overhang of your roof, which keeps rainwater clear of windows and walls.

What is a house fascia?

fascia. Trim is the material used to encase windows and doors, among other features, on a home's exterior. Fascia is a horizontal or angled board that encloses the edge or face of the projecting eaves.

Can you add eaves to an existing roof?

A roof overhang protects the building under it from rain and weather, and if your house doesn't have one, adding an overhang is not an especially difficult construction job. Framing a new overhang is straightforward, but blending the new overhang seamlessly into the existing roof requires some effort and expense.

How wide are house eaves?

Width. As a rule of thumb, your eave width should be 45% of the height from the bottom windowsill to the bottom of the eaves. ... 1200mm when the height from sill to eaves is 2100–2700mm.

What are eaves on a flat roof?

For the purpose of measuring height, the eaves of a house are the point where the lowest point of a roof slope, or a flat roof, meets the outside wall.

Can you build a house without eaves?

Having a house without eaves is a poor compromise if you are looking for extra area – the extra costs of energy to keep the home cooler in summer and warmer in winter will be an extra forever. Eaves protect the home from excessive weather, give protection to paint work, windows and timbers from constant UV rays.

Why are houses built without eaves?

This helps greatly on water problems as in falling on doors and windows (reduces warping and cracking) , and when it hits the ground or a patio deck it splashes less on patio doors, foundation, and side of the house (wood lap siding). Was the no overhang new england thing a style thing or some extended frugality thing?

Why do roofs overhang?

Roof overhangs have several important functions: they can protect exterior doors, windows, and siding from rain; they can shade windows when solar heat gain is undesirable; and they can help keep basements and crawl spaces dry.

Do flat roofs have eaves?

The term “eaves” does not apply to the edge of a flat roof (note: in this particular case, the flat roof would not have an overhang that would project beyond the line of the walls).

What is the difference between eaves and gutters?

is that eave is eaves: the underside of a roof that extends beyond the external walls of a building while gutter is a prepared channel in a surface, especially at the side of a road adjacent to a curb, intended for the drainage of water or gutter can be one who or that which guts.
