A class C amplifier is biased so that it conducts for less than 180° of the input. ... Ordinarily, you would think that this would be a class B amplifier. However, this is not the case. Recall that the emitter-base junction of a bipolar transistor has a forward voltage threshold of approximately 0.7V.

What is a Class C amplifier?

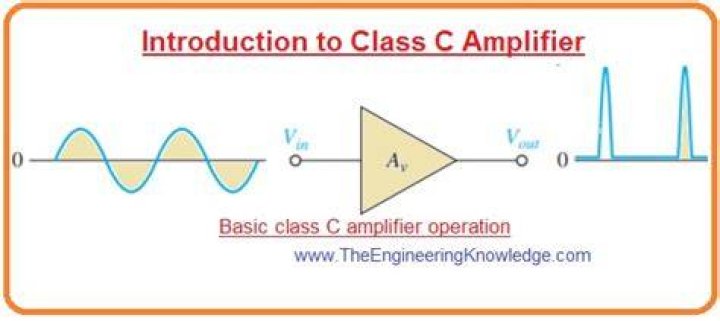

Class C power amplifier is a type of amplifier where the active element (transistor) conduct for less than one half cycle of the input signal. Less than one half cycle means the conduction angle is less than 180° and its typical value is 80° to 120°. ... Theoretical maximum efficiency of a Class C amplifier is around 90%.

What is the output of Class C amplifier?

Class C Power Amplifier

It is generally around 90^o, which means the transistor remains idle for more than half of the input signal. So, the output current will be delivered for less time compared to the application of input signal.

What is resonant frequency in Class C amplifier?

The resonant frequency of resonant circuit can be calculated by the formula fr=1/(2Π√LC). The small-signal pulse of the collector current on every wave cycle of input starts and retains the oscillations of the resonant circuit due to that output voltage is generated as shown in figure denoted as b.

What is Class C amplifier Slideshare?

Class C Amplifiers A class C amplifier conducts for less than 180. In order to produce a full sine wave output, the class C uses a tuned circuit (LC tank) to provide the full AC sine wave. Class C amplifiers are used extensively in radio communications circuits. 5.

37. Class C Amplifiers

What is voltage amplifier?

An electronic circuit whose function is to accept an input voltage and produce a magnified, accurate replica of this voltage as an output voltage. The voltage gain of the amplifier is the amplitude ratio of the output voltage to the input voltage.

What is a class A power amplifier?

A Class A power amplifier is one in which the output current flows for the entire cycle of the AC input supply. Hence the complete signal present at the input is amplified at the output. ... It is so selected that the current flows for the entire ac input cycle. The below figure explains the selection of operating point.

What is the conduction angle of Class C amplifier?

Class C Amplifier

In other words, the conduction angle for the transistor is significantly less than 180 degrees, and is generally around the 90 degrees area.

What is a class A amplifier used for?

The most commonly used type of power amplifier configuration is the Class A Amplifier. The Class A amplifier is the simplest form of power amplifier that uses a single switching transistor in the standard common emitter circuit configuration as seen previously to produce an inverted output.

Which is ideal voltage amplifier?

An ideal amplifier has infinite input impedance, zero output impedance, and a fixed gain at all frequencies. An ideal op amp has infinite input impedance and zero output impedance, but has infinite gain. ... They have very high input impedances and quite low output impedances.

How do you bias a Class C amplifier?

A simple way of supplying bias is with the RC network shown in Fig. (a). Here the signal to be amplified is applied through capacitor CI. When the emitter-base junction conducts on the positive halt cycle, CI will charge to the peak of the applied voltage less the forward drop across the emitter-base junction.

What is bias voltage in electronics?

Bias voltage is a low DC voltage, typically somewhere between 1.5 and 9.5V DC, used to power electronic circuitry located inside a condenser (or capacitor) type microphone's capsule. It is usually a fixed amount of voltage, and it is important to provide the precise amount of voltage for a given capsule design.

What is tuned voltage amplifier?

Definition: Tuned amplifiers are used to for the amplification of a specific frequency signal or a narrowband frequency signal. Basically high frequency or radio frequency signals are amplified using tuned amplifiers. Tuning (i.e., selecting) of frequency is done by using a tuned or resonant circuit at the load.

What is Class TD amplifier?

What is a TD class amplifier? The TD stands for “tracking class D,” which means that the power supply tracks the audio signal at all frequencies, supplying the required rail voltage while at the same time reserving additional headroom. ... The output frequency response has a flat output.

What does the class mean on an amplifier?

A Class-A amplifier is one in which both output stages of the device are constantly on at full power. ... The advantage of a Class-A design is that because both the input and output stages are constantly on at full power, they exhibit the most linear response with the lowest distortion of the various designs.

How are power amplifiers classified?

Power amplifier circuits (output stages) are classified as A, B, AB and C for linear designs—and class D and E for switching designs. The classes are based on the proportion of each input cycle (conduction angle) during which an amplifying device passes current. ... If the device is always on, the conducting angle is 360°.

Why is Class A bias used in oscillators?

The main use for class A bias is in low power audio and radio frequency voltage amplifiers, where the amount of power wasted is less significant than the amplifier´s main advantage of low distortion.

What is AC output power of Class A power amplifier?

Class A design produces good linear amplifiers, but are wasteful of power. The output power they produce is theoretically 50%, but practically only about 25 to 30%, compared with the DC power they consume from the power supply. Class A power amplifiers use the biasing method illustrated in Fig. 5.2.

What is the efficiency of Class C power amplifier?

Class C amplifier operates for less than half of the input cycle. It's efficiency is about 75% because the active device is biased beyond cutoff.

What is conduction angle?

The conduction angle ϕ is the angle in which the diode conducts. To determine the conduction angle, we need to find out the angles at which the diode starts and ceases conduction.

When negative voltage feedback is applied to an amplifier the voltage gain?

The following points are worth noting : (i) When negative voltage feedback is applied, the gain of the amplifier is reduced. Thus, the gain of above amplifier without feedback is 10,000 whereas with negative feedback, it is only 100.

What is voltage amplifier stage?

Voltage-amplifier stages are the basic components of commonly used high gain amplifiers the bias and other parameters of whose are set by the external negative feedback. The typical device that uses the voltage-amplifier stage is the operational amplifier.

What is current and voltage amplifier?

A voltage amplifier gives a raised value of the input value as output. While for a power amplifier the product of current and voltage achieved at the output is higher than that present at the input.
