Flank Wear is most commonly caused due to abrasive wear of the cutting edge against the machined surface. ... Flank Wear generally occurs when the speed of cutting is very high. It causes many losses but one of them is increased roughness of surface of the final product.

How does flank wear happen?

Flank wear occurs due to:

Abrasion by hard particles and inclusions in the work piece. Shearing off the micro welds between tool and work material. Abrasion by fragments of built‐up‐edge ploughing against the clearance face of the tool. At low speed flank wear predominates.

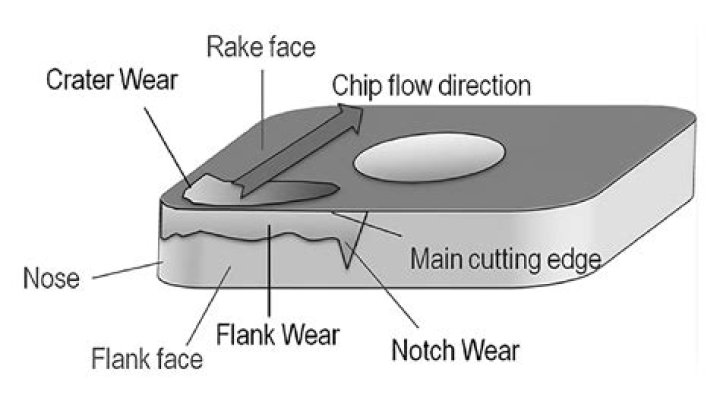

What does flank wear and crater wear mean?

flank wear in which the portion of the tool in contact with the finished part erodes. ... crater wear in which contact with chips erodes the rake face. This is somewhat normal for tool wear, and does not seriously degrade the use of a tool until it becomes serious enough to cause a cutting edge failure.

What is flank wear width?

In accordance with the ISO Standard 3685, an average width of flank wear land (VB) of 0.3 mm (considered to be regu- larly worn) is adopted for the tool life criterion, as shown in Fig. 5(b).

How is flank wear measured?

The flank wear is measured by means of differentiating the geometrical relationship of the rake face image between a new and a worn cutter [11]. This method provides an entire flank wear map along the cutting edge.

Tool Wear (Crater And Flank) (हिन्दी )

How do we measure wear?

Wear Rate and Volume

The specific wear rate for any material can be calculated using the measured average depth during each scratch. Wear rate, k, has most physical relevance when reported as volume loss per unit normal force per unit sliding distance . This shows the loss of material occurred by the wearing.

What are the causes of tool wear?

Abrasive wear is basically caused by the impurities within the work piece material, such as carbon nitride and oxide compounds, as well as the built-up edge fragments. It is a mechanical type of wear. It is the main cause of the tool wear at low cutting speeds.

What do you mean by flank wear?

Flank wear occurs at the tool flanks, where it contacts with the finished surface, as a result of abrasion and adhesion wear. The cutting force increases with flank wear. It affects the great extent of mechanics of cutting. The flank wear region is known as wear land and is measured by the width of wear land.

How do you stop crater wear?

1. Reduce cutting speed.
2. Use geometry with greater rake angle.
3. Use more wear - resistant cutting tool material.
4. Reduce feed rate.
5. Increase coolant preesure and check coolant direction.

Why does crater wear occur?

Crater wear happens on the tool face at a short distance from cutting edge by the action of chip flow over the face at very high temperature. The crater wear is mainly due to diffusion and abrasion. They are commonly observed where the continuous chip is formed (usually in the ductile material).

What is diffusion wear?

Diffusive wear refers to the damage, erosion or degradation that occurs on a metal's surface due to increased surface temperatures. This increase in surface temperature is due to constant frictional contact between two or more other metals.

What do you mean by tool life?

Tool life definition: Tool life is the duration of actual cutting time after which the tool is no longer usable. There are many ways of defining the tool life, and the common way of quantifying the end of a tool life is by a limit on the maximum acceptable flank wear.

What is notch wear?

Notch wear is another form of tool wear, which occurs at the depth of cut line as the tool rubs against the shoulder of the workpiece. This occurrence leads to abrasion on tool surface and chemically affects the cutting tool that possibly causes failure of the cutting tool.

How can I reduce flank wear?

i) Flank wear can be prevented by reducing the cutting speed. ii) Reducing the feed and depth of cut. formation of built-up edge. iv) By using good quality of carbide in the cutting tool.

What is flank face?

Flank face is the surface(s) over which the surface produced on the work-part passes. These terms will be explained very deeply to have better understanding cutting tool surfaces and elements.

Where does the crater wear happens at most?

Explanation: Crater wear is usually found while machining brittle materials. Explanation: Crater wear occurs on the rake face of the tool, while flank wear occurs on the relief (flank) face of the tool.

What is meant by built up edge?

In single point cutting of metals, a built up edge (BUE) is an accumulation of material against the rake face, that seizes to the tool tip, separating it from the chip.

What is VB in tool wear?

3.3 Tool wear in milling

Flank wear (VB): this is the loss of particles along the cutting edge, that is in the intersection of the clearance and rake faces, being observed and measured on the clearance face of end milling tools.

On which of the following surface flank wear occurs?

The wear over rake surface is known as crater wear and over flank surface is known as flank wear.

What are types of tool wear?

• Abrasive Wear. The wear land is a pattern of uniform abrasion on the cutting edge of the tool, caused by mechanical abrasion from the workpiece. ...
• Chipping. ...
• Thermal Cracking. ...
• Fracture.

What are the different types of tool wears?

• Flank wear: Flank wear is due to abrasive action of discontinuities like debris from built up edge etc. It wears out side and end flank of the tool. ...
• Crater wear: Crater wear generally occur in machining ductile material due to abrasion and diffusion of metal at face of tool. ...
• Nose wear:

What is adhesive wear?

Adhesive wear is the result of the transference of material from one surface to another, typically taking place in poorly lubricated sliding applications. As we look further into adhesive wear, it will become apparent that there are several alternative names often associated with this type of wear.

Which of the following is type of wear?

There are four basic types of wear: adhesive, abrasive, corrosive, and surface-fatigue.

How can I reduce my wear?

Wear may be prevented in many different ways. The most common techniques is to use wear resistant materials or simply by changing the material properties, e.g. by hardening. Wear can also be prevented by keeping the surfaces apart from each other. Oil and grease are commonly used for this purpose.

What is erosive wear?

Erosive wear can be defined as degradation of material due to impact of particles travelling with significant velocity. From: Developments in High Temperature Corrosion and Protection of Materials, 2008.
