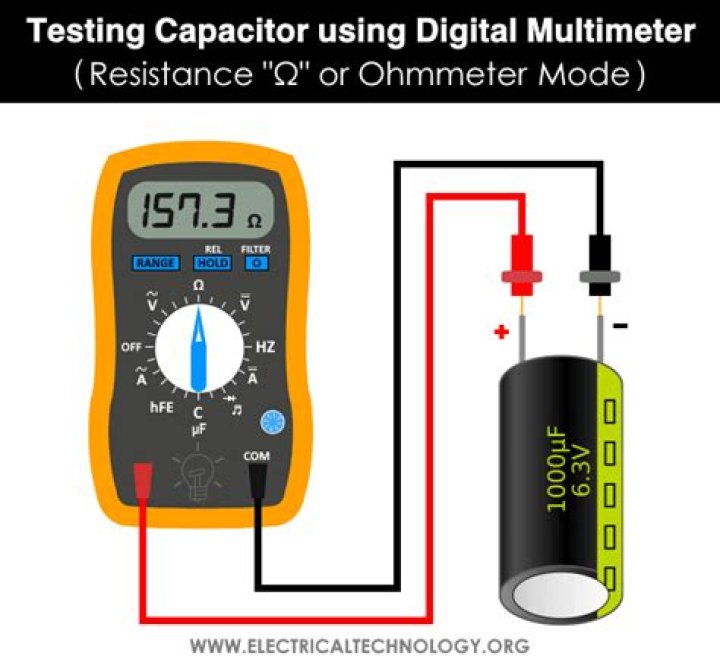

To test the capacitor with a multimeter, set the meter to read in the high ohms range, somewhere above 10k and 1m ohms. Touch the meter leads to the corresponding leads on the capacitor, red to positive and black to negative. The meter should start at zero and then moving slowly toward infinity.

How do I know if my electrolytic capacitor is bad?

A bad electrolytic capacitor gets swallow at the top side, you see such one in the circuit; just replace it without wasting your time testing it. The capacitance value may be in the good value range when you test it off the circuit with a multimeter or capacitor meter, but still, it is a bad one.

How do you test an electrolyte capacitor?

1. Make sure the suspected capacitor is fully discharged.
2. Take an AVO meter.
3. Select analog meter on OHM (Always, select the higher range of Ohms).
4. Connect the Meter leads to the Capacitor terminals.
5. Note The reading and Compare with the following results.

How do you identify the electrolytic capacitor under test is in good condition using a multimeter?

Connect the leads of the capacitor to the multimeter probes and observe the readings on the multimeter. For a good capacitor, the resistance will be low in the beginning and will gradually increase. If the resistance is low at all times, the capacitor is a Shorted Capacitor and we have to replace it.

How do you test a capacitor with an ohm meter?

To test the capacitor with a multimeter, set the meter to read in the high ohms range, somewhere above 10k and 1m ohms. Touch the meter leads to the corresponding leads on the capacitor, red to positive and black to negative. The meter should start at zero and then moving slowly toward infinity.

How to Test a Capacitor with a Multimeter and LCR Meter

How do I know if a capacitor is bad?

1. AC Not Blowing Cold Air. An air conditioner that doesn't blow cold air is one of the first signs of a problem many homeowners notice. ...
2. High and Rising Energy Bills. ...
3. Humming Noise. ...
4. Old HVAC System. ...
5. AC Turns Off On Its Own. ...
6. AC Doesn't Turn On Immediately. ...
7. AC Won't Turn On.

What is the capacitor symbol on a multimeter?

To measure capacitance, you will need to plug your leads into the correct ports on your multimeter. Your red lead goes into the port marked with the "–|(–” symbol. This is the symbol for capacitance. Your black lead will be plugged into the port marked with “COM”.

How do you value an electrolytic capacitor?

The amount of charge stored in a capacitor is calculated using the formula Charge = capacitance (in Farads) multiplied by the voltage. So, for this 12V 100uF microfarad capacitor, we convert the microfarads to Farads (100/1,000,000=0.0001F) Then multiple this by 12V to see it stores a charge of 0.0012 Coulombs.

How does an electrolytic capacitor fail?

As the temperature increases the internal pressure inside the capacitor increases. If the internal pressure becomes great enough, it can cause a breach in the capacitor, which can then cause leakage of impregnation fluid or moisture susceptibility.

How do you test an electrolytic capacitor SMD?

1. Look for any capacitors showing signs of discoloration or charring. Sometimes a failure is obvious. ...
2. Test capacitors in the circuit with a multimeter set to measure resistance. ...
3. Remove the capacitor from the circuit to test it.

How do you test a PCB with a multimeter?

To test circuit board properly, touch the multimeter probes to the test points present on the board. Make sure while playing out this step you have your hands on the plastic portion of the probes. You can then go on to check either the voltage or resistance.

How do I know if my TV capacitor is bad?

Read the display on the meter. If the value read by the capacitance meter is more or less than 10 percent of the rating printed on the capacitor, then it is working properly. If not, the capacitor is damaged and should be replaced.

Do electrolytic capacitors go bad?

If an electrolytic capacitor is simply unused for an extended period of time, the dielectric will degrade; the longer it is not used, the worse the dielectric becomes. The capacitance is reduced, and the leakage rate increases.

How do you read a capacitor?

If you have a capacitor that has nothing other than a three-digit number printed on it, the third digit represents the number of zeros to add to the end of the first two digits. The resulting number is the capacitance in pF. For example, 101 represents 100 pF: the digits 10 followed by one additional zero.

How do you test a capacitor in a circuit?

1. Use your digital multimeter (DMM) to ensure all power to the circuit is OFF. ...
2. Visually inspect the capacitor. ...
3. Turn the dial to the Capacitance Measurement mode. ...
4. For a correct measurement, the capacitor will need to be removed from the circuit. ...
5. Connect the test leads to the capacitor terminals.

Which side is positive on capacitor?

Electrolytic capacitors have a positive and negative side. To tell which side is which, look for a large stripe or a minus sign (or both) on one side of the capacitor. The lead closest to that stripe or minus sign is the negative lead, and the other lead (which is unlabeled) is the positive lead.

Will an electric motor run with a bad capacitor?

Run Capacitors

If a run capacitor fails, the motor can display a variety of problems including not starting, overheating, and vibrating. A bad run capacitor deprives the motor of the full voltage it needs to operate correctly.

Can you test a capacitor for continuity?

Check continuity of the capacitor. Set the multimeter to the continuity check setting. Touch the black lead to the ground side of the capacitor and the red lead to the other side. If continuity exists (you'll hear a long beep), the capacitor is short-circuited and should be discarded.

Can a capacitor read good but be bad?

It can, and most often does, although it is probably lower in capacitance than it originally was, but still usually within tolerance. There isn't likely to be a problem with leakage. There are two ways to test an ESR meter, a circuit unpowered or an oscilloscope.

What is the function of electrolytic capacitor?

Like other conventional capacitors, electrolytic capacitors store the electric energy statically by charge separation in an electric field in the dielectric oxide layer between two electrodes. The non-solid or solid electrolyte in principle is the cathode, which thus forms the second electrode of the capacitor.
