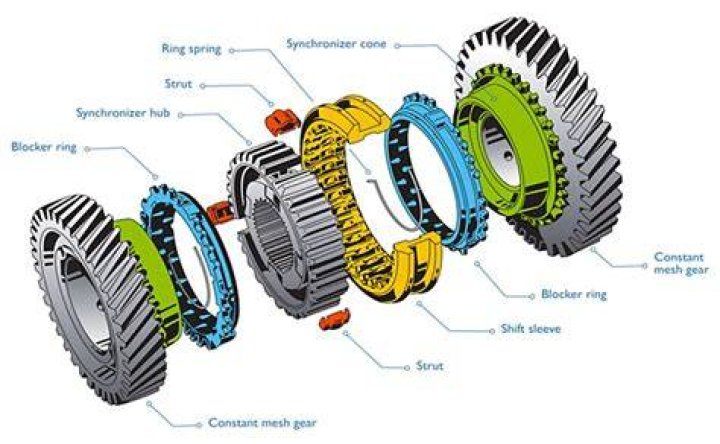

A synchronizer adjusts the speed of the shaft so that the gears align more quickly as you shift. The slider pushes against the keys or balls in the synchronizer, which then push against the blocker ring. That ring then pushes against the gear's cone, and the friction it causes helps the shaft speeds to equalize.

Do manual transmissions have synchronizers?

In most manual transmissions, gears ride on the output shaft and are meshed to gears on the countershaft. ... The synchronizer adjusts shaft speeds and aligns the gears as you shift so the slider can mesh with the next gear. There is more than one synchronizer assembly in a manual transmission.

What symptoms will your manual transmission have if your synchronizers are bad?

When something's wrong with the synchronizer, the first sign is usually a whirring or humming noise. This is the case if you're hearing the sound at just one specific gear, rather than through the full range of gears. Similarly, problems with the synchronizer can cause a grinding sound.

What is the main function of synchronizer?

Synchronizer is a kind of a clutch, and it allows components turning at different speeds to synchronize their speeds by using cone friction. Synchronizers have two important functions: synchronizing speeds of components, and preventing engagement of gears until synchronization is achieved.

How does a synchromesh unit work?

The synchromesh has an inner spline that coincides with the output shaft and then an outer spline that allows an inner ring to move internally within the gear. This outer ring is designed to only mesh with the bulk ring once their speeds are matched, meshing the teeth together.

Synchromesh unit (Manual Car Transmission) - How it works

What is synchromesh type gearbox explain?

A synchromesh gearbox is a usually manually operated transmission in which a change of gears takes place between gears that are already revolving at the same speed. It is often claimed that a synchromesh gearbox requires less effort to change gears.

Why synchromesh action is needed in a gearbox?

The need for synchromesh in a constant-mesh transmission is that the dog clutches require the input shaft speed to match that of the gear being selected; otherwise, the dog teeth will fail to engage and a loud grinding sound will be heard as they clatter together.

What are synchronizers?

Synchronizers are the central component of the transmission featuring interfaces to the output, the clutch and, by way of the gear shift, to the driver. The layout and design of the synchronizers play an essential role in how the driver experiences the gear shift.

What are Synchros in a transmission?

A synchronizer, or "synchro," lets the collar and gear synchronize their speeds while they're already in contact but before the dog teeth engage. ... The gear and collar synchronize their speeds thanks to the friction between the cone and collar.

What does synchronized mean on transmission?

Currently, most manual transmissions are synchronized, which means gear shifts can be completed quickly and with low shift-knob force for most operating conditions. Synchronizers make this possible because they equalize the speeds of rotating gears and shafts inside transmissions before gear shifts are completed.

Is Double clutching bad for Synchros?

While double clutching is not necessary in a vehicle that has a synchronized manual transmission, the technique can be advantageous for smoothly upshifting in order to accelerate and, when done correctly, it prevents wear on the synchronizers which normally equalize transmission input and output speeds to allow ...

How do synchronizers go bad?

Improper clutch adjustment is the #1 cause for synchro failure in the 3S 5-6 speed trans. The original synchros are a good design and can withstand a lot of abuse, but once a clutch starts to drag and the driver starts to force the trans into gear, the synchro rings will be badly damaged in short time.

What causes a manual transmission to jump out of gear?

Popping out of gear is a common problem when it comes to manual transmissions. The most common reason a manual transmission would jump out of gear is due to low or contaminated fluid, worn synchronizers inside the transmission, or improperly adjusted shift linkage.

What holds a manual transmission in gear?

The clutch sits between the engine and gearbox of the transmission. ... With engine power disconnected from the transmission, shifting gears is much easier and prevents damage to the transmission gears. This is why whenever you shift gears, you push the clutch pedal and disengage the clutch.

What makes a manual transmission hard to shift?

A defective or worn clutch causes hard shifting.

Still, other areas need to be considered when diagnosing a hard shifting problem. Worn shift cables, loose linkage, and bent shift rails are also common. Bearings: When bearings are worn and begin to bind or offer resistance, hard shifting occurs.

What are Synchros made of?

A synchro's inner hub and sleeve are made of steel, but the blocking ring -- the part of the synchro that rubs on the gear to change its speed -- is usually made of a softer material, such as brass.

What is the difference between synchro and non synchro?

Gearboxes. WHAT'S THE DIFFERENCE BETWEEN NON-SYNCHRO, SYNCHROMESH AND AUTO GEARBOXES IN TRUCKS? A synchromesh gearbox does not require the driver to double clutch as the gearbox has synchro rings which match the road speed and the engine revs which allows the gear to be selected.

What are synchronizers in VLSI?

A synchronizer is a digital circuit that converts an asynchronous signal/a signal from a different clock domain into the recipient clock domain so that it can be captured without introducing any metastability failure.

What are the three types of synchronizers used in transmissions?

• single-cone synchronizer.
• dual-cone synchronizer.
• triple-cone synchronizer.

What is synchronizer cone?

A cone synchronizer acts as a clutch, allowing the two gears to spin at the same speed just prior to the gears meshing. This allows for smooth transitions between gears during vehicle operation.

What is synchronizer unit?

In automobiles, a synchronizer is part of a synchromesh manual transmission that allows the smooth engagement of gears. In aerial warfare, a synchronizer is a device that permits an automatic weapon to fire between the blades of a revolving propeller.

Why are synchronizers used in transmission?

A synchronizer adjusts the speed of the shaft so that the gears align more quickly as you shift. The slider pushes against the keys or balls in the synchronizer, which then push against the blocker ring. That ring then pushes against the gear's cone, and the friction it causes helps the shaft speeds to equalize.

Why does synchromesh transmission different from basic transmission?

A synchromesh gearbox does not require the driver to double clutch as the gearbox has synchro rings which match the road speed and the engine revs which allows the gear to be selected.

What is the main type of gear used in a synchromesh gearbox?

In this, a synchromesh device is used in between two main shaft gears to equalize the speed by friction after which these may be engaged smoothly. A is the engine shaft having clutch gear B rotate at engine speed, gear B, C, D, E are on the main shaft and gear U1, U2, U3, and U4 are the gear on the layshaft.
