The most basic repeater consists of an FM receiver on one frequency and an FM transmitter on another frequency usually in the same radio band, connected together so that when the receiver picks up a signal, the transmitter is keyed and rebroadcasts whatever is heard.

How does a repeater radio system work?

How does a radio repeater work. A radio repeater simultaneously receives a radio signal and re-transmits it at a higher power so it can cover greater distances. ... Repeaters receive radio waves on one frequency, called the “input” frequency, and then re-transmit the information on its “output” frequency.

Do ham radios need repeaters?

Most ham radio contacts on the VHF and UHF bands are made with repeaters. Repeaters are most useful for local and regional communication, allowing individual hams to use low-power handheld or mobile radios to make contacts over that same wide area.

How far can a ham radio repeater transmit?

If your signal bounces off of just one repeater, the range can get up to 50 miles. With a strong network of repeaters, a transmission could be daisy-chained to span the country. A repeater can't receive and transmit at the same time on the same frequency, just like normal transceivers. This is called simplex.

How do I increase the range of my ham radio?

1. Elevate your antenna. Antennas are a vital solution to achieve clear communication not only within base stations, but in temporary and mobile situations as well. ...
2. Invest in a rebroadcast system. ...
3. Increase power.

What is a Repeater in Ham Radio | How Ham Radio Works

How do you talk on a ham repeater?

1. Select the repeater frequency.
2. Wait for a space between transmissions if the repeater is busy.
3. Key your mic and state..."Emergency, Emergency, Emergency" unkey.
4. Wait for a response from the repeater users. If you get no response, try another repeater.

How do ham repeaters work?

The most basic repeater consists of an FM receiver on one frequency and an FM transmitter on another frequency usually in the same radio band, connected together so that when the receiver picks up a signal, the transmitter is keyed and rebroadcasts whatever is heard.

How do repeaters work?

How does it work? A repeater receives the radio signal on one frequency and simultaneously transmits the same signal on another frequency. Typically, a repeater is placed in a location where it can have a virtual line of sight to all radios in the system.

How do repeaters communicate?

To use a repeater, you must have a transceiver that can transmit on the repeater's input frequency and receive on the repeater's output frequency. The input and output frequencies are separated by a predetermined amount that is different for each band. This separation is called the offset.

How do I know if I am connected to a ham repeater?

On most repeaters, you will hear a short transmission coming back from the repeater along with a courtesy beep. A courtesy beep is just a short audio tone or tone sequence that occurs after someone finishes transmitting. If you hear the beep, then you accessed the repeater. Congratulations!

Why would you need to use a repeater?

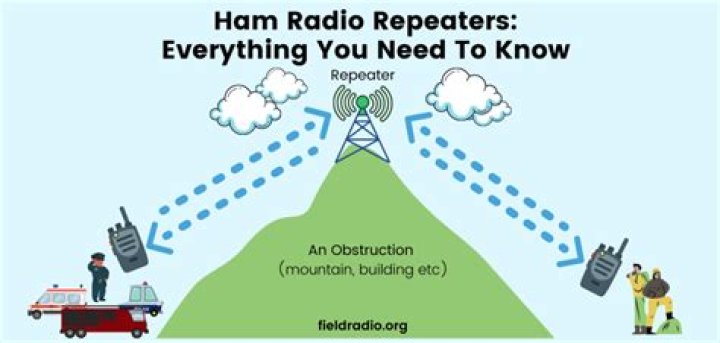

Repeaters are used to extend transmissions so that the signal can cover longer distances or be received on the other side of an obstruction. Some types of repeaters broadcast an identical signal, but alter its method of transmission, for example, on another frequency or baud rate.

How far will a repeater transmit?

Repeaters within signal range of each other cannot transmit on the same frequency and PL tone without causing interference. Repeater range is roughly 25 miles. Areas of higher network usage require more repeaters than areas of less network usage in order to provide coverage for all operators and minimize interference.

How do you know if you hit a repeater?

The simple answer is to transmit on the repeater's input frequency, saying something like " < your callsign > testing" and listen for the repeater's courtesy beep (assuming there is one) on its output. If you've heard the beep, then you've hit the repeater.

How often do repeaters identify?

You will also typically hear the repeater identify itself with either Morse Code tone patterns or by recorded or electronic voice ID at least every 10 minutes.

How does a repeater duplexer work?

A duplexer typically consists of two band pass filters connected in parallel. One filter provides a path between the transmitter and the antenna, the other provides a path between the antenna and the receiver. No direct path between the transmitter and receiver exists.

How do you key a repeater?

1. Select the repeater frequency.
2. Wait for a space between transmissions if the repeater is busy.
3. Key your mic and state..."Emergency, Emergency, Emergency" unkey.
4. Wait for a response from the repeater users. If you get no response, try another repeater.

How far can a HAM radio reach?

You can realistically get about 2-18 miles of range with a handheld Ham radio unless you have a particularly powerful base station with a large antenna, in which case your range can be hundreds of miles.

What does offset mean in ham radio?

Offset is the difference between a radio channel's receive and transmit frequencies. Most commonly it refers to the separation between the input frequency and output frequency of a repeater or other type of full duplex system.

How far can a 5 watt ham radio transmit?

So according to our rule-of-thumb, 2 people around 6 feet tall using a 5 watt handheld two-way radio, used on flat ground with no obstacles, will have a maximum range of approximately 6 miles.

How far will a 1000 watt FM transmitter reach?

If a 1000 Watts of power is used, it is very likely that signal will only propagate just over 20 miles.
