The welding variable that has the greatest effect on the degree of weld penetration is current (measured in amperage or amps). Quite simply, as welding current increases (i.e., more amperage), weld penetration increases and as welding current decreases (i.e., less amperage), weld penetration decreases.

What are the variables that affect weld penetration?

There are many other variables that can affect penetration. Among these other variables are: base material type, base material thickness, base material surface condition (presence of oil, rust, mill scale), use of preheat, and electrode diameter (at a given amperage a smaller electrode will have deeper penetration).

How do you control weld penetration?

1. Reduce the welding current.
2. Decrease the welding arc voltage.
3. Reduce travel speed so that the weld metal can fill completely all of the melted-out areas of the base metal.
4. Clean the gun nozzle inside the contact tube or remove the jammed electrode wire when erratic wire feed occurs.

What is penetration in welding?

Weld Bead Characteristics PENETRATION Weld penetration is the distance that the fusion line extends below the surface of the material being welded. Welding current is of primary importance to penetration. As Figure 7-7 illustrates, weld penetration is directly related to welding current.

Which welding technique have more penetration?

It can be seen that generally the forehand welding technique yields shallower penetration than does the backhand technique. Maximum weld penetration is achieved with a torch angle of 25 deg. and the backhand welding technique. However, beyond this degree of torch angle, arc instability and spatter will increase.

Tips for Good Welding Penetration - Kevin Caron

Why is penetration in welding important?

Welding is fusing material together to create a significantly stronger bond than you'd get if you were simply slapping filler on top of your base metals. Subsurface fusion is only possible by having adequate penetration. ... There's several factors that contribute to the overall penetration of your weld.

How much penetration is needed for welding?

100% penetration is necessary for full strength on butt weld joints, for fillet welds penetration into the root is important but 100% is not practical. for thick to thin butt welds, penetration and cross sectional thickness of at least the thinner member is usually the goal.

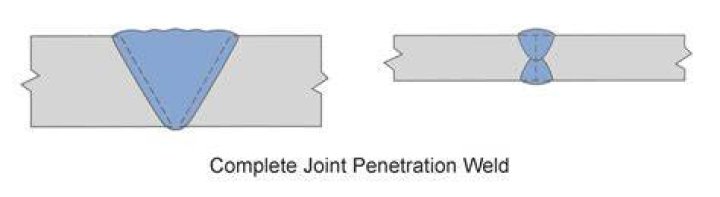

What is complete joint penetration weld?

The Complete Joint Penetration (CJP) groove weld is a groove weld that extends completely through the thickness of components joined. The primary purpose for the use of the CJP groove welds is to transmit the full load-carrying capacity of the structural components they join.

What is incomplete penetration in welding?

Incomplete joint penetration is described as a joint root condition in a groove weld in which weld metal does not extend through the joint thickness. It is the failure of filler metal or base metal to completely fill the root of the weld.

How does stick out affect joint penetration?

Electrode extension (stick-out length) is the length of the filler wire that extends past the contact tube. ... As the extension length is increased, the preheating of the wire increases and the current is reduced. The current reduction in turn, decreases the amount of penetration into the work piece.

Why are my welds not penetrating?

Most of the time, porosity is caused by a dirty surface. When the base metals are not cleaned properly, the welder just can not penetrate properly, and on top of that, it will create porosity in your bead, which will weaken the weld even more.

How can you avoid too much loss of weld and have good penetration?

Properly tack parts to avoid extra spatter, poor weld aesthetics and less-than-adequate weld penetration. When using anti-spatter spray, take care not to use too much, as it can enter the weld joint and cause problems with weld penetration or even more spatter.

What are the 4 variables that will affect the quality of your weld?

There are so many welding variables that influence a weld's quality; the variables are amps, volts, travel speed, filler metal, shielding gas, base material, etc.

What are the variable The welder has control over prior to welding?

The welder controls the amperage variable by setting the amperage on the welding machine prior to welding. The amperage setting varies according to the size of the electrode, the type of electrode, and the type of current AC, DCEN or DCEP you are using. Amperage may be referred to as the heat by some welders.

What is weld penetration depth?

Weld penetration depth (WPD) is a key measurement of weld quality because it directly affects the strength of welded parts. Traditionally, cut-check is used to determine whether welding settings in a production line are producing satisfactory WPDs [1]. The cut-check method is direct but costly and inefficient.

What is full penetration and partial penetration weld?

In a full penetration weld, the metal pieces are fused using butt weld that fuses completely with the base metal. ... If you had done partial penetration welding, the fused metal will have a lower strength resistance factor as compared to the base metal.

What is the difference between full penetration weld and fillet weld?

A PJP weld only fills a portion of the gap as seen in Figure 5.1. 2 parts D, E, F, and G. PJP welds are used when it is not required to develop the full strength of the connected parts to transfer the load. Fillet welds do not penetrate the gap between the parts being connected.

What is fusion and penetration in welding?

Penetration (depth of fusion) is the distance that fusion extends into the base metal or previous pass from the surface melted during welding. A full or complete penetration weld can be a really thick weld that has been beveled and then penetrated by being filled with multiple weld passes.

What causes overlap in welding?

Overlap occurs when molten metal flows over the surface of the base material and then cools without fusing with the base material. A typical cause of overlap is the supply of too much weld metal due to low welding speed. Overlap in fillet welds is caused by the droop of excessive molten metal due to gravity.

Which factor will prevent lack of root penetration?

Best practice in prevention

The following techniques can be used to prevent lack of root fusion: In TIG welding, do not use too large a root face or too small a root gap and ensure the welding current is sufficient for the weld pool to penetrate fully the root.

What are 4 preventive measures of excessive weld reinforcement?

Preventive Measures: Use appropriate welding amperages, manipulation speeds, arc lengths (arc voltages), and electrode travel and work angles.

What is distortion in welding?

Distortion in a weld results from the expansion and contraction of the weld metal and adjacent base metal during the heating and cooling cycle of the welding process. Doing all welding on one side of a part will cause much more distortion than if the welds are alternated from one side to the other.

How do you choose welding parameters?

The four important parameters are the welding current, wire electrode extension, welding voltage and arc travel speed. These parameters will affect the weld characteristics to a great extent. Because these factors can be varied over a large range, they are considered the primary adjustments in any welding operation.

How defects affect a welded joint?

Defects in weld joints could result in the rejection of parts and assemblies, costly repairs, significant reduction of performance under working conditions and, in extreme cases, catastrophic failures with loss of property and life.
