A homopolar motor is one of the simplest motors built due to the fact that it uses direct current to power the motor in one direction. The magnet's magnetic field pushes up towards the battery and the current that flows from the battery travels perpendicularly from the magnetic field.

How are homopolar motor used?

The most common use of homopolar motors is in generators that are installed in electroplating process plants. The generators use direct current (DC) and low voltage, but the current in the motors is high enough to operate the heavy machinery.

How does homopolar generator work?

A homopolar generator is a DC electrical generator comprising an electrically conductive disc or cylinder rotating in a plane perpendicular to a uniform static magnetic field. ... Also, the homopolar generator is unique in that no other rotary electric machine can produce DC without using rectifiers or commutators.

How does a magnetic motor work simple?

This simple electric motor works by the magnetic force F = IL x B. The magnetic field at both of these spots points in the same direction. ... Thus, the magnetic force on the wire at opposite ends of the loop points in opposite directions, causing it to spin.

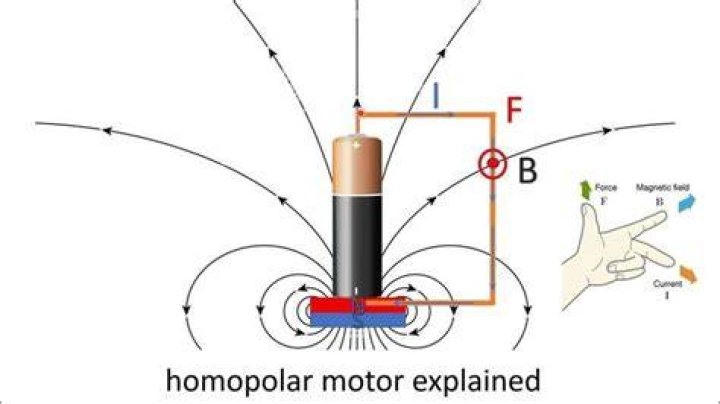

How does a homopolar motor work and Lorentz force?

The homopolar motor is driven by the Lorentz force. A conductor with a current flowing through it when placed in a magnetic field which is perpendicular to the current feels a force in the direction perpendicular to both the magnetic field and the current. This force provides a torque around the axis of rotation.

Physics - Homopolar Motor Explained

What is a homopolar motor simple explanation?

A homopolar motor is a direct current (DC) electric motor which produces constant circular motion. ... Because the polarities of the magnetic fields do not change (hence the name homopolar), the direction of the force will not change and the wire will rotate in a constant circular motion.

Why do homopolar motors spin?

A homopolar motor creates rotational movement because of what is known as the Lorentz force. What's happening is that electrical current is flowing from the positive terminal of the battery to the negative and into the magnet.

How does a motor spin?

Inside an electric motor, permanent magnets are set onto a ring surrounding a coil of wire. When the appliance's switch is flicked on, electrons flow through the wire, turning it into an electromagnet. The attractive and repulsive forces of the permanent magnets around it make the electromagnet spin.

Why does my Homopolar Motor not work?

If the motor doesn't begin to spin, try flipping the magnet so the other side is touching the battery. If it still doesn't work you will need to tweak your wire sculpture. Remove the battery from the magnet while you work, so it does not get too hot.

What is the advantage of homopolar motor?

Compared to general motors, this motor has the advantages of simple structure, high rotor strength, and low iron loss in rotation.

How does senku's generator work?

Using the successfully completed iron, Senku takes advantage of a sudden thunderstorm to turn it into powerful magnets. Using these, the gang build a power generator which they manage to convince Kinro and Ginro to operate, leading to the reinvention of the lightbulb.

Why does copper wire spin on a battery?

The copper wire will spin around. When the wire touches the top of the battery and the magnet, it is making a circuit, which allows electrons to flow – this is the current. ... This force, which is called a Lorentz Force, acts on the wire and causes it to move, which makes the wire spin around.

How does a Faraday motor work?

Faraday connected his apparatus to a battery, which sent electricity through the wire creating a magnetic field around it. This field interacted with the field around the magnet and caused the wire to rotate clockwise. This discovery led Faraday to contemplate the nature of electricity.

How does a unipolar motor work?

A unipolar motor (also called homopolar motor) is a direct current (DC) motor typically with slip-rings on each end of a cylindrical rotor and field magnets or a DC field winding generating a magnetic field on the stator. ... It is useful for generating very large currents at low voltage.

What is principle of electric motor?

An electric motor works on the principle that when a rectangular coil is placed in a magnetic field and a current is passed through it, a force acts on the coil which rotates it continuously. Hence, electrical energy is converted into mechanical energy.

How do motors work physics?

A simple electric motor can be built using a coil of wire that is free to rotate between two opposite magnetic poles. When an electric current flows through the coil, the coil experiences a force and moves. ... When the electric current changes direction, the same end of the electromagnet becomes its south pole.

How do brushes work in an electric motor?

Simply put, carbon brushes reduce the damage to the motor. The block of carbon, referred to as a brush, carries a current back and forth from the stationary parts of a motor to the moving parts. These brushes also help transmit electricity from outside the motor to the mid part, or spinning area of the motor.

Do you need copper wire for a homopolar motor?

Before you can start making a homopolar motor you need a double A battery, Copper wire (The thicker the wire, the slower the motor will go), Neodymium magnet (also known as "rare earth magnets"), Needle nose pliers, and a Wire cutter.

Can magnet and copper wire produce electricity?

Can you make electricity from magnets? Yep, just as we can make magnets from electricity, we can also use magnets to make electricity. ... If you move a magnet quickly through a coil of copper wire, the electrons will move - this produces electricity.

Do magnets affect batteries?

No, a magnet will not affect a common household battery. A very strong magnet, one not typically found in the house or office may, in theory, could cause a short in a non-ferromagnetic battery which includes lithium-ion, lithium polymer, and coin cells. ...

Is a homopolar motor A DC motor?

First created in 1821, the homopolar motor was the first electrical motor to be built. A homopolar motor is a direct current (DC) electric motor which produces constant circular motion. The great thing is that the homopolar motor is the simplest example of a motor possible.

What energy conversion is involved in the homopolar motor?

Motors are designed to transfer electrical energy into kinetic energy.

What is a brush motor?

A brushed DC electric motor is an internally commutated electric motor designed to be run from a direct current power source. ... Since the brushes wear down and require replacement, brushless DC motors using power electronic devices have displaced brushed motors from many applications.
