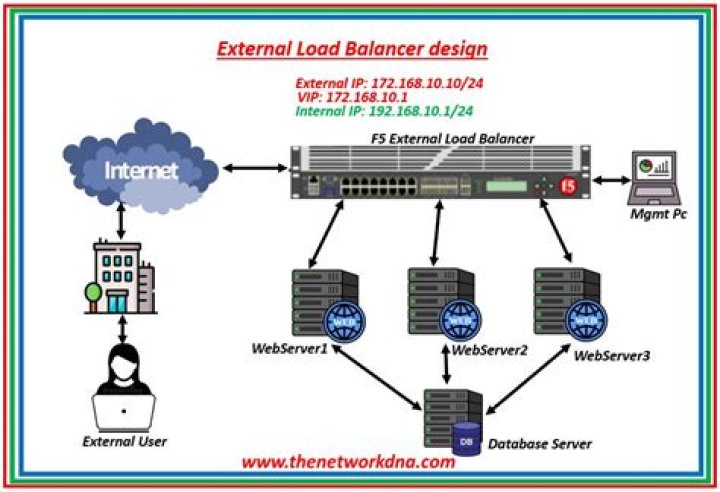

F5 load balancer ensures seamless failover in cases where a server is down or overloaded. It redirects the traffic to other servers that could handle the load. HA deployment consists of two BIG-IP (like other load balancers) systems, synchronized with the same configuration: An active system that processes traffic.

Can F5 be a load balancer?

F5 load balancers are very important devices for distributing and balancing application and network traffic across servers. That is done in order to increase system capacity, with a fast and seamless delivery of packets.

What is F5 load balancing methods?

Those methods are: Least Connections, Weighted Least Connections, Fastest, Observed, and Predictive. The Least Connections methods are relatively simple in that the BIG-IP system passes a new connection to the pool member or node that has the least number of active connections.

How do you implement F5 load balancer?

1. On the F5 home page, click Local Traffic > Pools > Pool list.
2. Click the Members tab.
3. Click Add.
4. Click Node List.
5. In the Address list, click to select the node that you want to add to the pool.
6. Enter the service port number.
7. Keep the default configurations.
8. Click Finished. A node is added to a pool.

What is Cisco F5 load balancer?

A load balancer is a device that acts as a reverse proxy and distributes network or application traffic across a number of servers. Layer 4 load balancers act upon data found in network and transport layer protocols (IP, TCP, FTP, UDP). ...

F5 LOAD BALANCER BASICS

How do you use a load balancer?

1. Step 1: Select a load balancer type. ...
2. Step 2: Define your load balancer. ...
3. Step 3: Assign security groups to your load balancer in a VPC. ...
4. Step 4: Configure health checks for your EC2 instances. ...
5. Step 5: Register EC2 instances with your load balancer. ...
6. Step 6: Tag your load balancer (optional)

How Load Balancer works in Microservices?

A load balancer acts as the “traffic cop” sitting in front of your servers and routing client requests across all servers capable of fulfilling those requests in a manner that maximizes speed and capacity utilization and ensures that no one server is overworked, which could degrade performance.

Does load balancer have IP address?

These are the IP addresses where the clients should send the requests that are destined for the load balancer. However, Classic Load Balancers and Application Load Balancers use the private IP addresses associated with their elastic network interfaces as the source IP address for requests forwarded to your web servers.

How does load balancing router work?

Load balancing routers are able to automatically detect the loss of a connection. This is referred to as “internet failover,” or when the primary connection is down. Then, the load balancing router will route all internet traffic through the remaining live connection(s).

Why load balancer is required?

The main purpose of load balancing is to prevent any single server from getting overloaded and possibly breaking down. In other words, load balancing improves service availability and helps prevent downtimes.

How do I check my F5 load balancer?

Go to Local Traffic >> Pools and select www_pool and then Members from the top bar or you could click on the Members link in the Pool List screen. As you look at the drop-down menu, notice most load balancing methods have two options: (Node) or (Member).

How do I check traffic on F5 load balancer?

1. Verify the Active Connections Graphs. In the GUI > Statistics > Performance > Select a period of time ( For example 30 days) ...
2. For more granular information , you can use the "tmsh show ltm virtual", it will show you the Total number of connection, Concurrent connections, etc.

What is F5 device?

F5 BIG-IP Software. A blend of software and hardware that's a load balancer and a full proxy. It gives you the ability to control the traffic that passes through your network.

Is F5 hardware or software load balancer?

Load balancers typically come in two flavors: hardware‑based and software‑based. Vendors of hardware‑based solutions, (ie F5 Networks or Citrix), load proprietary software onto the machine they provide (like a BIG-IP or VIPRION device), which often uses specialized processors and FPGAs.

What is Virtual IP in F5?

A Virtual IP, or VIP, also known as a Virtual Server is a key component in any BIG-IP configuration. ... For instance if you have a server hosting your web application living behind an F5 device, it would no longer have a public facing internet address.

Does load balancing increase latency?

Because load balancing takes place within a region and traffic is only forwarded, there is no significant latency impact compared with having no load balancer.

Should I enable load balancing on my router?

Advantages of the Load Balancing Router:

It helps in improving the network bandwidth speed and overall performance. It improves Internet redundancy with the help of several techniques like bandwidth aggregation. It can dynamically distribute the overall traffic across each connection.

Does load balancing increase bandwidth?

In computer networking, load balancing aims to optimize connectivity, maximize bandwidth, minimize latency, and avoid the overload of any single Internet connection. By using multiple connections with load balancing, users are able to improve reliability and availability through redundancy.

Can you ping a load balancer?

2 Answers. Regular icmp traffic is not allowed on Azure load balancers, you should either try a port ping (psping), telnet, nmap, nc, or other utilities to check E2E connectivity. Not only ICMP, any traffic from backend VM to frontend IP of internal load balancer will not work.

Does load balancer change IP?

Each load balancer node in the Availability Zone uses this network interface to get an IPv4 address. ... You cannot change these Elastic IP addresses after you create the load balancer. When you create an internal load balancer, you can optionally specify one private IP address per subnet.

How do you determine load balancing?

To test network load balancing, connect a browser to the cluster IP address, for example: Refresh the screen multiple times. If the cluster is operating successfully, web pages from different machines in the cluster appear after each refresh.

How is load balancing implemented?

Edit: Load balancing can be implemented by DNS round robin too. Each DNS lookup call returns another IP address for the same domain name. The client choose an IP and connects to this server. Another client can use the next IP.

What is the difference between API gateway and load balancer?

Those services communicate via APIs; the API gateway ensures that those services interoperate properly in an overall deployment. ... As an example, an API gateway connects microservices, while load balancers redirect multiple instances of the same microservice components as they scale out.

Does Eureka do load balancing?

What is Eureka? Eureka is a REST based service that is primarily used in the AWS cloud for locating services for the purpose of load balancing and failover of middle-tier servers. We call this service, the Eureka Server. ... The client also has a built-in load balancer that does basic round-robin load balancing.
