To calculate the cumulative frequencies, add the frequencies together. A cumulative frequency diagram is drawn by plotting the upper class boundary with the cumulative frequency. ... Cumulative frequency is plotted on the vertical axis and length is plotted on the horizontal axis.

How do you construct a cumulative frequency distribution curve?

1. set up a frequency distribution table.
2. find the frequency for each class interval.
3. locate the endpoint for each class interval.
4. calculate the cumulative frequency by adding the numbers in the Frequency column.
5. record all results in the table.

How do you do cumulative frequency graphs?

Using a cumulative frequency diagram is a good way to find an estimate of the median average, or middle, value, and interquartile range. To find the median, work out of the total frequency. Find this value on the vertical axis (the cumulative frequency axis). Draw a line across until it meets the curve.

What is the cumulative frequency graph?

A cumulative frequency graph shows the total number of values that fall below the upper boundary of each variable. All this means is that it represents the running-total of frequencies.

Are cumulative frequency graphs curves?

Cumulative frequency is the running total of the frequencies. On a graph, it can be represented by a cumulative frequency polygon, where straight lines join up the points, or a cumulative frequency curve.

Cumulative Frequency

What is frequency and cumulative frequency?

Frequency: Total number of times data occurs in the set is known as frequency. Relative Frequency: Relative frequency is the fraction or proportion times an answer occurs in the data set. ... Cumulative Relative Frequency: Cumulative frequency is the collection of all previous frequencies together.

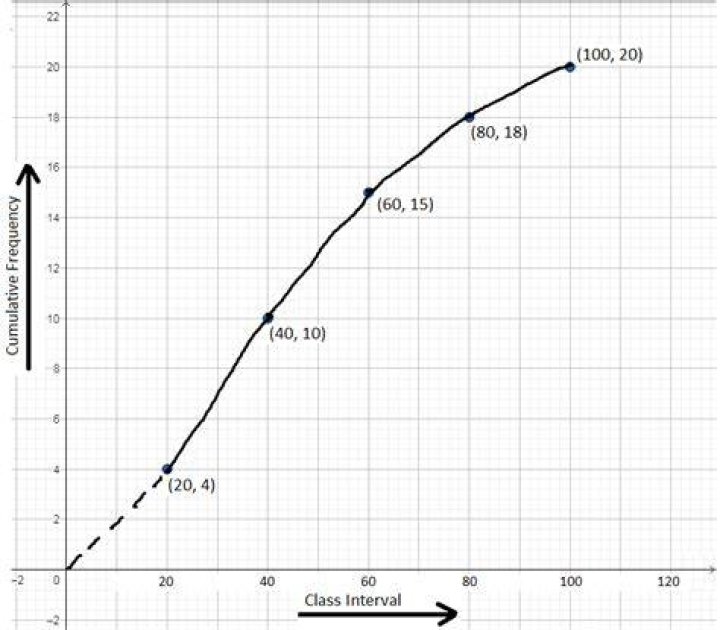

How do you draw a cumulative frequency curve?

1. Draw and mark the horizontal and vertical axes.
2. Take the cumulative frequencies along the y-axis (vertical axis) and the upper-class limits on the x-axis (horizontal axis).
3. Against each upper-class limit, plot the cumulative frequencies.
4. Connect the points with a continuous curve.

What is cumulative frequency example?

The cumulative frequency of a value of a variable is the number of values in the collection of data less than or equal to the value of the variable. For example: Let the raw data be 2, 10, 18, 25, 15, 16, 15, 3, 27, 17, 15, 16. The cumulative frequency of 15 = 6 (Since, values ≤ 15 are 2, 10, 15, 15, 3, 15).

How many types of cumulative frequency are there?

How Many Types of Cumulative Frequency are There? There are two types of cumulative frequencies, Less than cumulative frequency and More than cumulative frequency.

How do you construct a frequency curve?

Complete Step by Step Solution:

1) We will plot the histogram for the data values. 2) Then, we will point the midpoints of the class interval on the histogram. 3) Now we will join the midpoints using the straight lines. 4) The graph joined by using straight lines is called frequency polygon.

What is the name of cumulative frequency curve?

An ogive (oh-jive), sometimes called a cumulative frequency polygon, is a type of frequency polygon that shows cumulative frequencies. In other words, the cumulative percents are added on the graph from left to right. An ogive graph plots cumulative frequency on the y-axis and class boundaries along the x-axis.

What is the frequency curve?

A smooth curve which corresponds to the limiting case of a histogram computed for a frequency distribution of a continuous distribution as the number of data points becomes very large.

How do you solve CF?

To find the cumulative frequency of this value, we just need to add its absolute frequency to the running total. In other words, take the last cumulative frequency you found, then add this value's absolute frequency. Example: 3 | F = 2 | CF = 2.

How do you get CF?

To get CF, you have to inherit the mutated copy of the gene from both of your parents. Ninety percent of those with affected have at least one copy of the F508del mutation. If you inherit only one copy, you won't have any symptoms, but you will be a carrier of the disease.

How do you calculate more than CF?

Now, more than type frequency can be calculated by subtracting all the proceeding frequencies from the sum of all the frequencies.

Is cumulative frequency always non decreasing?

One way to tell them apart is to remember that a cumulative frequency graph never decreases.

What is a cumulative frequency distribution?

A cumulative frequency distribution is a summary of a set of data showing the frequency (or number) of items less than or equal to the upper class limit of each class.

How do you calculate cumulative frequency in SPM?

Cumulative Frequency of a data or a class interval in a frequency table is obtained by determining the sum of its frequency with the total frequencies of all its previous data or class interval.

What is frequency curve with example?

A Frequency Curve is a smooth curve which corresponds to the limiting case of a histogram computed for a frequency distribution of a continuous distribution as the number of data points becomes very large.

Do you mean by cumulative frequency?

Cumulative frequency is defined as a running total of frequencies. The frequency of an element in a set refers to how many of that element there are in the set. Cumulative frequency can also defined as the sum of all previous frequencies up to the current point.

What is the difference between frequency distribution and cumulative frequency distribution?

Frequencies table or frequency distribution is a method to represent raw data in the form from which one can easily understand the information contained in a raw data where as a table which plays the manner in which cumulative frequencies are distributed over various classes is called a cumulative frequency ...

How do you find Q1 and Q3?

Q1 is the median (the middle) of the lower half of the data, and Q3 is the median (the middle) of the upper half of the data. (3, 5, 7, 8, 9), | (11, 15, 16, 20, 21).

Do cumulative frequency graphs go through the origin?

Cumulative frequency graphs

l Plot the points using the upper class boundary e.g. (5, 2), (10, 11), (15, 20) and so on. with straight lines) and include the origin.
