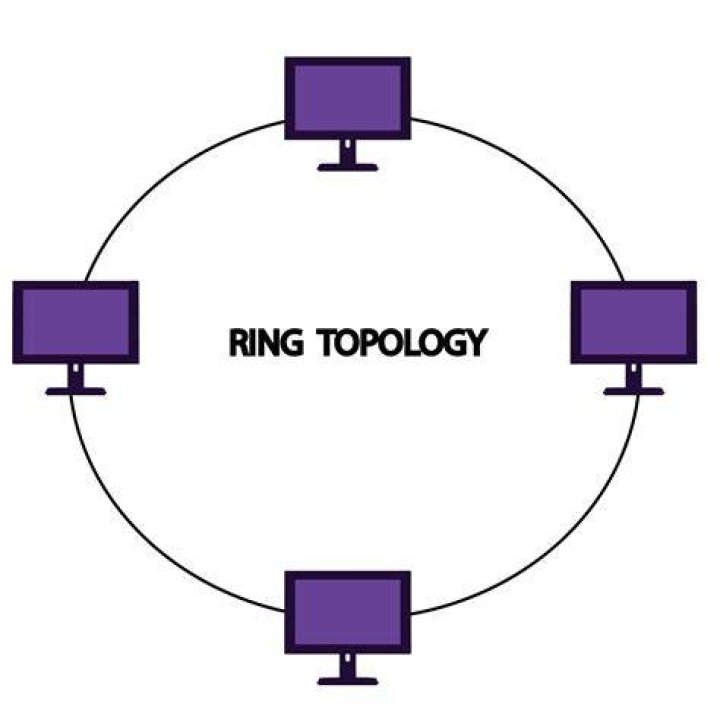

Ring Topology The ring topology is another type of logical topology in which all the nodes are connected in such a manner that they form a circular path. Every node in the circular path is connected to two nodes.

Which ring network uses a ring topology?

Ring topologies may be used in either LANs (local area networks) or WANs (wide area networks). Depending on the network card used in each computer of the ring topology, a coaxial cable or an RJ-45 network cable is used to connect computers together.

What are the types of logical topology?

Logical Topologies. The two logical topologies are broadcast (also known as bus) and sequential (also known as ring). In a broadcast topology, all devices on the network receive every message transmitted.

What is ring topology with example?

"Token Ring is an example of a ring topology." 802.5 (Token Ring) networks do not use a ring topology at layer 1. As explained above, IBM Token Ring (802.5) networks imitate a ring at layer 2 but use a physical star at layer 1. "Rings prevent collisions." The term "ring" only refers to the layout of the cables.

What is a common ring topology?

The most common ring network is IBM's Token Ring, which employs a “token” that is passed around the network to control which location has sending privileges. ... Star networks are common in larger commercial networks since a malfunction at any node generally does not disrupt the entire network.

Logical Topologies

Is ring topology point to point?

Ring Topology

It is a dedicated point-to-point connection where each node is connected with exactly two nodes, its previous node and its next node in the network. All messages travel through a ring in the same direction (either “clockwise” or “counterclockwise”) till the destination node receives it.

What are the characteristics of ring topology?

In a ring topology, each node has a dedicated point–to–point line configuration with the two nodes on either side of it. A signal is passed along the ring in one direction, from node to node, until it reaches its receiver. Each node in the ring is integrated as a repeater.

Where are ring topologies used?

Ring network topologies are used when a simple network is needed. They are suitable for locations that do not rely on very high data-transfer speeds, and where the network is unlikely to alter in size or structure. For example, a small office with only a few nodes may use a ring network topology.

What is the function of ring topology?

A ring topology is a topology for a Local Area Network (LAN) in which every device has exactly two neighbours for communication purposes. Typically, all messages travel through a ring in the same direction. A failure in any cable or device breaks the loop and will take down the entire segment.

What is a logical ring?

The ring topology is actually a logical ring, meaning that the data travels in circular fashion from one computer to another on the network.

Has a physical star topology but a logical ring topology?

FDDI uses both a logical and physical ring, but Token Ring is a logical ring topology that runs on a physical star, for example. If you see the word “ring” on the exam, check the context to see if it is referring to physical ring, logical ring, or both.

What is an example of logical topology?

Logical topologies are bound to the network protocols that direct how the data moves across a network. ... For example, twisted pair Ethernet is a logical bus topology in a physical star topology layout. While IBM's Token Ring is a logical ring topology, it is physically set up in a star topology.

What is ring topology class 8?

Ring Topology: In ring topology, each computer is connected to two other computers so as to form a closed ring-like structure (Fig. 1.7). In this topology, data is transmitted in one direction only.

What topology has no shape?

A ring. Because it has no end and no starting point like a bus arrangement.

Why is ring topology the best?

The uni-directional ring topology provides very high speed. It has better performance than bus topology, even when the nodes are increased. Ring network can handle high volume of nodes in a network (Robust). It can handle heavy traffic as compared to bus topology due to Token passing principal.

Is ring topology A fault tolerant?

Fault Tolerance.

This topology was not very fault tolerant as any piece of equipment on the bus could bring the network down. This could be a bad terminator or even in rare cases a motherboard shorted to a computer case.

What is the difference between star and ring topology?

The main difference between star and ring topology is that a star topology connects all the devices to a one central device forming a structure similar to a star while ring topology connects every device to another two devices forming a structure similar to a ring.

How star topology is better than ring topology?

Star Topology due to its simple structure is less complex as compared to Ring Topology. On other hand due to more complexity in nodes arrangement Ring Topology is considered as more complex. Star Topology is cost efficient as compared to Ring Topology.

What is a ring topology BBC Bitesize?

In a ring topology network each node is connected to two other devices . A ring for the signals to travel around is formed. Each packet of data on the network travels in one direction and each node receives each packet in turn until the destination node receives it.

Why is ring topology not common in practice?

Answer: Most ring topologies allow packets to travel only in one direction, called a unidirectional ring network. Others permit data to move in either direction, called bidirectional. The major disadvantage of a ring topology is that if any individual connection in the ring is broken, the entire network is affected.

How is ring topology implemented?

In-Ring topology, each device is connected with two devices and multiples of such formations are joined together to make a circular path and this network is called a ring network. In-ring topology data is passed from one device to the next device and so on until the data reaches the destination.

What is a characteristic of a logical point to point topology?

What is a characteristic of a logical point-to-point topology? The nodes are physically connected. The physical arrangement of the nodes is restricted. The media access control protocol can be very simple.

Why repeaters are used in ring topology?

Ring Topology may be a network configuration where device connections create a circular data path. ... A number of repeaters are used for Ring topology with a large number of nodes to send data and to prevent data loss repeaters are used in this network.

Which topology has the highest reliability?

• A. bus topology.
• star topology.
• ring topology.
• mesh topology.
