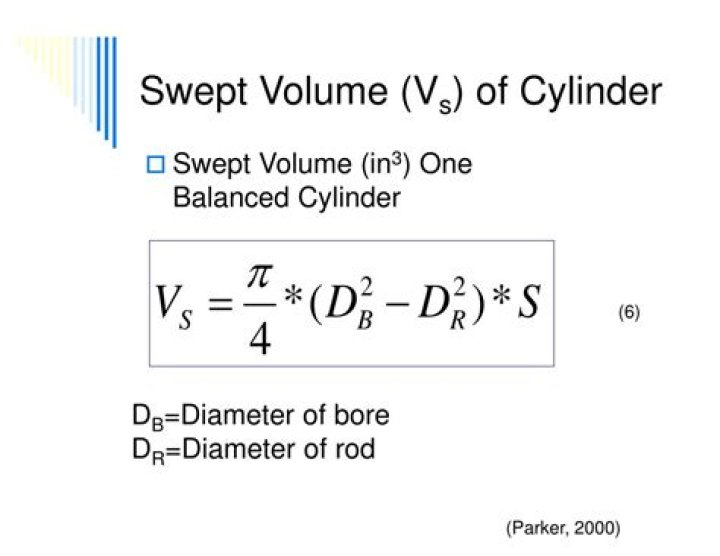

To work out the swept volume you need to know the diameter of the bore and the length of the stroke. For example; a bore has a diameter of 6 cm and the stroke is 10 cm, the swept volume is calculated using the following formula: Pi x radius x radius x stroke (the formula is expressed as: Πr² x stroke).

How do you calculate swept volume?

Swept Volume = pi*(bore/2)^2*stroke.

What is the swept volume?

Definition. Swept volume is the displacement of one cylinder. It is the volume between top dead center (TDC) and bottom dead center (BDC). As the piston travels from top to bottom, it "sweeps" its total volume. This measurement can be listed in cubic inches or cubic centimeters.

How do you calculate stroke volume in an engine?

Engine displacement is determined by calculating the engine cylinder bore area multiplied by the stroke of the crankshaft, and then multiplied by the number of cylinders. This will result in the overall volume of air displaced by the engine.

What is the formula for engine displacement?

The equation for calculating displacement is: Engine displacement = π/4 * bore² * stroke * number of cylinders. Displacement is usually measured in liters (L), cubic centimeters (CC), or cubic inches (CI).

Swept Volume

Can volume formula?

Round to the neatest cubic centimeter. The formula for the volume of a cylinder is V=Bh or V=πr2h . The radius of the cylinder is 8 cm and the height is 15 cm. Substitute 8 for r and 15 for h in the formula V=πr2h .

What is clearance volume in engine?

(b) The "Clearance volume" of the engine is the volume between the cylinder head and the piston when the piston is at tdc. The ratio of this volume to the swept volume determines the compression ratio of the engine.

What is clearance volume and swept volume?

Swept volume can be defined as the volume swept by the engine piston during one stroke. Swept volume is also the product of piston area and stroke. 2. Clearance Volume. Clearance volume can be defined as the volume that remains in the cylinder when the engine piston is in the top centre position.

How do you do stroke volume?

Stroke volume is the amount of blood ejected from the ventricle with each cardiac cycle. It can be readily calculated by subtracting the end-systolic volume from the end-diastolic volume. Multiplying the stroke volume by the heart rate yields the cardiac output, typically reported in liters per minute.

How do you calculate cubic capacity of an engine?

1. We can use the formula.
2. V = 3.14 × (B ÷ 2)2 × S.
3. V = Swept Volume of Piston.
4. B = Bore of the Cylinder.
5. S = Stroke of the.
6. Engine.
7. Then to find the total engine capacity.
8. Engine Capacity = V × N.

How do you calculate piston swept volume?

The swept volume is equal to the cylinder volume + clearance volume + piston volume + gasket volume + chamber volume.

What is swept volume and fad signify?

Answer: Define i) Free air delivered (FAD) – It is volume of air delivered under the condition of temperature and pressure existing at compressor intake, i.e. volume of air delivered at surrounding air temperature & pressure. ... iii) Swept volume – It is the volume of air taken during sanction stroke.

What is a swept volume in air compressor?

Swept Volume:- The volume displaced or swept by piston when it moves between top dead center and bottom dead center. Clearance volume:- it is the difference between the total volume and the swept volume, basically the gap that remains between the piston head and the cylinder head when at top dead center.

How do you calculate compression ratio with clearance volume?

Add the volume of the combustion chamber, the piston top volume, the gasket thickness, and the deck height or clearance. If you already have your swept volume calculated, you can plug the clearance volume value and the swept volume value into the formula "CR = (Vsw + Vcl) / Vcl" to find your engine's compression ratio.

What is the compression ratio of petrol engine?

Thus, engines designed to run high-octane fuel exclusively can achieve higher compression ratios (CRs). Most modern automobile petrol engines generally have a compression ratio of 10.0:1 to 13.5:1.

What is CC on engine?

The capacity of a motorcycle's engine is measured in terms of cubic capacity. Cubic capacity, also known as “cc" of vehicles, usually ranges between 50cc to 1500cc. ... The engine capacity is the space/ volume available inside the tank to accommodate the air-fuel mix for burning.

What is EDV and ESV?

The EDV is the filled volume of the ventricle prior to contraction and the ESV is the residual volume of blood remaining in the ventricle after ejection. In a typical heart, the EDV is about 120 mL of blood and the ESV about 50 mL of blood. The difference in these two volumes, 70 mL, represents the SV.

How do you calculate EDV and ESV?

EDV and ESV were calculated by summing all the plane volumes at end-diastole and end-systole, respectively. Stroke volume (SV) = EDV - ESV. EF = SV/EDV. Interobserver variability is 1.1% for EDV and 1.8% for ESV using this technique (4).

What is TDC?

Top dead center, sometimes referred to as TDC, is the point in which the piston in the number one cylinder position of your engine is at its highest point on the compression stroke.

What is induced volume?

Radiation-induced volume changes in crystalline phases can result from the accumulation of point defects in the crystalline structure, solid-state phase transformations (e.g., amorphization), and the evolution of microstructural defects (e.g., dislocation loops, voids, colloids, gas bubbles, and microcracks).

How do you calculate BDC and TDC?

The compression ratio is calculated by measuring the volume of the cylinder volume at BDC and then dividing this volume by the cylinder volume measured at TDC, see Figure 2. Figure 2 - Compression ratio is the volume of a cylinder with the piston at BDC divided by its volume with the piston at TDC or A divided by B.

How do you calculate engine clearance volume?

Because of the irregular shape of the combustion chamber (volume in the head) the clearance volume is calculated empirically by filling the chamber with a measured amount of fluid while the piston is at TDC. This volume is then added to the displacement volume in the cylinder to obtain the cylinders total volume.

What is clearance volume in mechanical engineering?

The clearance volume is the volume remaining above the piston of an engine when it reaches top dead center. The maximum compression pressure in the piston is controlled by the clearance volume.

Is the ratio between total volume and clearance volume?

Therefore, the compression ratio is the ratio of Total volume to clearance volume, and the correct option is (C).
