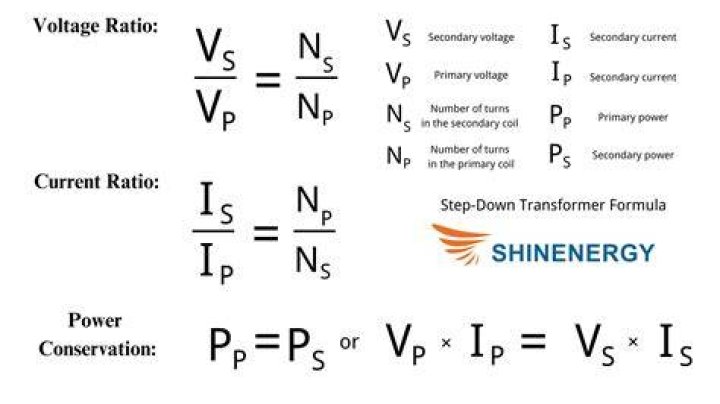

Step Down Transformer Equation Ns = number of turns in secondary. Np = number of turns in primary. Vs = Voltage in secondary. Vp = Voltage in primary.

How do you calculate step-up and step down transformer?

Point to Remember

It depends on how it is connected in the circuit. If the input supply is supplied on the low-voltage winding, it becomes a step-up transformer. On the other hand, if the input power is supplied on the high voltage winding, the transformer becomes a step-down transformer.

How do you size a step down transformer?

Calculate an example as follows. A 120-volt motor has a load amperage of 5 amps. Multiply 120 volts times 5 amps this equals 600VA now lets multiply the 125 percent start factor. Take 600 times 1.25 this equals 720VA and most transformers are sized by a factor of 25VA or 50VA.

How do you calculate transformer size?

Since you know kVA = V * l / 1,000, we can solve for V to get V = kVA * 1,000 / l. So you'll multiply your kVA rating by 1,000 and then divide by the amperage. If your transformer has a kVA rating of 75 and your amperage is 312.5, you'll plug those numbers into the equation — 75 * 1,000 / 312.5 = 240 volts.

How do you calculate current in a step up transformer?

Using this formula, P = E x I, and its direct derivatives, I = P / E and E = P / I, all transformer attributes can be calculated. For example, if the transformer's rating is 10 KVA and has a 240-volt output, it has a current capacity of 41.67 amperes (10,000 watts / 240 volts = 41.67 amps).

step up step down transformer calculations

What is step up step down transformer?

What is Step-up and Step-down Transformers. ... A transformer that increases the voltage from primary to secondary (more secondary winding turns than primary winding turns) is called a step-up transformer. Conversely, a transformer designed to do just the opposite is called a step-down transformer.

How do you make a step down transformer?

1. Video Interpretation. ...
2. Core Area: 1.152 x √(output voltage x output current) sq cm. ...
3. Turns per volt = 1/ (4.44 x 10^-4 frequency x core area x flux density) ...
4. Primary Current = Sum of o/p Volt and o/p Amp divided by Primary Volts x efficiency. ...
5. Primary Turns = Turns per Volt x Primary Volts.

How do you step down AC voltage?

1. Obtain a transformer that converts 120 vac to 10 vac.
2. Use a second transformer to convert 20 vac to 10 vac.
3. Convert to DC and use an oscillator to generate 10 vac.
4. Install a series resistor equal to the load impedance, so half the voltage is across the resistor and half across the load.

What is the turns ratio of step down transformer?

The voltage turn ratio of the step-down transformer is 2:1. The voltage turn ratio determines the magnitude of voltage transforms from primary to secondary windings of the transformer. Step-down transformer is made up of two or more coil wound on the iron core of the transformer.

What is the EMF equation of a transformer?

Therefore, RMS value of emf per turn = 1.11 x 4f Φ_m = 4.44f Φ_m. This is called the emf equation of transformer, which shows, emf / number of turns is same for both primary and secondary winding. For an ideal transformer on no load, E₁ = V₁ and E₂ = V₂ .

What is step up and step down transformer 12?

In step-up transformers, voltage is increased and current strength is decreased whereas in step-down transformers, voltage is decreased and the current strength is increased.

What is the example of step down transformer?

Applications of Step Down Transformer

It is used in the main adapters and chargers for cell phones, CD players and stereos. It can be used to step down the voltage level in transmission line. In welding machines it is used in reducing voltage and increasing current.

What is the efficiency of step down transformer?

A step-down transformer reduces the voltage of a transmission line from 2200V to 220V. The power delivered by it is 880W and its efficiency is 88%.

Why do we step down voltage?

Increased voltage allows decreased current which dramatically reduces power loss. Once the power completes its journey, we decrease its voltage at a step-down transformer to make it safer and more useable in the neighborhood.

How do you calculate transformer turns ratio?

Transformer Turns Ratio Formula

The number of turns on the primary winding divided by the number of turns on the secondary coil is the transformer turns ratio.

What is turn ratio of transformer formula?

The transformer turns ratio is the number of turns of the primary winding divided by the number of turns of the secondary coil. The transformer turns ratio provides the expected operation of the transformer and the corresponding voltage required on the secondary winding.

How can we step down AC voltage without transformer?

The only way to step down voltage without a transformer, is to add resistance to the circuit, whether that is by adding more length to the feeder, which would increase voltage drop,or by adding a resistor in the circuit. Either way, you are adding resistance, but with the resistor, you dont need more wire.

How does a capacitor step down AC voltage?

The conventional method is the use of a step-down transformer to reduce the 230 V AC to a desired level of low voltage AC. The most simple, space saving and low cost method is the use of a Voltage Dropping Capacitor in series with the phase line.

Can I use a resistor to lower ac voltage?

This type of circuit is called a voltage divider, and is a common way to reduce voltage in a circuit. When the two resistors in the voltage divider are of the same value, the voltage is cut in half. ... You could use a pair of resistors of equal value across the battery leads to provide the necessary 4.5 V.
