Use the formula: Length (feet) = 234 / Frequency(MHz). For example, if you intend to operate on 27.5 Megahertz: (in the CB-Radio Citizens Band) 234 / 27.5 = 8.5 feet (rounded to nearest 0.1 foot). Your 27.5 MHz quarter wavelength wire monopole CB antenna needs to be 8.5 feet in length.

What is the length of monopole antenna?

Therefore the length of the antenna is determined by the wavelength of the radio waves it is used with. The most common form is the quarter-wave monopole, in which the antenna is approximately one quarter of the wavelength of the radio waves.

What is the gain of monopole antenna?

The vertical dipole—or its electromagnetic equivalent, the monopole—could be considered one of the best antennas for LMR applications. It is omnidirectional (in azimuth) and, if it is a half-wavelength long, has a gain of 1.64 (or G = 2.15 dBi) in the horizontal plane.

What is the impedance of monopole antenna?

The only change that needs to be noted is that the impedance of a monopole antenna is one half of that of a full dipole antenna. For a quarter-wave monopole (L=0.25* ), the impedance is half of that of a half-wave dipole, so Zin = 36.5 + j21. 25 Ohms.

How do you calculate monopole?

Use the formula: Length (feet) = 234 / Frequency (MHz). For example, if you intend to operate on 14.2 Megahertz (in the 20-Meter amateur radio band): 234 / 14.2 = 16.5 feet (rounded to nearest 0.1 foot). Your 14.2 MHz quarter wavelength wire monopole ham radio antenna needs to be 16.5 feet in length.

Monopole Antenna, Imaginary Ground of Monopole in Antenna & Wave Propagation Engineering Funda

What is monopole and dipole?

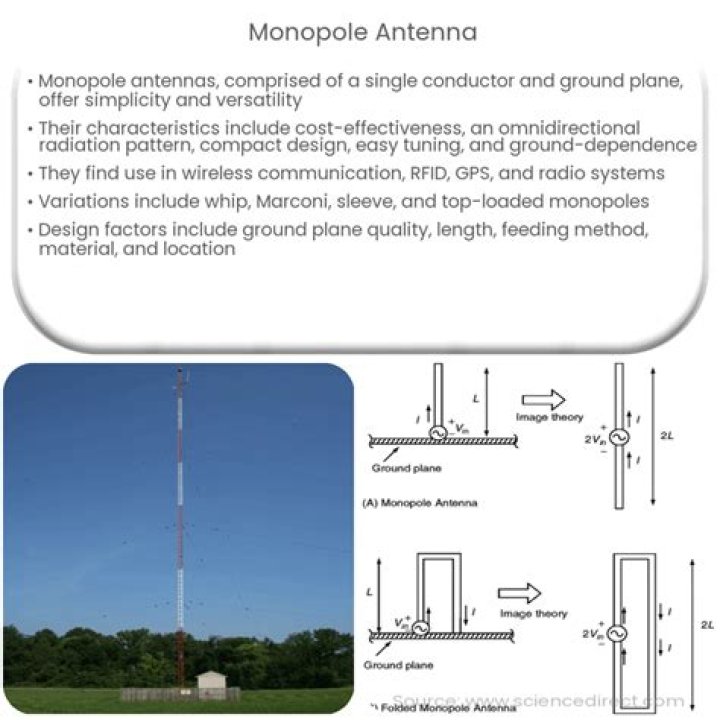

A dipole is a symmetrical device with two identical halves The equivalent monopole comprises one of the halves positioned over a groundplane such that its image in the groundplane replaces the second half.

What is a Phase 8 monopole?

Phase 8 5G Monopole: Unilateral 5G, dual operator 4G

In this case, Three have 5G deployed on the top stack Massive MIMO units with Three 3G+4G and EE 2G+3G+4G on the passive antennas below. Three is Huawei 4G and 5G with EE being Nokia for all their technologies, this site having recently been swapped from Huawei.

Which kind of polarization is provided by helical antennas?

Helical antenna is a broadband VHF and UHF antenna used to provide circular polarization.

What is monopole tower?

Monopole Tower is a kind of tower that consists of one stem or one pole anchored to the ground. ... Tapered-pole is a kind of monopole having a varied cross-section diameter size that when the used diameter is more up will be smaller.

What are the applications of monopole antenna?

Applications – Cellular and cordless telephones, walkie-talkies, CB radios, etc. As Ground Plane Radius R increases, the gain maxima shifts towards lower resonance frequency. Gain and radiation pattern of a monopole antenna on small ground plane (< λ) are similar to that of dipole antenna.

Which of the following polarization is used in monopole antenna?

Which of the following polarization is used in monopole antenna? Explanation: The linear polarization takes place in the monopole dipole.

Is a whip antenna a monopole?

The whip antenna is a monopole antenna, and like a vertical dipole has an omnidirectional radiation pattern, radiating equal radio power in all azimuthal directions (perpendicular to the antenna's axis), with the radiated power falling off with elevation angle to zero on the antenna's axis.

How do you increase the gain of a microstrip patch antenna?

5. Conclusion. A unidirectional and low profile microstrip patch antenna of 0.069 has been introduced. Using a second layer of FR-4, which is coated with copper, reduced the back lobe and enhanced the gain up to 5.4 dB as well as increased the directivity up to 7.74 dBi with F/B ratio of 9.5 dB.

What does a monopole do?

Passing a magnetic monopole through a coil of wire induces a net current in the coil. This is not the case for a magnetic dipole or higher order magnetic pole, for which the net induced current is zero, and hence the effect can be used as an unambiguous test for the presence of magnetic monopoles.

What is the difference between monopole and microstrip antenna?

Monopole antennas generally used at low frequency while microstrip antennas used at microwave frequency. In the micro strip mono-pole antenna, patch shape and size similar to a pole, rather then in case Microstrip patch antenna in general patch are rectangular, circular and different shapes.

What is the radiation resistance of the λ 4 monopole antenna?

Explanation: Since radiation resistance of quarter-wave monopole (l=λ/4) is 36.56Ω, then for a half-wave dipole (l=λ/2) it is given by 36.56×2 = 73.12Ω.

Which are the basic parameters need to design any monopole?

A typical monopole is about 1/4 of a wavelength. Usually, around 0.95 - 0.98 of the latter value gives a good match (i.e. the length should be around 0.95 * 3e8 / frequency). The exact value of the coefficient 0.95 will depend on the thickness of the wire used for the monopole etc.

What is monopole moment and dipole moment?

The first (the zeroth-order) term in the expansion is called the monopole moment, the second (the first-order) term is called the dipole moment, the third (the second-order) is called the quadrupole moment, the fourth (third-order) term is called the octupole moment, and the fifth (fourth-order) term is called the ...

How do you calculate antenna length?

The 492/f formula is for an ideal antenna in free space, the 468/f is an estimate for real antennas at a reasonable height over ground. This gives the length of a full wavelength in meters. This formula is correct if the conductor is infinitely thin and other objects are infinitely far away from the antenna.
